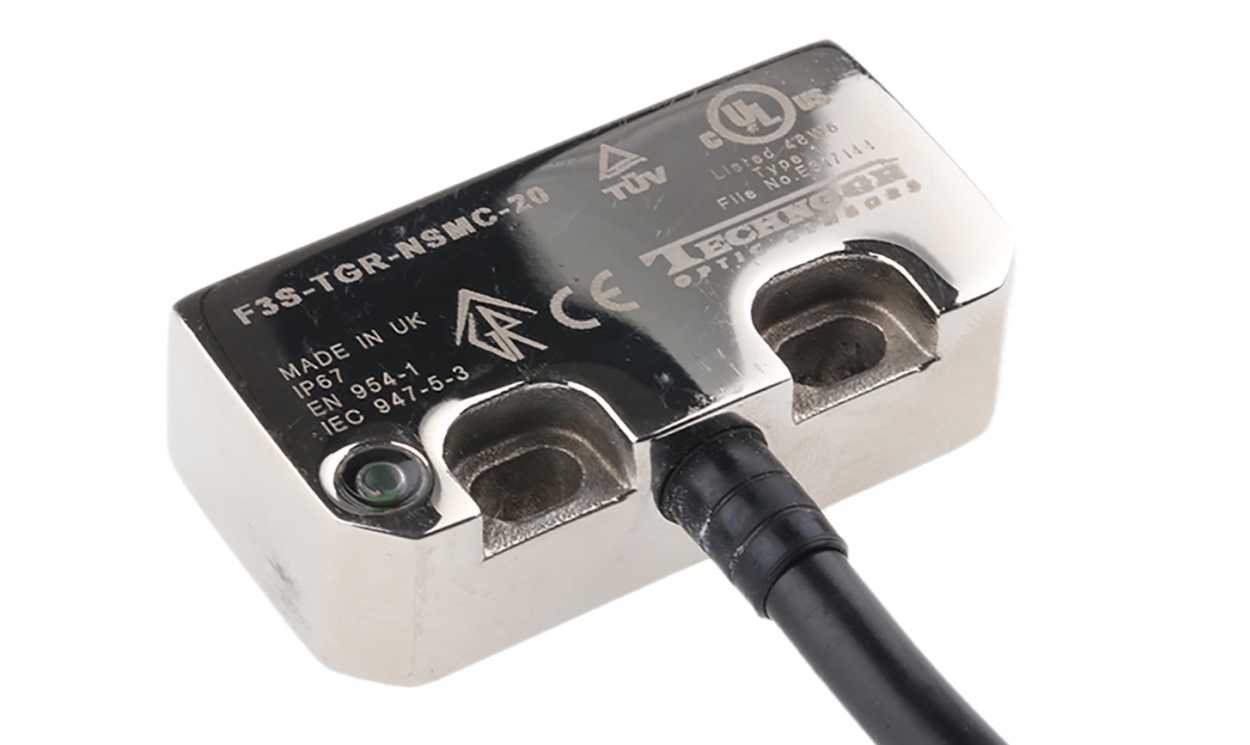

Name: Omron F3S-TGR-NSMC-20-05, F3S-TGR-N_C Series Magnetic Non-Contact Safety Switch, 24V dc, Stainless Steel Housing, NO/2NC, 5m Cable
Brand: OMRON
SKU: F3S-TGR-NSMC-20-05
Availability: OutOfStock

Omron F3S-TGR-NSMC-20-05, F3S-TGR-N_C Series Magnetic Non-Contact Safety Switch, 24V dc, Stainless Steel Housing, NO/2NC, 5m Cable

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron F3S-TGR-NSMC-20-05, F3S-TGR-N_C Series Magnetic Non-Contact Safety Switch, 24V dc, Stainless Steel Housing, NO/2NC, 5m Cable

Part Number : F3S-TGR-NSMC-20-05

Availability: Sold out

Detailed Description
Specifications
Downloads

F3S-TGR Non Contact Safety Switch

The F3S-TGR non contact safety switches are designed to interlock hinge, sliding or removable guard doors. Plastic and stainless steel switches are available, the latter are ideally suited to high hygiene demands in the food industry. The switches have a long sensing range to avoid false signals resulting from an ill aligned door, for example.

Non-contact equals no abrasion which means no particles
Excellent coverage of mechanical tolerances
Can operate behind stainless steel fittings
Screw hole covers

F3S-TGR-N_C Switch

Connect up to 3 switches in series
LED for easy diagnosis
Electronic output (potential-free optocoupler output)
IP67 protection

F3S-TGR-N_R Switch

Connect up to 6 switches in series
Reed contacts
IP67 protection

Note

Models F3S-TGR-N_C are coded.
Actuator is included.
For suitable controller see the G9SA or G9SB from Omron, or the NE1A DeviceNet system.

Standards

EN standards certified by TÜV Rheinland, EN 954-1, EN ISO 13849-1, EN 60204-1, EN/IEC 60947-5-3, UL 508, CSA C22.2, BS 5304, EN 1088-1 conformance.

Omron F3S-TGR-N_C Series Non-Contact Safety Switch, 24V Supply Voltage, 17mm Switching Distance - F3S-TGR-NSMC-20-05

This non-contact safety switch is designed specifically for monitoring the status of guarding doors in industrial settings. Featuring a sturdy stainless steel housing, it meets high hygiene demands, making it ideal for environments such as the food industry. The switch operates on a supply voltage of 24V DC and is equipped with a 5m cable, ensuring versatile installation options.

Features & Benefits

• Non-contact mechanism eliminates abrasion and particle generation
• LED indicator simplifies diagnostics during operation
• Connect up to three switches in series for flexible configurations
• Complies with safety categories up to PLe according to EN ISO 13849-1
• Coded actuator provides enhanced safety and detection accuracy
• IP69K rating ensures protection in high-pressure and high-temperature environments

Applications

• Ideal for safeguarding access to industrial machinery
• Utilised in automation systems requiring reliable door monitoring
• Suitable for installation behind stainless steel fittings
• Effective in environments with stringent hygiene requirements

How does the non-contact feature enhance performance in busy environments?

The non-contact design prevents wear and tear that can lead to failures over time, ensuring consistent performance even in high-use applications where physical contact would typically cause deterioration.

What types of connections can be used with this device?

The safety switch is equipped with a 5m cable and can be easily integrated into existing wiring systems. It is compatible with all Omron safety controllers for seamless operation.

What is the maximum distance for switch activation and how does it affect its installation?

The switching distance is 17mm, which allows for installation flexibility and accurate monitoring of door status without requiring direct contact, making it suitable for various configuration needs.

What ensures this safety switch operates reliably in harsh conditions?

The IP69K rating indicates resistance to dust and water ingress, allowing it to function effectively in high-pressure and high-temperature environments, ensuring durability and reliability.

How does the coded actuator contribute to safety?

The coded actuator enhances security by ensuring that only compatible actuators will activate the switch, reducing the risk of accidental operation and increasing overall safety in industrial applications.

Brand	Omron
Supply Voltage	24V dc
Safety Contacts	NO/2NC
Housing Material	Stainless Steel
Connection Type	5m Cable
Switch Type	Non Contact
Actuator Type	Coded
Sensor Principle	Magnetic
Safety Category	4
Actuator Included	Yes
Switching Distance	17 mm
Series	F3S-TGR-N_C
IP Rating	IP69K
Depth	13mm
Width	25.5mm
Length	50mm
Number of Approach Directions	2
