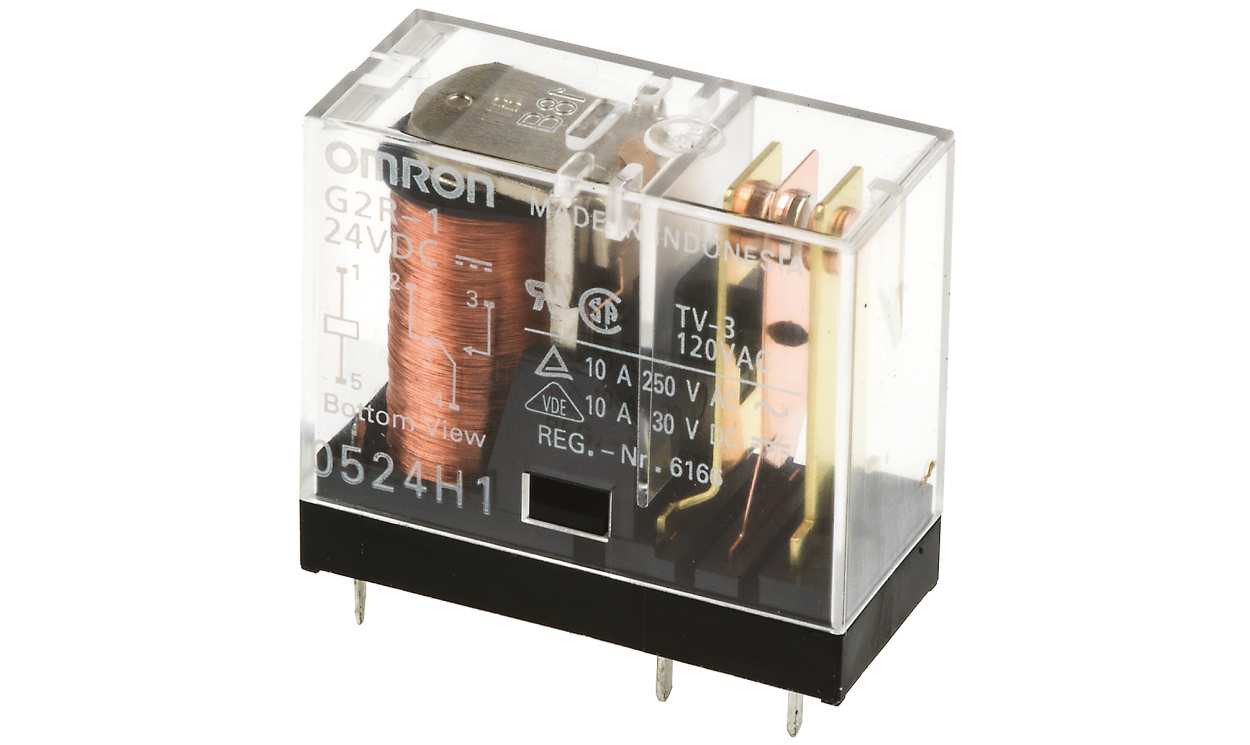

Omron G2R-1 DC24, PCB Mount Power Relay, 24V dc Coil, 10A Switching Current, SPDT
Part Number : G2R-1 DC24
For pricing, please contact our experts.
G2R Series
General purpose PCB power relay used in various domestic and commercial applications
8mm creepage/clearance
H25.5 x W13 x D29 mm
8mm creepage/clearance
H25.5 x W13 x D29 mm
Approvals
UL508; CSA22.2; EN 61810-1; SEV; SEMKO
G2R-1 24DC General Purpose PCB Non-Latching Power Relay.
The Omron G2R-1 24DC general purpose standard power relay is a single pole PCB terminal relay with an excellent safety design and dielectric strength 5000 V between the coil and contacts. This general purpose relay also provides a surge resistance of 10000 V plus is RoHS compliant.
Features and Benefits G2R-1 24DC Standard Non-Latching Relay.
• PCB Terminal.
• Standard relay.
• Flux protection.
• SPDT AC/DC Contacts.
• 1 Pole NO/NC (normally open/normally closed).
• Standard relay.
• Flux protection.
• SPDT AC/DC Contacts.
• 1 Pole NO/NC (normally open/normally closed).
Coil Ratings.
• Rated voltage 24 V dc.
• Rated current 21.8 mA.
• Coil resistance 1100 Ω.
• Must operate voltage 70% max.
• Must release voltage 15% minimum.
• Maximum voltage 170% at 23°C.
• Rated current 21.8 mA.
• Coil resistance 1100 Ω.
• Must operate voltage 70% max.
• Must release voltage 15% minimum.
• Maximum voltage 170% at 23°C.
Standard Relay.
• Contact resistance 30 mΩ max.
• Operate time 15 ms max.
• Release time DC – 5 ms max.
• Vibration resistance – destruction 10 to 55 to 10 Hz (0.75 mm single amplitude) (1.5 mm double amplitude).
• Vibration resistance – malfunction 10 to 55 to 10 Hz (0.75 mm single amplitude) (1.5 mm double amplitude).
• Shock resistance – destruction 1000 m/s².
• Shock resistance – malfunction 200 m/s² (energised) 100 m/s² (not energised).
• Operating temperature -40°C to 70°C (no icing).
• Weight 17 g (approx).
• Operate time 15 ms max.
• Release time DC – 5 ms max.
• Vibration resistance – destruction 10 to 55 to 10 Hz (0.75 mm single amplitude) (1.5 mm double amplitude).
• Vibration resistance – malfunction 10 to 55 to 10 Hz (0.75 mm single amplitude) (1.5 mm double amplitude).
• Shock resistance – destruction 1000 m/s².
• Shock resistance – malfunction 200 m/s² (energised) 100 m/s² (not energised).
• Operating temperature -40°C to 70°C (no icing).
• Weight 17 g (approx).
