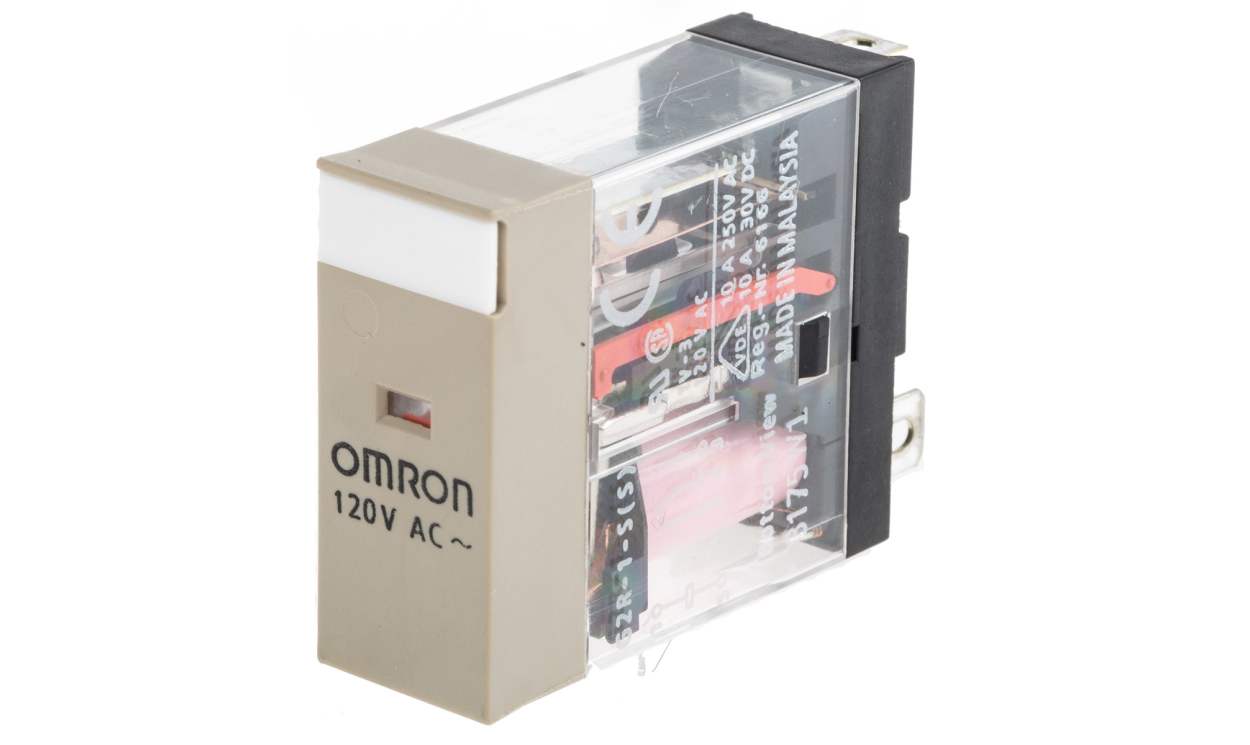

Name: Omron G2R-1-S 120VAC (S), Plug-In Mount Relay, 120V ac Coil, 10A Switching Current, SPDT
Brand: OMRON
SKU: G2R-1-S 120VAC (S)
Availability: OutOfStock

Omron G2R-1-S 120VAC (S), Plug-In Mount Relay, 120V ac Coil, 10A Switching Current, SPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G2R-1-S 120VAC (S), Plug-In Mount Relay, 120V ac Coil, 10A Switching Current, SPDT

Part Number : G2R-1-S 120VAC (S)

Availability: Sold out

Detailed Description
Specifications

Omron G2R Series Relay, 29mm Length, Plug-In Mount - G2R-1-S-AC120(S)

This high-performance relay is designed for power applications. Featuring a coil voltage of 120V AC and an SPDT configuration, it plays a crucial role in various electrical systems, ensuring efficient control and switching operations. Its dependability makes it a sought-after component in automation and electrical industries.

Features & Benefits

• Plug-in terminal type simplifies installation and maintenance
• Mechanical operation indicator provides clear feedback
• Built-in self-diagnostic feature enables quick fault detection
• Operating temperature range from -40°C to +70°C ensures longevity

Applications

• Utilised in automation equipment for effective power control
• Suitable for HVAC systems for dependable operation
• Integrated into industrial machinery for improved switching performance
• Compatible with various sockets for flexible installation options

What is the maximum voltage that can be applied to the coil?

The maximum voltage applicable to the relay coil is 240V AC, compatible with multiple electrical applications.

How does the relay perform under varying temperatures?

This relay functions efficiently within a temperature range of -40°C to +70°C, making it appropriate for various environmental conditions.

What is the expected lifespan of this relay?

The relay is rated for 100,000 electrical operations and 10,000,000 mechanical operations, offering substantial longevity under typical conditions.

Brand	Omron
Coil Voltage	120V ac
Contact Configuration	SPDT
Mounting Type	Plug-In Mount
Switching Current	10A
Number of Poles	1
Series	G2R
Latching	No
Terminal Type	Plug In
Maximum Switching Voltage AC	440V ac
Maximum Switching Voltage DC	125V dc
Length	29mm
Coil Resistance	7.286 kO
Coil Power	900mW
Minimum Operating Temperature	-40°C
Height	25.5mm
Isolation Coil To Contact	5kV ac
Depth	13mm
Life	100000 (Electrical) Operations, 10000000 (Mechanical) Operations
Maximum Operating Temperature	+70°C
