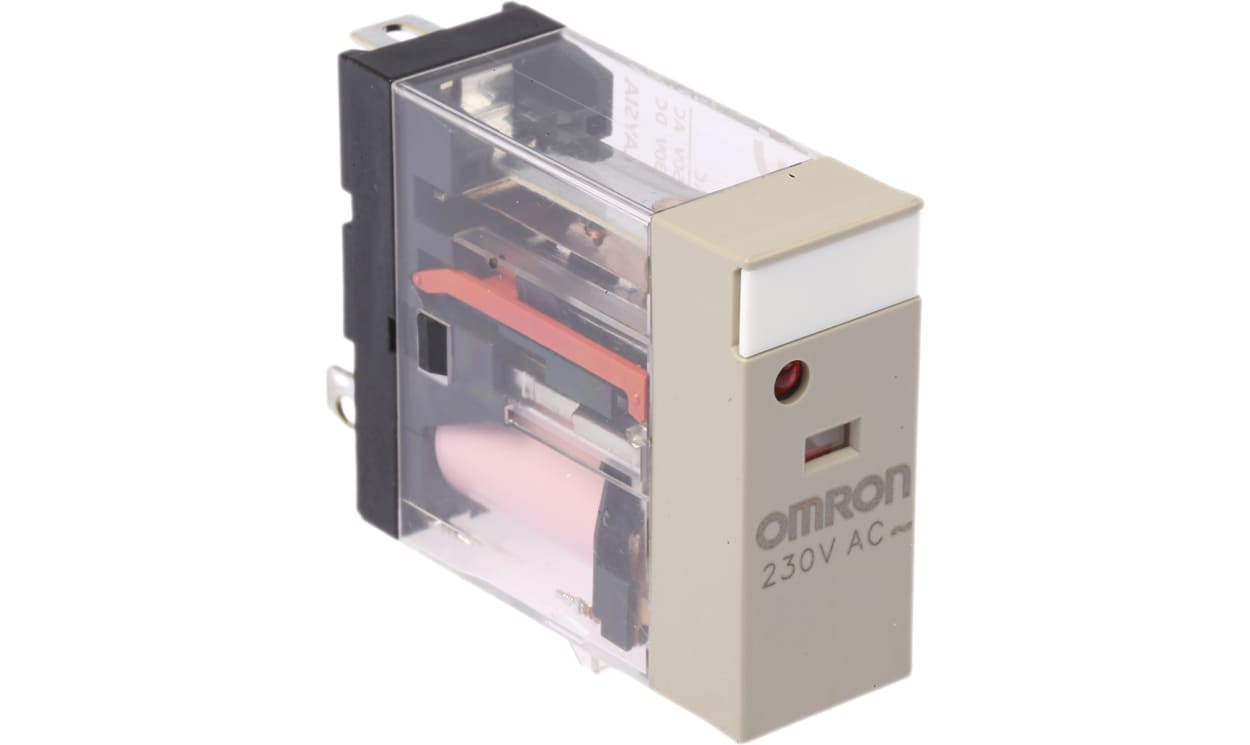

Omron G2R-1-SN 230VAC (S), Plug In Power Relay, 230V ac Coil, 10A Switching Current, SPDT
Part Number : G2R-1-SN 230VAC (S)
Relay, plug-in, 5-pin, SPDT, 10 A, mech & LED indicators, label facility
For pricing, please contact our experts.
G2RS Series Non-Latching Relay
Omron G2RS Series industrial plug-in relays are compact, electromechanical space saving relays. The relays are ideal for you to use in various general purpose applications.
Features & Benefits
Integral Coil status LED and mechanical operation indicator
Cadmium and lead free
Contact resistance: 100 mΩ
Coil to contact isolation: 5000 V ac
Operating temperature range: -40 → + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately
Cadmium and lead free
Contact resistance: 100 mΩ
Coil to contact isolation: 5000 V ac
Operating temperature range: -40 → + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately
Product Application Information
Medical Health Care Profession
Lifts and Elevators
Gas and electric boilers
Domestic Appliances
Lifts and Elevators
Gas and electric boilers
Domestic Appliances
Note
Can be used as a replacement for earlier version of G2R-SN series, check height clearance.
Approvals
UL, CSA, VDE
OMRON Power Relay, 5-Pin Connector Type, 2.5kVA Maximum Switching Power - G2RS Series - G2R-1-SN AC230(S)
For machinery that operates like clockwork, plug in this OMRON power relay. It uses electromagnetic signals to open and close its contacts, giving you hassle-free control over gear in signalling and power distribution systems. As it handles up to 1800 operations an hour, the device keeps pace with busy switching processes. There's no complicated wiring to worry about, as the component slots straight into a mounted socket (111-3066). With this relay's easy-to-read LED and mechanical indicators, checking its switch status is quick and simple.
Features & Benefits
• Service life of at least 100,000 electrical cycles, so you get long-lasting control
• Silver alloy contacts provide effective corrosion resistance
• Handy nameplate for quick labelling and convenient identification
• Robust plastic insulation is reliably durable
• Power usage of up to 0.9VA, minimising energy loss and ensuring efficient running
• Silver alloy contacts provide effective corrosion resistance
• Handy nameplate for quick labelling and convenient identification
• Robust plastic insulation is reliably durable
• Power usage of up to 0.9VA, minimising energy loss and ensuring efficient running
Applications
• Data and control centres
• Residential buildings
• Oil and gas industries
• Residential buildings
• Oil and gas industries
Can this relay handle power faults?
Yes, the unit comes with a self-diagnostic function that automatically disconnects its coil when electrical issues crop up. This cuts the risk of damage caused by faults.
Approvals
VDE; TUV; UL; CSA; SEMKO; IMQ
