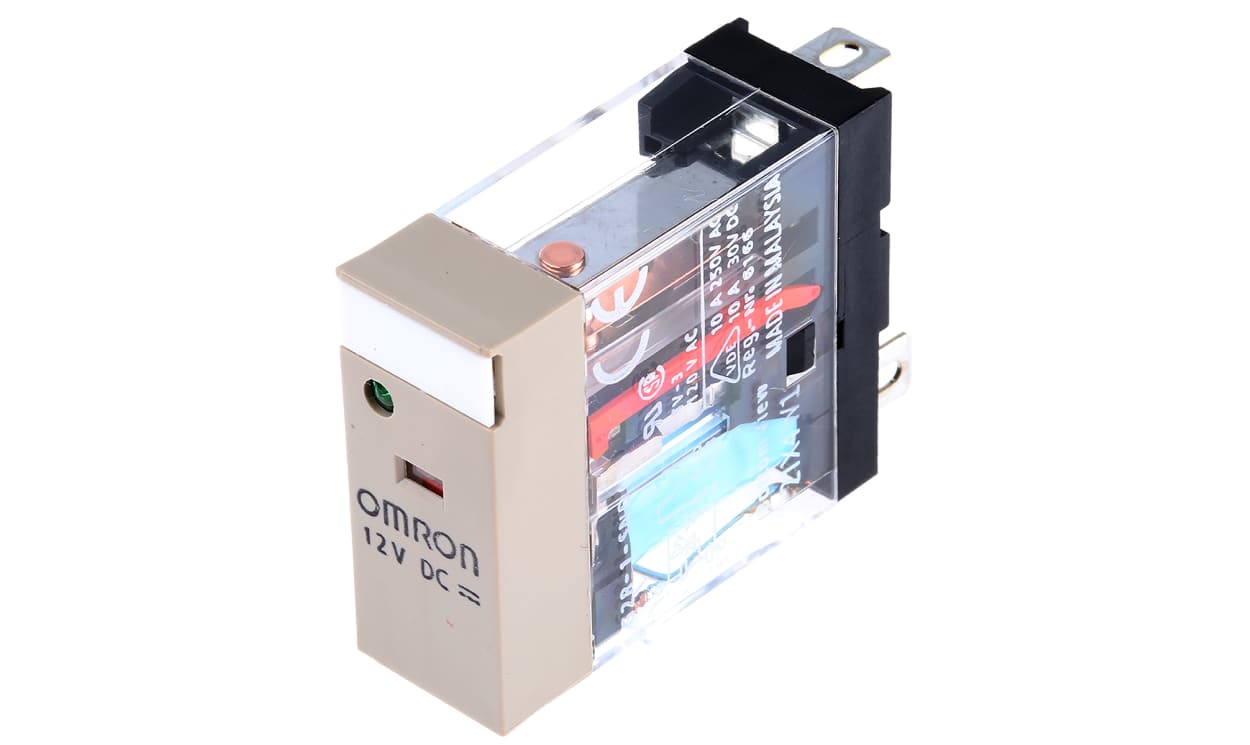

Name: Omron G2R-1-SND 12VDC (S), Plug In Power Relay, 12V dc Coil, 10A Switching Current, SPDT
Brand: OMRON
SKU: G2R-1-SND 12VDC (S)
Availability: OutOfStock

Omron G2R-1-SND 12VDC (S), Plug In Power Relay, 12V dc Coil, 10A Switching Current, SPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G2R-1-SND 12VDC (S), Plug In Power Relay, 12V dc Coil, 10A Switching Current, SPDT

Part Number : G2R-1-SND 12VDC (S)

Availability: Sold out

Detailed Description
Specifications

Omron G2R Series Power Relay, SPDT Contact Configuration, 10A Switching Current - G2R-1-SND DC12(S)

This power relay is intended for various automation and control tasks, delivering consistent performance in challenging environments. It operates at a coil voltage of 12V DC, providing essential switching functionality for professionals in the fields of electronics and electrical systems. Its capability to manage high loads efficiently makes it an important component in industrial contexts.

Features & Benefits

• SPDT configuration enables flexible circuit management
• Plug-in terminal type facilitates easy installation and replacement
• Supports switching currents of up to 10A for consistent operation
• Wide switching voltage range of 440V AC and 125V DC
• Compact dimensions allow for straightforward integration into different systems

Applications

• Utilised in automation systems that require dependable switching
• Suitable for controlling motors and industrial equipment
• Effective for lighting management in various electrical setups
• Employed in HVAC systems for efficient operation and regulation

How can I ensure proper installation of the relay?

Ensure that the terminal connections are secure and follow the provided wiring diagram for accurate setup.

Is it compatible with different types of loads?

Yes, it can handle both AC and DC loads within the specified voltage and current ratings.

What precautions should I take while operating it?

Avoid operating outside the specified temperature range and ensure that the switching current does not exceed 10A.

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	SPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	1
Latching	No
Series	G2R
Terminal Type	Plug In
Maximum Switching Voltage AC	440V
Maximum Switching Voltage DC	125V
Maximum Switching Current AC	10 A
Maximum Switching Current DC	10 A
Length	29mm
Coil Resistance	278 O
Coil Power	530mW
Height	35.5mm
Standards Met	CE, CSA
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+70°C
