Omron G2R-1-SND 24VDC (S), Plug In Power Relay, 24V dc Coil, 6A Switching Current, SPDT

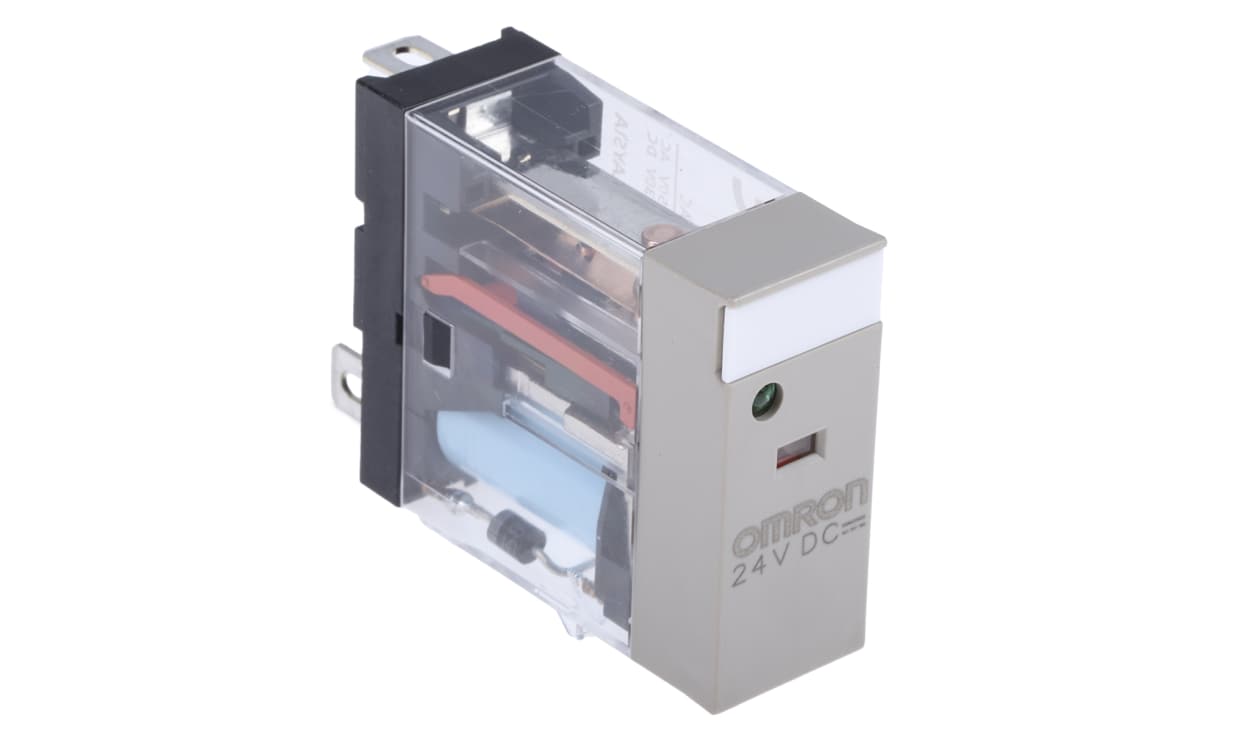

Name: Omron G2R-1-SND 24VDC (S), Plug In Power Relay, 24V dc Coil, 6A Switching Current, SPDT
Brand: OMRON
SKU: G2R-1-SND 24VDC (S)
Availability: OutOfStock

Part Number : G2R-1-SND 24VDC (S)

Relay, plug-in, 5-pin, SPDT, 10 A, mech & LED indicators, coil suppressor, label facility

Availability: Sold out

Detailed Description
Specifications
Features

Omron G2R Series Power Relay, Plug-in Mounting, SPDT - G2R-1-SND DC24(S)

This power relay by Omron is designed for PLC applications. The relay offers a contact configuration of SPDT with silver alloy contacts. It boasts a high switching power with a coil voltage of 24V DC.

Features & Benefits

• Plug-in design for easy installation and space-saving benefits
• SPDT contact configuration for versatility
• Silver alloy contacts for enhanced conductivity
• High switching power suitable for industrial use
• Mechanical and electrical durability for long-lasting performance

Applications

• PLC • Control panels for machinery

Can it be used for PLC applications?

Yes, this power relay is specifically designed for PLC applications, ensuring reliable performance.

Will it require additional components for installation?

No, it features a plug-in design for easy installation without the need for extra components.

Is it suitable for high-power switching applications?

Yes, this power relay offers a high switching power, making it ideal for various industrial applications.

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	SPDT
Mounting Type	Plug In
Switching Current	6A
Number of Poles	1
Latching	No
Series	G2R
Terminal Type	Plug In
Maximum Switching Voltage AC	440V ac
Maximum Switching Voltage DC	125V dc
Length	30.5mm
Coil Resistance	1.113 kΩ
Coil Power	300mW
Height	5.2mm
Maximum Operating Temperature	+70°C
Contact Material	Silver Alloy
Standards Met	CE
Minimum Operating Temperature	-40°C
Isolation Coil To Contact	4kV ac

Relay, plug-in, 5-pin, SPDT, 10 A, mech & LED indicators, coil suppressor, label facility
