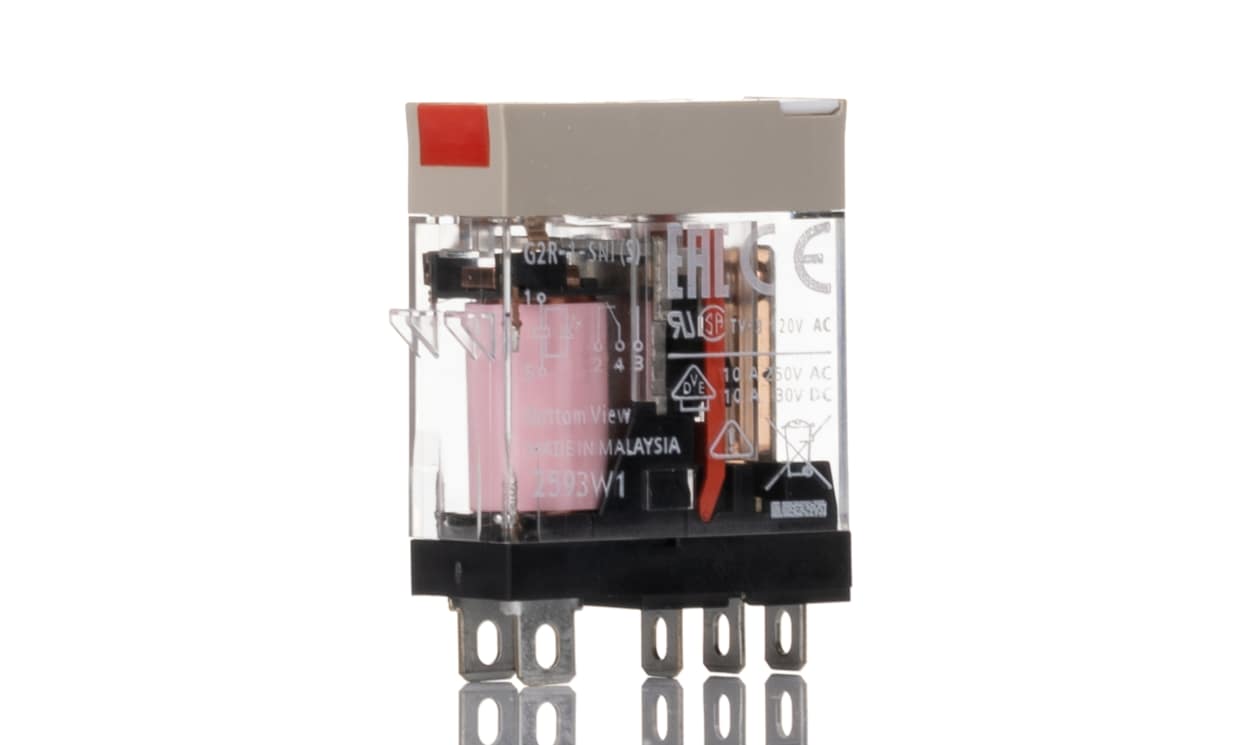

Omron G2R-1-SNI 230VAC (S), Plug In Power Relay, 230V ac Coil, 10A Switching Current, SPDT

Name: Omron G2R-1-SNI 230VAC (S), Plug In Power Relay, 230V ac Coil, 10A Switching Current, SPDT
Brand: OMRON
SKU: G2R-1-SNI 230VAC (S)
Availability: OutOfStock

Part Number : G2R-1-SNI 230VAC (S)

Relay, plug-in, 5-pin, SPDT, 10 A, mech & LED indicators, lockable test button, label facility

Availability: Sold out

Detailed Description
Specifications
Features

G2RS Series with Test Button

Integral coil status LED, and mechanical operation indicator
Cadmium and lead free
Contact resistance: 100mΩ
Coil to contact isolation: 5000Vac
Operating temperature range: -40 to + 70°C
H35.5, W29, D13mm
DIN Rail and PCB sockets are available separately

Note

Can be used as a replacement for earlier version of G2R-SN series, please check height clearance.

Approvals

UL, CSA, VDE

OMRON Power Relay, 0.9VA at 60Hz Power Consumption, 5kV AC Isolation Coil to Contact - G2R Series - G2R-1-SNI AC230(S)

Add this power relay from OMRON to your automated system to turn circuits on and off in a flash. It's just the job for managing motor operations, HVAC systems and security mechanisms in your setup. The rapid 15ms operating time sets your operation in motion immediately. Transparent housing enables straightforward visual inspections, so there's no need for dismantling. You can install this unit using a through-hole termination method that creates a permanent and secure hold.

Features & Benefits

• 900mW coil power, so it handles the demands of heavy-duty applications
• LED indicator keeps you informed about the unit's status, for monitoring at a glance
• Plug-in mounting for speedy installation without special tools

Applications

• Industrial engineering
• Robotics systems
• Pharmaceutical industry

What lifespan can I expect from this power relay?

This power relay has a mechanical lifespan of 10 million cycles, so it's a dependable choice for long-term performance.

How much does this unit weigh?

This assembly only weighs 20g, so it's a lightweight option that keeps load low and strain minimal.

Brand	Omron
Coil Voltage	230V ac
Contact Configuration	SPDT
Mounting Type	Plug In
Switching Current	10A
Number of Poles	1
Series	G2R
Latching	No
Terminal Type	Through Hole
Maximum Switching Voltage AC	380V ac
Maximum Switching Voltage DC	125V dc
Maximum Switching Current DC	10 A
Maximum Switching Current AC	10 A
Length	29mm
Coil Resistance	27.172 kΩ
Coil Power	900mW
Standards Met	CE, CSA
Height	35.5mm
Minimum Operating Temperature	-40°C
Isolation Coil To Contact	5kV ac

Relay, plug-in, 5-pin, SPDT, 10 A, mech & LED indicators, lockable test button, label facility
