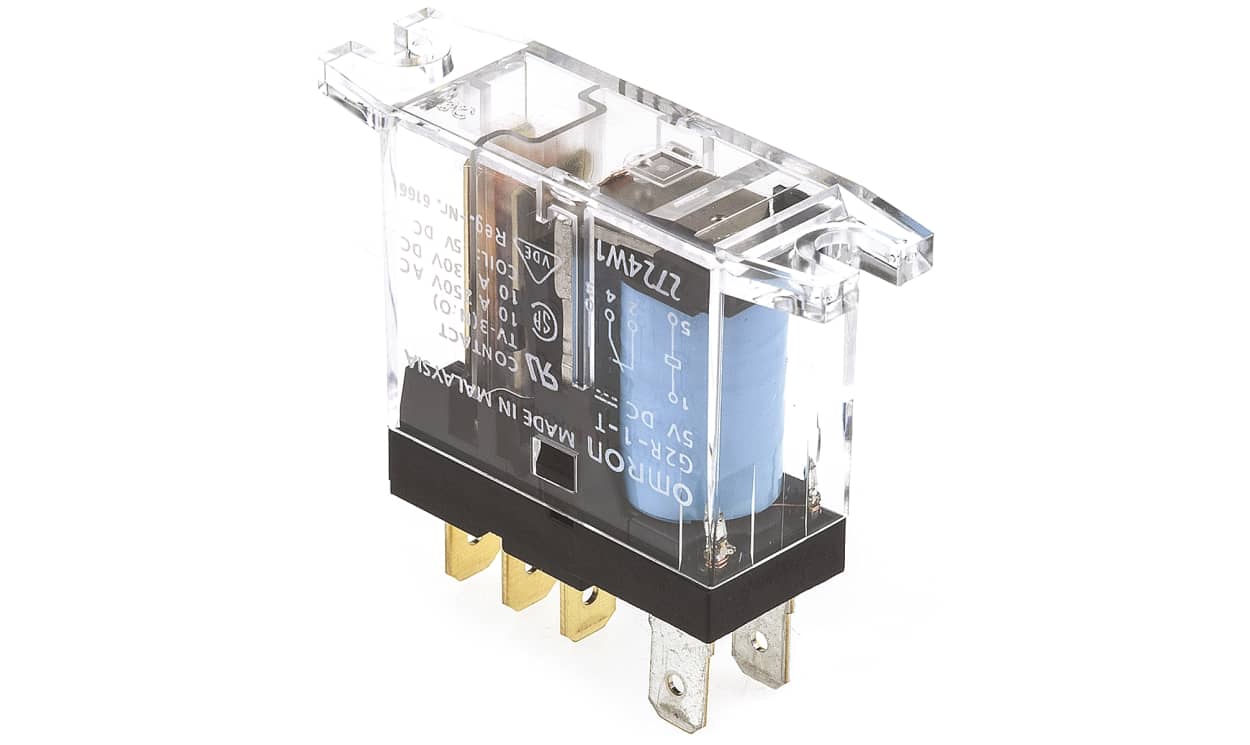

Omron G2R-1-T DC5, Panel Mount Power Relay, 5V dc Coil, 10A Switching Current, SPDT

Name: Omron G2R-1-T DC5, Panel Mount Power Relay, 5V dc Coil, 10A Switching Current, SPDT
Brand: OMRON
SKU: G2R-1-T DC5
Availability: InStock

Part Number : G2R-1-T DC5

Availability: low stock

Detailed Description
Specifications
Downloads

Omron Non-Latching Relay

The Omron G2R-1 series panel mount non-latching relay has a contact configuration of SPDT. It is actuated with 5VDC coil voltage and 10A switching current. This relay is used in various domestic and commercial applications.

Features and Benefits

Creepage/clearance is 8mm
Coil resistance is 47ohm
Quick connect terminal type

Certifications

UL508
CSA22.2
EN 61810-1
SEV
SEMKO

Brand	Omron
Coil Voltage	5V dc
Contact Configuration	SPDT
Mounting Type	Panel Mount
Switching Current	10A
Number of Poles	1
Latching	No
Series	G2R
Terminal Type	Quick Connect
Length	45mm
Coil Resistance	47Ω
Maximum Operating Temperature	+70°C
Contact Material	Silver
Depth	14mm
Height	38mm
Minimum Operating Temperature	-40°C
Maximum Switching Power DC	300 W
Maximum Switching Power AC	2.5 kVA
Application	Power
