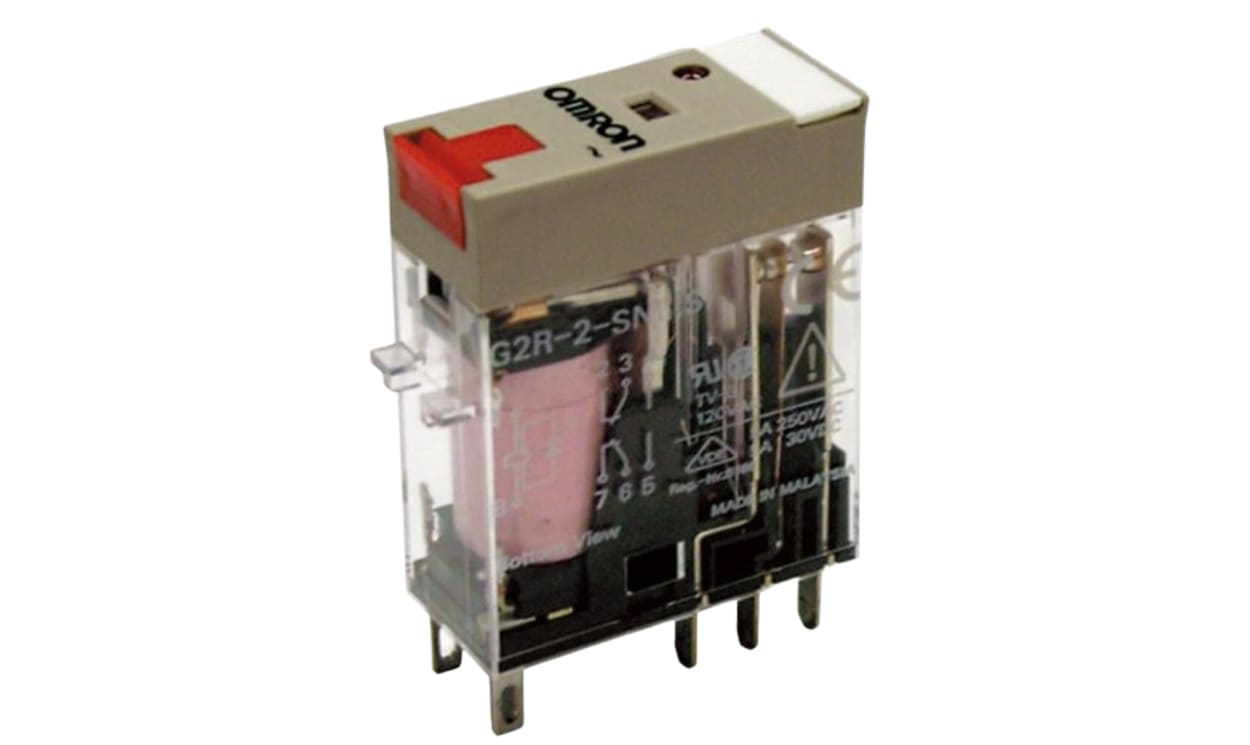

Omron G2R-2-S 110VAC (S), Plug In Non-Latching Relay, 110V ac Coil, 5A Switching Current, DPDT

Part Number : G2R-2-S 110VAC (S)

Availability: Sold out

Detailed Description
Specifications

Omron G2R-S Non-Latching Relay, 110V AC Coil Voltage, 5A Maximum Switching Current - G2R-2-S AC110(S)

This non-latching relay is designed for reliable electrical control in automation. Featuring a double pole double throw (DPDT) configuration, it operates on a 110V AC coil voltage, making it suitable for various applications. The plug-in design allows for easy installation, and the device operates efficiently within a temperature range of -40°C to +70°C.

Features & Benefits

• Reduces wiring work by up to 60% when paired with compatible sockets
• Built-in mechanical operation indicator for enhanced usability
• Coil-disconnection self-diagnostic function aids in maintenance
• High switching power rated at 1250VA for robust performance
• Contact configuration allows for versatile usage setups
• Compact design optimises space while ensuring reliable operation

Applications

• Used with automation systems for efficient control processes
• Ideal for industrial needing robust relay configurations
• Suitable for electrical control in machinery and equipment
• Utilised for managing high voltage circuits with ease
• Can be integrated into panel design for streamlined layouts

What are the electrical specifications regarding coil voltage and switching current?

The relay operates at a coil voltage of 110V AC and has a maximum switching current of 5A for both AC and DC applications. This allows for versatile use in various electrical control systems.

How does the mechanical operation indicator function?

The built-in mechanical operation indicator shows the status of the relay’s operation, allowing users to verify functionality at a glance, thus improving system reliability.

What kind of socket is compatible with this relay for installation?

This relay is compatible with the P2RF series of Push-In Plus sockets, which facilitate easy connections and enhance wiring efficiency during the installation process.

Can it safely handle inductive loads?

Yes, the device can manage inductive loads with a rated capacity of 7.5A at 250VAC, making it suitable for applications involving motors and other inductive devices.

Brand	Omron
Coil Voltage	110V ac
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	5A
Number of Poles	2
Series	G2R-S
Coil Resistance	5566 Ω
Coil Power	900mW
