Omron G2R-2-SN 48VDC (S), Plug In Power Relay, 48V dc Coil, 5A Switching Current, DPDT

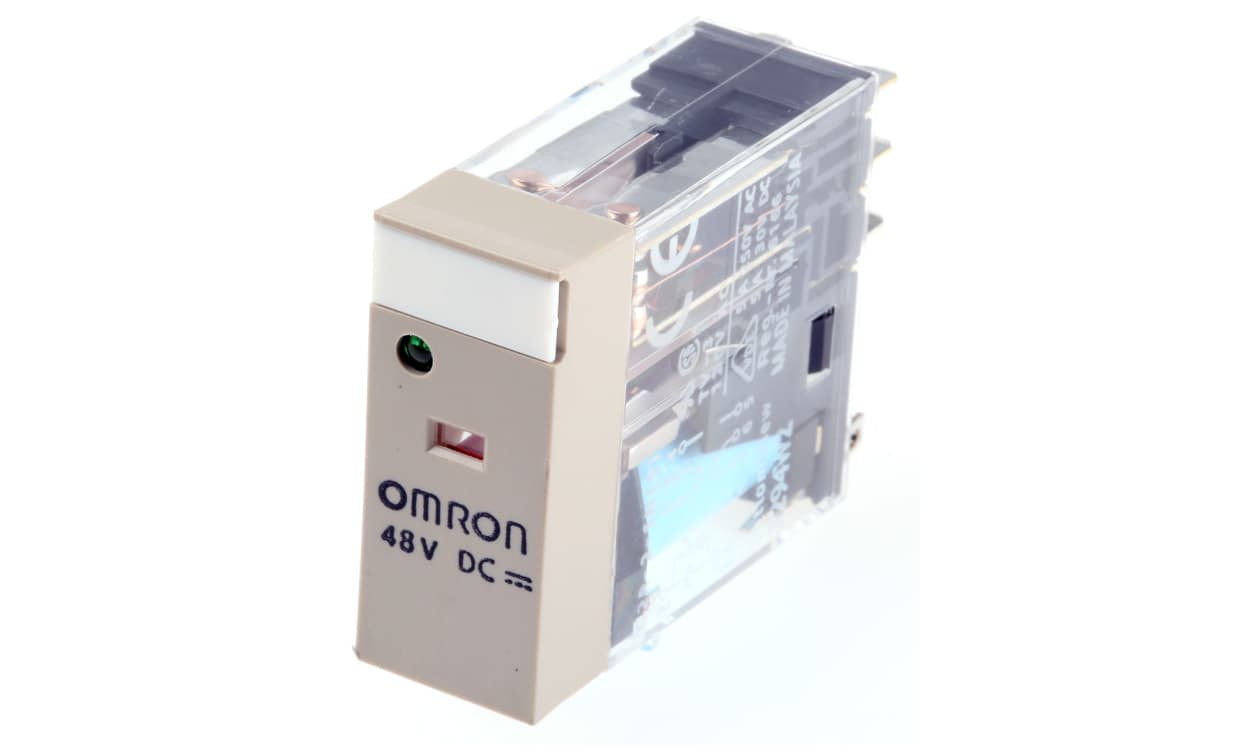

Name: Omron G2R-2-SN 48VDC (S), Plug In Power Relay, 48V dc Coil, 5A Switching Current, DPDT
Brand: OMRON
SKU: G2R-2-SN 48VDC (S)
Availability: OutOfStock

Part Number : G2R-2-SN 48VDC (S)

Relay, plug-in, 8-pin, DPDT, 5 A, mech & LED indicators, label facility, 48 VDC

Availability: Sold out

Detailed Description
Specifications
Features

Omron G2R Series Power Relay, DPDT Contact Configuration, 48V DC Coil Voltage - G2R-2-SN DC48(S)

This power relay is designed for reliable operation in various industrial applications. With a coil voltage of 48V DC, it is ideal for automation purposes. The relay handles substantial switching power, making it essential for efficient electrical load control.

Features & Benefits

• Enhanced isolation between coil and contacts for safety
• DPDT configuration allows flexible circuit management
• Operates effectively across a wide temperature range
• Low coil power consumption promotes energy efficiency
• Capable of handling high voltage in both AC and DC settings

Applications

• Controls machinery in automation systems
• Manages loads in power distribution panels
• Integrated into control circuits for industrial equipment
• Utilised for relay logic in electronic control systems
• Suitable for switching tasks in high-voltage operations

What is the maximum switching current this device can handle?

It can manage a maximum switching current of 5A.

How does the relay perform in extreme temperatures?

It operates effectively within a temperature range of -40°C to +70°C.

Can I use it for both AC and DC circuits?

Yes, it is designed for use with both AC and DC applications.

What installation method is recommended?

A plug-in installation method is advised for convenience.

What is the expected lifespan of the device?

It provides up to 1,000,000 electrical cycles and 10,000,000 mechanical cycles.

Brand	Omron
Coil Voltage	48V dc
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	5A
Number of Poles	2
Latching	No
Series	G2R
Terminal Type	Through Hole
Maximum Switching Voltage AC	380V ac
Maximum Switching Voltage DC	125V dc
Length	29mm
Coil Resistance	4170Ω
Coil Power	530mW
Contact Material	Silver Alloy
Minimum Operating Temperature	-40°C
Maximum Operating Temperature	+70°C
Depth	13mm
Standards Met	CE
Height	28mm

Relay, plug-in, 8-pin, DPDT, 5 A, mech & LED indicators, label facility, 48 VDC
