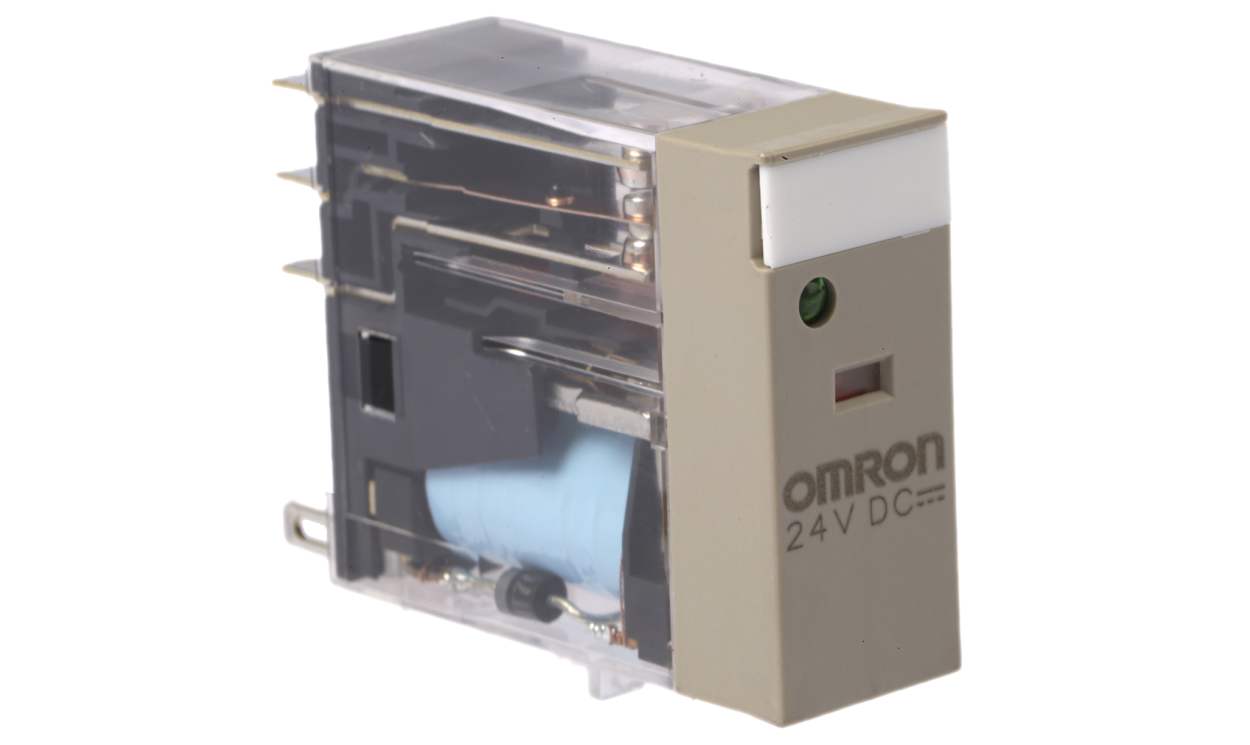

Omron G2R-2-SND 24VDC (S), Plug In Power Relay, 24V dc Coil, 5A Switching Current, DPDT

Name: Omron G2R-2-SND 24VDC (S), Plug In Power Relay, 24V dc Coil, 5A Switching Current, DPDT
Brand: OMRON
SKU: G2R-2-SND 24VDC (S)
Availability: OutOfStock

Part Number : G2R-2-SND 24VDC (S)

Relay, plug-in, 8-pin, DPDT, 5 A, mech & LED indicators, coil suppressor, label facility

Availability: Sold out

Detailed Description
Specifications
Features

OMRON Power Relay, DPDT Contact Configuration, 2 Poles - G2R Series - G2R-2-SND 24DC(S)

When you want to control demanding electrical circuits, take charge with this OMRON general-purpose power relay. Supplying it with 24V DC lets you make or break a connected circuit with a voltage rating of up to 380V AC, like a motor or lighting network. Mounting the unit is a breeze thanks to its straightforward plug-in design. As it can operate up to 1,800 times an hour, it's just the thing for challenging stop-start applications.

Features & Benefits

• Integrated LED indicator and diode allow for easy status monitoring
• Low current rating of 21.6mA for energy efficiency
• Light weight of 20g keeps your system free of unnecessary strain
• Controls DC loads of up to 125V to provide you with broad functionality
• Minimum lifespan of 100,000 operations assures you it's highly reliable

Applications

• HVAC systems
• Power distribution
• Industrial safety devices

Is this relay suitable for use in harsh environments?

It withstands temperatures from -40°C to +70°C, so it's suitable for factories, warehouses and other harsh work areas.

Can this unit withstand voltage surges?

Yes – the dielectric strength of this product is between 1,000 and 5,000V AC, so it holds its own against voltage surges.

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	DPDT
Mounting Type	Plug In
Switching Current	5A
Number of Poles	2
Series	G2R
Latching	No
Terminal Type	Plug In
Maximum Switching Voltage AC	380V
Maximum Switching Voltage DC	125V dc
Maximum Switching Current AC	5 A
Maximum Switching Current DC	5 A
Length	29mm
Coil Resistance	1.11 kΩ
Coil Power	530mW
Height	35.5mm
Contact Material	Silver Alloy
Standards Met	CE, CSA
Maximum Operating Temperature	+70°C

Relay, plug-in, 8-pin, DPDT, 5 A, mech & LED indicators, coil suppressor, label facility
