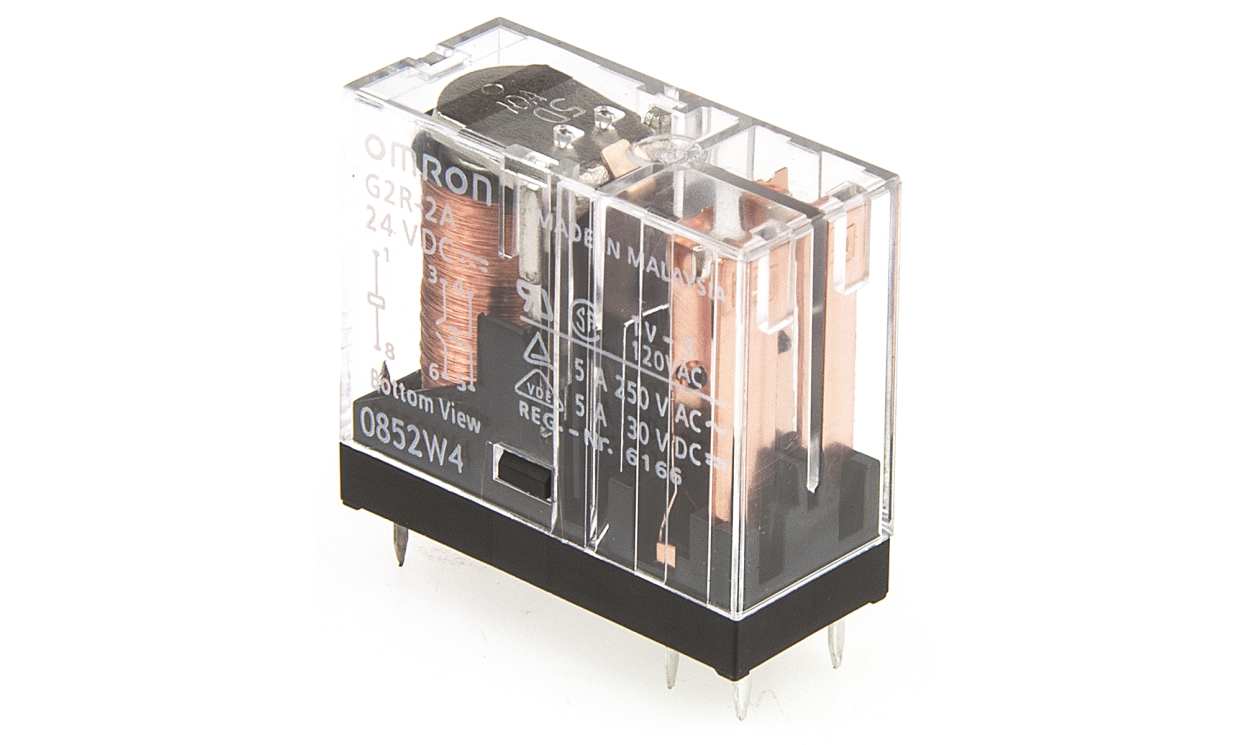

OMRON G2R-2A DC24 | PCB Power Relay | 24 V DC Coil, 5 A, DPST

Name: OMRON G2R-2A DC24 | PCB Power Relay | 24 V DC Coil, 5 A, DPST
Brand: OMRON
SKU: G2R-2A DC24
Availability: InStock

Part Number : G2R-2A DC24

The OMRON G2R-2A DC24 is a PCB-mount G2R series power relay with a 24 V DC coil and DPST contacts, rated for 5 A switching current. Further G2R-2A DC24 details: a coil resistance of 1100 Ω and non-latching operation.

Number of poles: 2
Maximum switching power: 1.25 kVA AC, 150 W DC
Contact material: silver
Terminal type: through-hole
Operating temperature: -40 °C to 70 °C
Dimensions: 29 x 25.5 x 13 mm (L x H x D)

Availability: low stock

Detailed Description
Specifications

G2R Series

General purpose PCB power relay used in various domestic and commercial applications
8mm creepage/clearance
H25.5 x W13 x D29 mm

Approvals

UL508; CSA22.2; EN 61810-1; SEV; SEMKO

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	DPST
Mounting Type	PCB Mount
Switching Current	5A
Number of Poles	2
Series	G2R
Latching	No
Terminal Type	Through Hole
Length	29mm
Coil Resistance	1100Ω
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-40°C
Depth	13mm
Contact Material	Silver
Height	25.5mm
Maximum Switching Power DC	150 W
Maximum Switching Power AC	1.25 kVA
Application	Power
