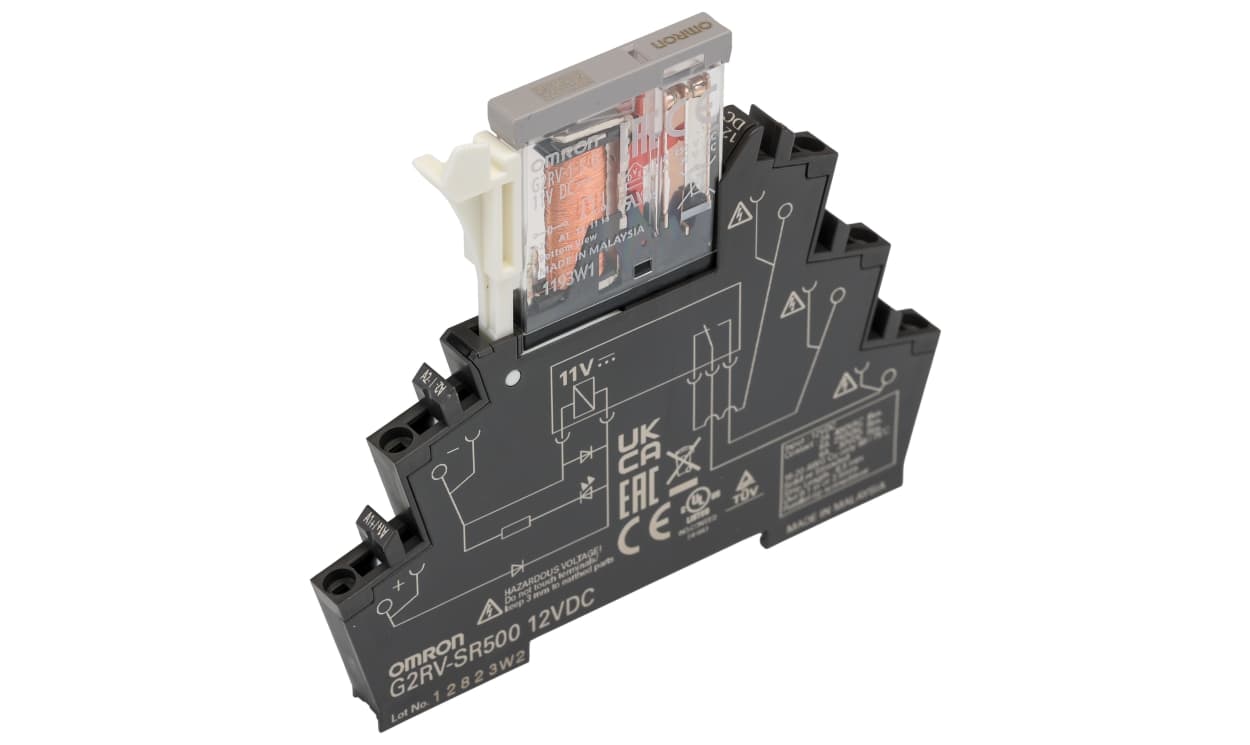

Name: Omron G2RV-SR500 DC12, DIN Rail Power Relay, 12V dc Coil, 6A Switching Current, SPDT
Brand: OMRON
SKU: G2RV-SR500 DC12
Availability: OutOfStock

Omron G2RV-SR500 DC12, DIN Rail Power Relay, 12V dc Coil, 6A Switching Current, SPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G2RV-SR500 DC12, DIN Rail Power Relay, 12V dc Coil, 6A Switching Current, SPDT

Part Number : G2RV-SR500 DC12

Availability: Sold out

Detailed Description
Specifications

Omron G2RV Series Power Relay, 12V DC Coil Voltage, 6A Switching Current - G2RV-SR500 DC12

When 1788272 is no longer for sale, please see RS article 2711837 for the updated version in the new range of relays from Omron.

Features & Benefits

• Designed for a maximum switching current of 6A
• Incorporates push-in terminals for easy connections
• Operates effectively across temperatures from -40 °C to +55 °C
• Built with Ag alloy contacts for enhanced durability
• Achieves a lifespan of over 5 million operations
• Capable of handling high voltages up to 440V AC

Applications

• Utilised in automation control panels for efficient switching
• Employed in electrical distribution systems for reliable performance
• Ideal for mechanical systems requiring compact relay solutions
• Suitable for use in various industrial equipment settings

Having been designed from first principles, instead of being adapted from a PCB relay, Omron’s G2RV series is the only genuine slim industrial relay on the market. As a result, the G2RV offers a wide array of benefits to machine manufacturers and panel builders. Just 6mm wide, the relay is ideal for compact panels and equipment, yet it offers all of the durability and reliability required for industrial applications.

What are the advantages of using this relay for automation projects?

Push-in plus Technology – easy wiring
Lockable test switch models available
Large plug-in pins – excellent connection
LED/mechanical flag – check operation
Transparent housing – check condition
Slim outline – space saving
Special input type with gold plated contacts
G3RV compatible

This relay provides reliable switching capabilities with a maximum current of 6A and operates across a wide temperature range, ensuring performance in varying conditions. Its SPDT configuration offers flexibility in control applications.

How does the push-in terminal feature enhance installation?

The push-in terminal design simplifies wiring processes, allowing for quicker and more secure connections, which is particularly beneficial in environments where time and efficiency are critical.

What makes this relay particularly suitable for high-voltage applications?

It can handle a maximum switching voltage of 440V AC, making it suitable for high-voltage applications without risking damage or failure, thus enhancing safety and operational longevity.

What is the expected lifespan of this relay under normal operating conditions?

Under standard operating conditions, it is designed to last over 5 million operations, ensuring long-term reliability and reducing the need for frequent replacements.

How can this relay fit into diverse industrial settings?

Its compact design and ability to handle diverse electrical loads make it adaptable for use in various industrial applications, from automation controls to equipment management systems.

Note

This product is scheduled for discontinuation. Please refer to the attached Discontinuation notice for further details.

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	SPDT
Mounting Type	DIN Rail
Switching Current	6A
Number of Poles	1
Latching	No
Series	G2RV
Terminal Type	Push In
Maximum Switching Voltage AC	440V ac
Maximum Switching Voltage DC	125V dc
Maximum Switching Current DC	6 A
Maximum Switching Current AC	6 A
Length	6.2 mm
Coil Power	300mW
Maximum Operating Temperature	+55°C
Depth	77.9 mm
Contact Material	Ag Alloy
Life	5000000 (Minimum) operations
Height	90 mm
