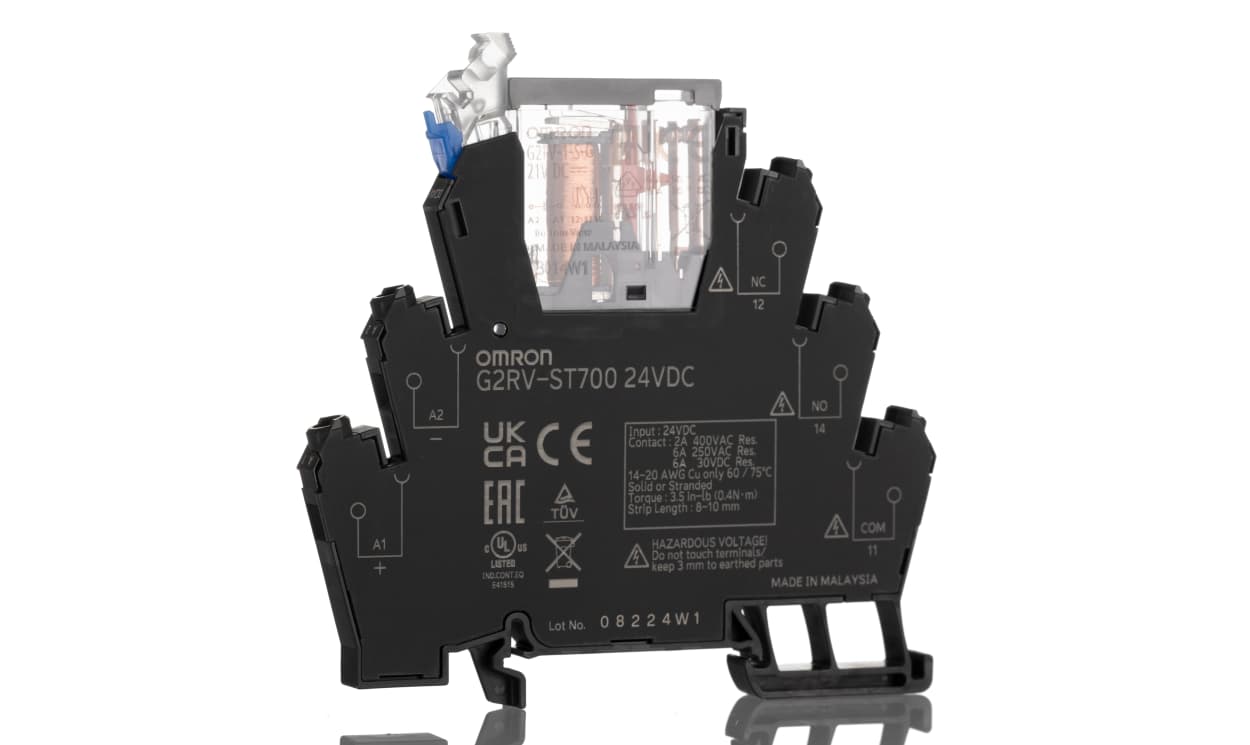

Omron G2RV-ST700 24VDC, G2RV-ST Series Electromechanical Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole, 6A Load

Name: Omron G2RV-ST700 24VDC, G2RV-ST Series Electromechanical Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 1-Pole, 6A Load
Brand: OMRON
SKU: G2RV-ST700 24VDC
Availability: OutOfStock

Part Number : G2RV-ST700 24VDC

Slimline relay 6 mm incl. socket, SPDT, 6 A, Screw terminals, 24 VDC

Availability: Sold out

Detailed Description
Specifications
Features

Omron G2RV-ST Series Electromechanical Interface Relay, 100 MΩ Control Resistance, 13.5 mA Input Current - G2RV-ST700 DC24

This Omron product is a DIN rail-mounted electromechanical interface relay. It features a 24V DC coil, SPDT configuration, and a load current of 6A.

Features & Benefits

• Easy installation and organization of multiple relays on a standard DIN rail
• SPDT configuration provides flexibility to switch between two different circuits
• Handles higher current loads of 6A without overheating

Applications

• Reliable control of motor-driven equipment in industrial automation and manufacturing processes
• Manages lighting circuits in buildings, warehouses, or outdoor areas
• Suitable for heating, ventilation, and air conditioning (HVAC) systems

What is the coil voltage of this relay?

The coil voltage is 24V DC.

Can I use this relay for motor control applications?

Yes, it’s suitable for motor control tasks such as switching pumps, fans, or conveyor belts.

What load current can this relay handle?

It can handle a load current of 6A.

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	SPDT
Mounting Type	DIN Rail
Number of Poles	1
Series	G2RV-ST
Load Current Rating	6A
Load Voltage Rating	250V ac
Maximum Input Voltage	26.4V
Minimum Input Voltage	21.6V
Switching Voltage	400V ac
Terminal Type	Screw
Depth	6.2mm
Height	90mm
Length	88mm
Contact Material	Ag Alloy
Input Current	13.5mA
Dimensions	88 x 90 x 6.2mm
Control Resistance	100MΩ
Turn On Time	20ms

Slimline relay 6 mm incl. socket, SPDT, 6 A, Screw terminals, 24 VDC
