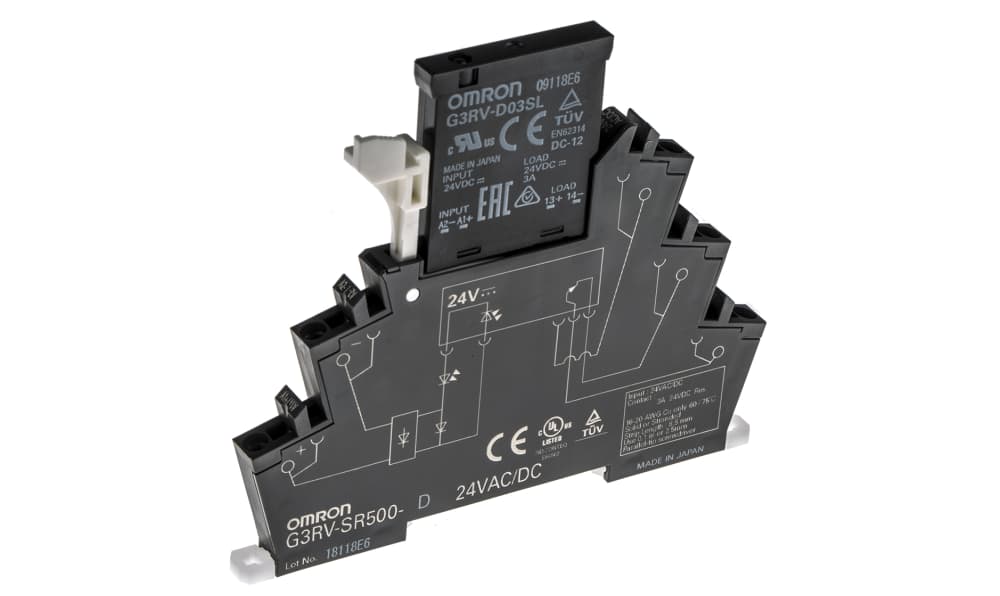

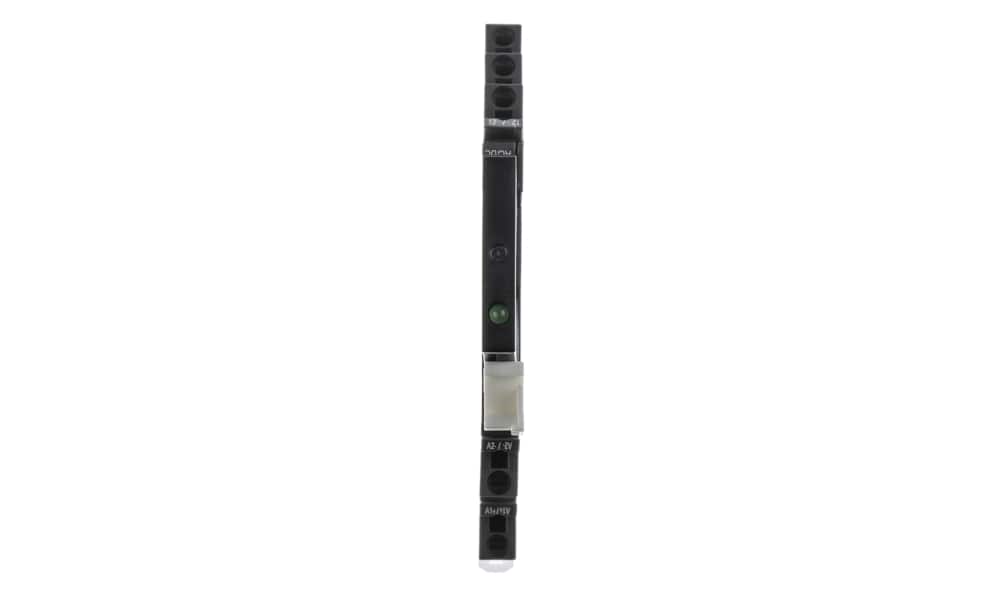

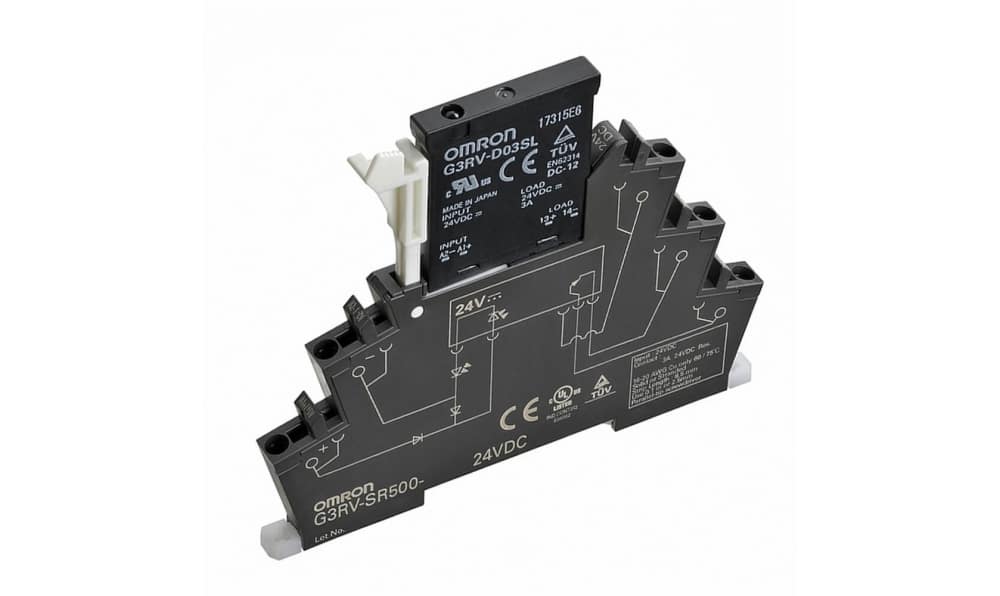

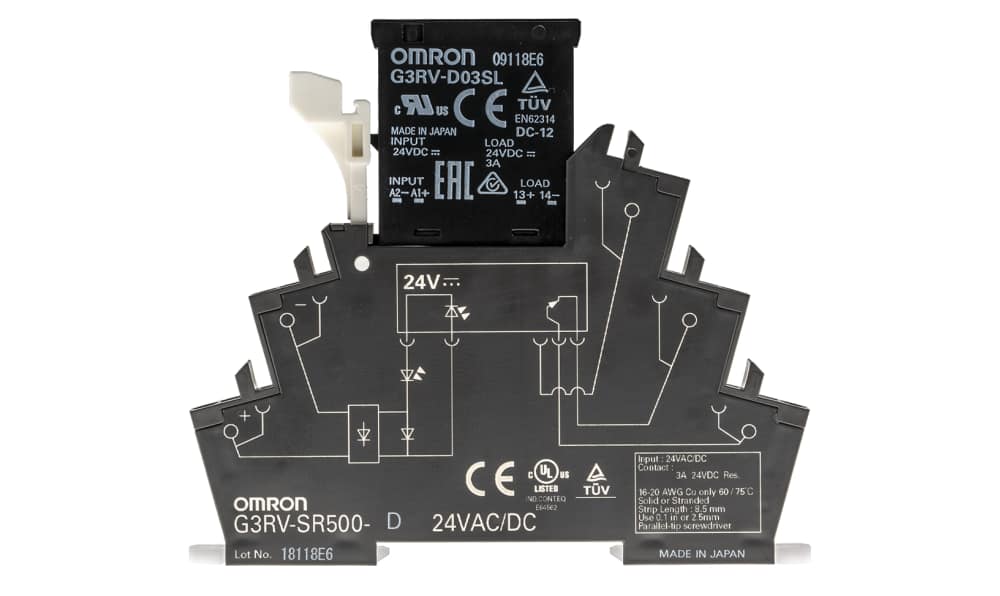

Omron G3RV-SR500-D 24VAC/DC, G3RV-SR Series Solid State Interface Relay, 24 V ac/dc Control, 3 A Load, DIN Rail Mount

Name: Omron G3RV-SR500-D 24VAC/DC, G3RV-SR Series Solid State Interface Relay, 24 V ac/dc Control, 3 A Load, DIN Rail Mount
Brand: OMRON
SKU: G3RV-SR500-D 24VAC/DC
Availability: OutOfStock

Part Number : G3RV-SR500-D 24VAC/DC

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron G3RV-SR Series Solid State Interface Relay, 3A Maximum Load Current, Maximum of 24V AC/DC Control Voltage Range - G3RV-SR500-D AC/DC24

This solid-state interface relay is engineered to effectively manage electrical loads in a range of automated systems. By playing a key role in high-speed switching control, it enhances performance and reliability in electronic circuits. Its operation across a broad voltage range makes it suitable for various applications within the electrical and mechanical sectors.

Features & Benefits

• High-speed switching reduces response times in automation processes
• Operating voltage range supports both AC and DC applications
• SPST contact configuration allows straightforward integration into existing systems
• Push-in terminals enable quick and easy installation
• Low off-state leakage current promotes energy efficiency
• Compact design optimises space utilisation on DIN rail installations

Applications

• Applicable in industrial automation control panels
• Ideal for temperature control systems in HVAC
• Utilised in lighting control circuits for improved energy efficiency
• Employed in motor control and start-stop
• Suitable for a variety of test and measurement equipment

How do I install it in my control panel?

Follow standard DIN rail mounting procedures, ensuring correct connection to the control circuit.

What should I consider when selecting a relay for my application?

Evaluate the maximum load current and voltage requirements for compatibility.

Can it operate reliably in extreme temperatures?

Yes, it functions effectively within an operational temperature range of -30 to +55°C.

What maintenance is required for optimal performance?

Regular inspections for signs of wear and ensuring secure terminal connections are recommended.

Is it compatible with other components in my system?

It is compatible with various automation components, provided they meet the designated voltage and current ratings.

Standards

UL 508, E64562. CE.

Zero Voltage Relays

Note

Temperature can affect current rating; please consult the data sheet for potential derating.

Brand	Omron
Maximum Control Voltage	24 V ac/dc
Maximum Load Current	3 A
Mounting Type	DIN Rail
Maximum Load Voltage	26.4 V dc
Control Voltage Range	Maximum of 24 V ac/dc
Switching Type	AC/DC
Contact Configuration	SPST
Load Voltage Range	3 → 26.4V dc
Minimum Load Voltage	3 V dc
Terminal Type	Push In
Number of Poles	1
Length	6.2mm
Output Device	MOSFET
Height	90mm
Depth	78mm
Minimum Load Current	100 μA
Series	G3RV-SR
Dimensions	6.2 x 78 x 90mm
Off State Leakage Current	10 μA
