Omron G3RV-ST500-A 24VDC, G3RV-ST Series Solid State Interface Relay, 24 Vdc Control, 2 A Load, DIN Rail Mount

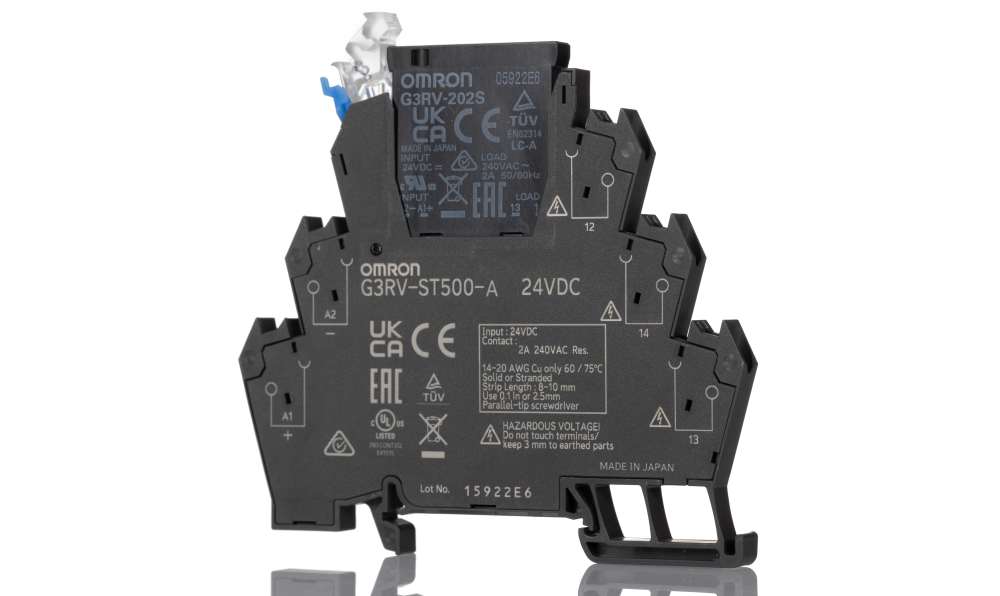

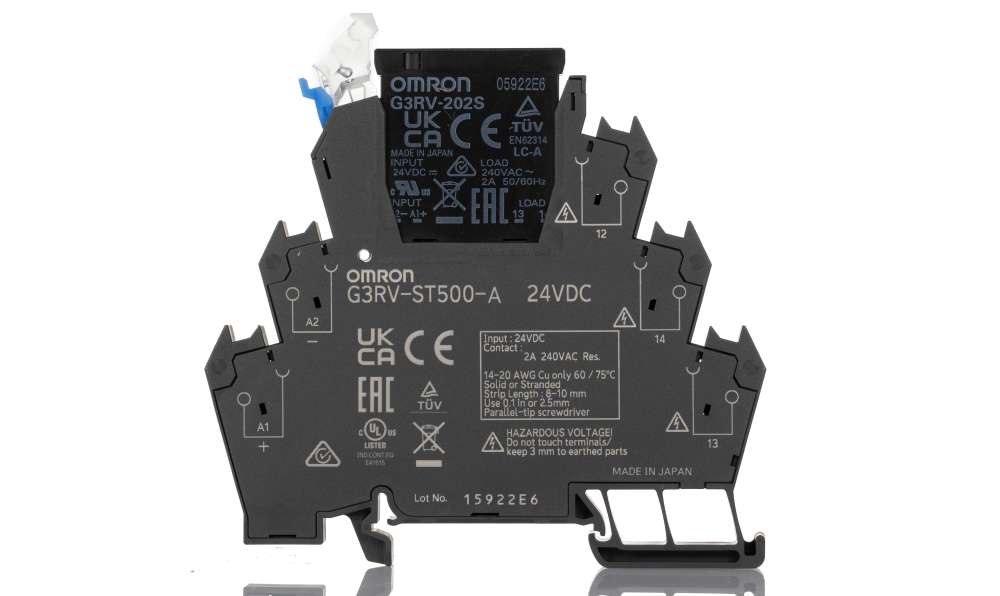

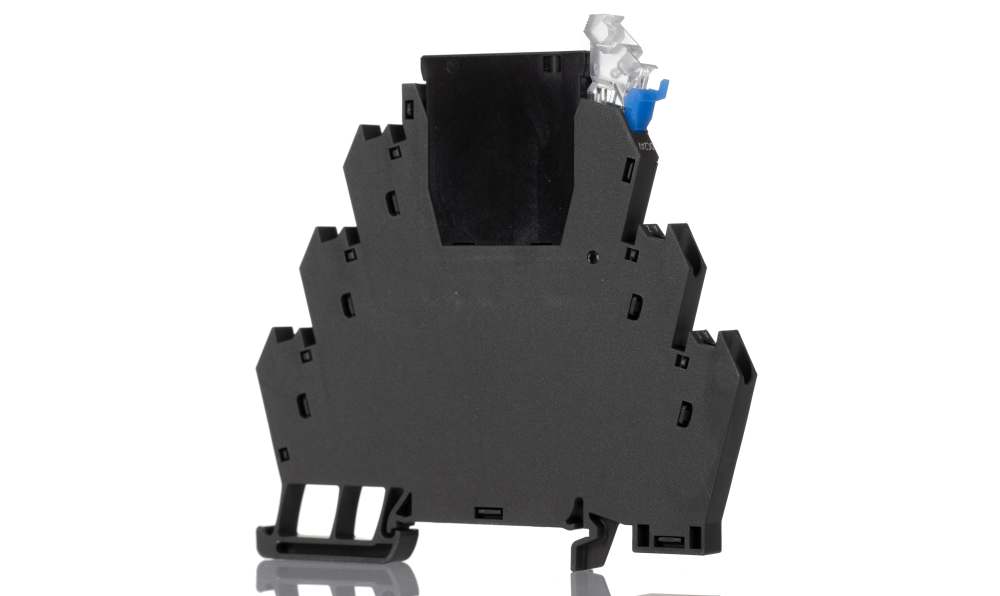

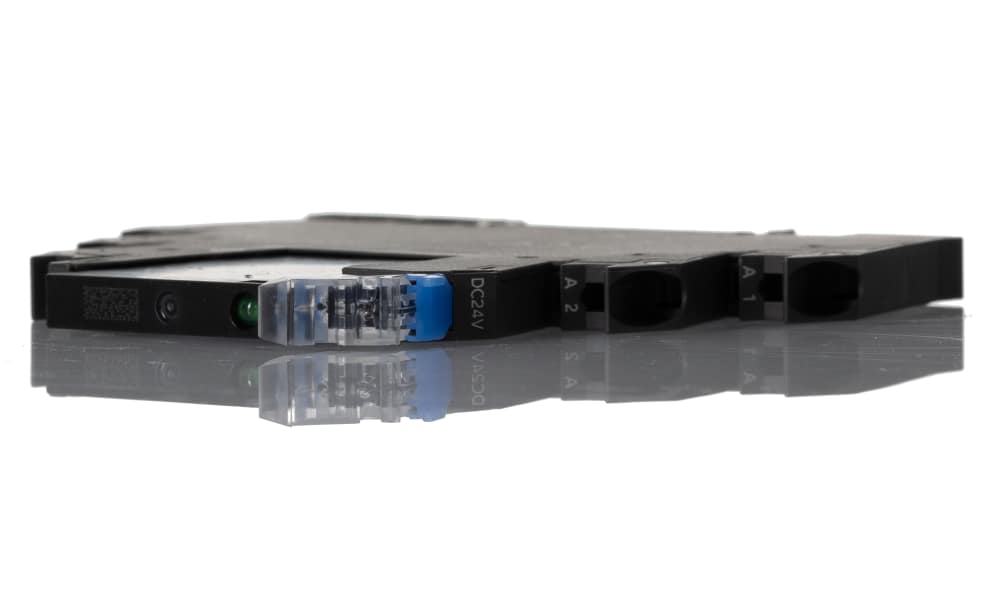

Name: Omron G3RV-ST500-A 24VDC, G3RV-ST Series Solid State Interface Relay, 24 Vdc Control, 2 A Load, DIN Rail Mount
Brand: OMRON
SKU: G3RV-ST500-A 24VDC
Availability: OutOfStock

Part Number : G3RV-ST500-A 24VDC

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron G3RV-ST Series Solid State Interface Relay, SPDT Configuration, 19.2 to 26.4 V Control Voltage Range - G3RV-ST500-A DC24

This Omron product is a compact solid-state relay with an integrated low-profile socket. It features a DC output (MOSFET) and operates at 24V AC/DC. Its slim design saves panel space, making it ideal for space-constrained applications.

Features & Benefits

• Occupies minimal space on panels, allowing for efficient use of limited real estate
• The relay comes with a built-in socket, simplifying installation and reducing wiring complexity
• DIN rail mount for easy installation

Applications

• Suitable for PLC control, motor drives, and sensor interfacing
• Used in lighting control, HVAC systems, and access control
• Ideal for switching valves, pumps, and heaters

What is the supply voltage supported by it?

The relay can handle supply voltage of 19.2 to 26.4 V.

Is it suitable for high-speed switching applications?

Yes, it has an operate time of 6 ms max, making it suitable for rapid switching.

Can I use this relay for both AC and DC loads?

Yes, it supports both AC and DC loads within the specified voltage range.

Brand	Omron
Maximum Control Voltage	24 Vdc
Maximum Load Current	2 A
Mounting Type	DIN Rail
Maximum Load Voltage	264 V ac
Minimum Control Voltage	21.6 V
Control Voltage Range	19.2 - 26.4 V
Switching Type	High-Speed
Contact Configuration	SPDT
Load Voltage Range	75 - 264V
Minimum Load Voltage	75 V ac
Terminal Type	Push In
Number of Poles	1
Input Current	12mA
Height	90mm
Rise Time	11ms
Length	88mm
Series	G3RV-ST
Width	6.2mm
Depth	87.1mm

Omron G3RV-ST500-A 24VDC, G3RV-ST Series Solid State Interface Relay, 24 Vdc Control, 2 A Load, DIN Rail Mount

DOWNLOAD CATALOG

G3RV-ST500-A 24VDC Brochure - Industrial Relays A700000011227029
