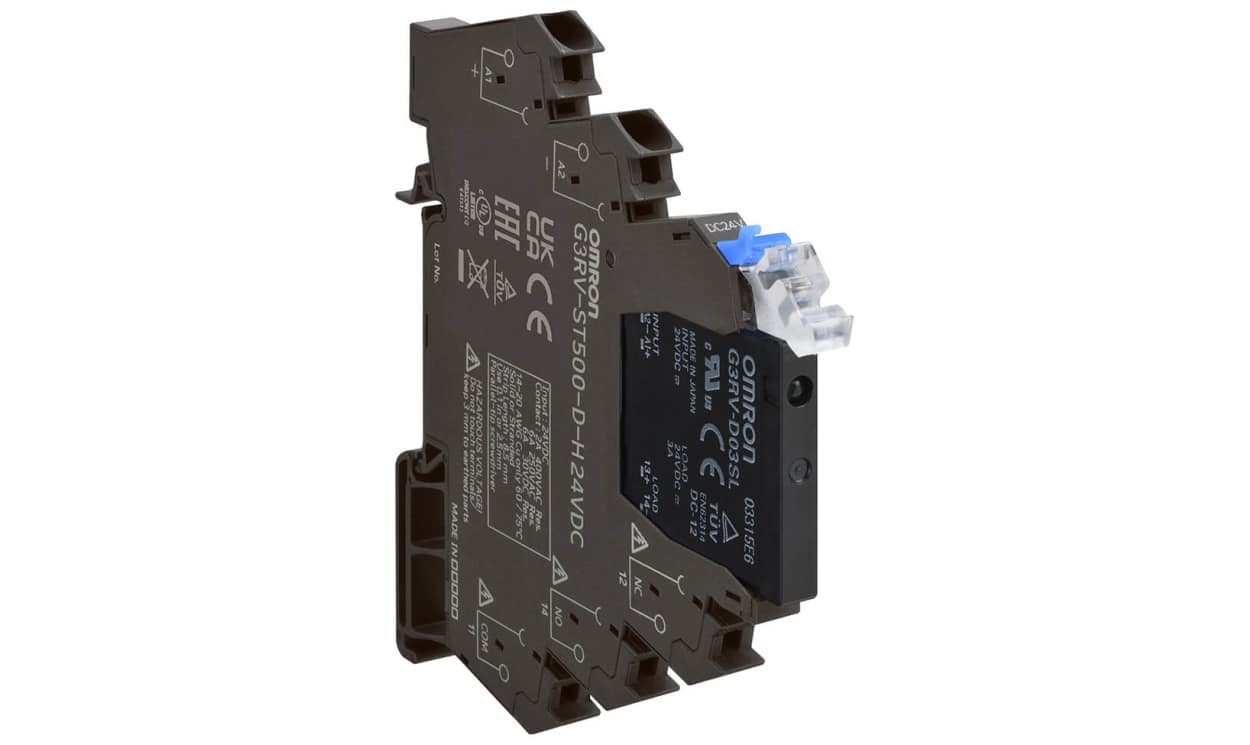

Name: Omron G3RV-ST500-D-H 24VAC/DC, G3RV-ST Series Solid State Interface Relay, 24 V ac/dc Control, 3 A Load, DIN Rail Mount
Brand: OMRON
SKU: G3RV-ST500-D-H 24VAC/DC
Availability: OutOfStock

Omron G3RV-ST500-D-H 24VAC/DC, G3RV-ST Series Solid State Interface Relay, 24 V ac/dc Control, 3 A Load, DIN Rail Mount

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G3RV-ST500-D-H 24VAC/DC, G3RV-ST Series Solid State Interface Relay, 24 V ac/dc Control, 3 A Load, DIN Rail Mount

Part Number : G3RV-ST500-D-H 24VAC/DC

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron G3RV-ST Series Solid State Interface Relay, 24V Maximum Control Voltage, 3A Maximum Load Current - G3RV-ST500-D-H AC/DC24

This solid state interface relay is designed for automation and control applications across various industries. The robust design features a compact form factor of 88mm x 90mm x 6.2mm, making it suitable for DIN rail mounting. This reliable device operates on a control voltage range of 19.2V to 26.4V AC/DC, ensuring efficient performance in demanding environments.

Features & Benefits

• Features high-speed switching, achieving a response time of 3ms
• SPDT configuration ensures versatility in circuit design
• Push-In terminal technology allows for quick and secure wiring
• Designed for 60% space savings compared to previous models
• MOSFET output ensures efficient and rapid operation

Applications

• Utilised in automation systems for precise control
• Applicable in industrial machinery and equipment management
• Ideal for circuit protection and switching operations
• Effective in process control for real-time monitoring and control
• Used in electronic devices requiring fast switching functionalities

What is the maximum load voltage and current rating for operation?

The relay supports a maximum load voltage of 26.4V DC and a maximum load current of 3A, ensuring it can handle various operational demands.

How does the Push-In terminal technology benefit installations?

This technology provides low insertion force, reduces wiring time, and facilitates maintenance, enhancing overall efficiency and ease of use during installation.

What measures ensure safe operation in extreme temperatures?

The device operates reliably within a temperature range of -30°C to +55°C, ensuring durability and consistent performance in harsh environments.

Can this relay be integrated into existing systems?

Yes, its compact design and advanced features make it ideal for integrating into current automation and control systems without extensive modifications.

Brand	Omron
Maximum Control Voltage	24 V ac/dc
Maximum Load Current	3 A
Mounting Type	DIN Rail
Maximum Load Voltage	26.4 Vdc
Minimum Control Voltage	21.6 V
Control Voltage Range	19.2 - 26.4 V
Switching Type	High-Speed
Contact Configuration	SPDT
Load Voltage Range	3 - 26.4V
Minimum Load Voltage	3 Vdc
Terminal Type	Push In
Number of Poles	1
Input Current	8.4mA
Rise Time	3ms
Length	88mm
Height	90mm
Minimum Load Current	0.1 mA
Output Device	MOSFET
Depth	87.1mm

Omron G3RV-ST500-D-H 24VAC/DC, G3RV-ST Series Solid State Interface Relay, 24 V ac/dc Control, 3 A Load, DIN Rail Mount

DOWNLOAD CATALOG

G3RV-ST500-D-H 24VAC DC Brochure - Industrial Relays A700000014068335
