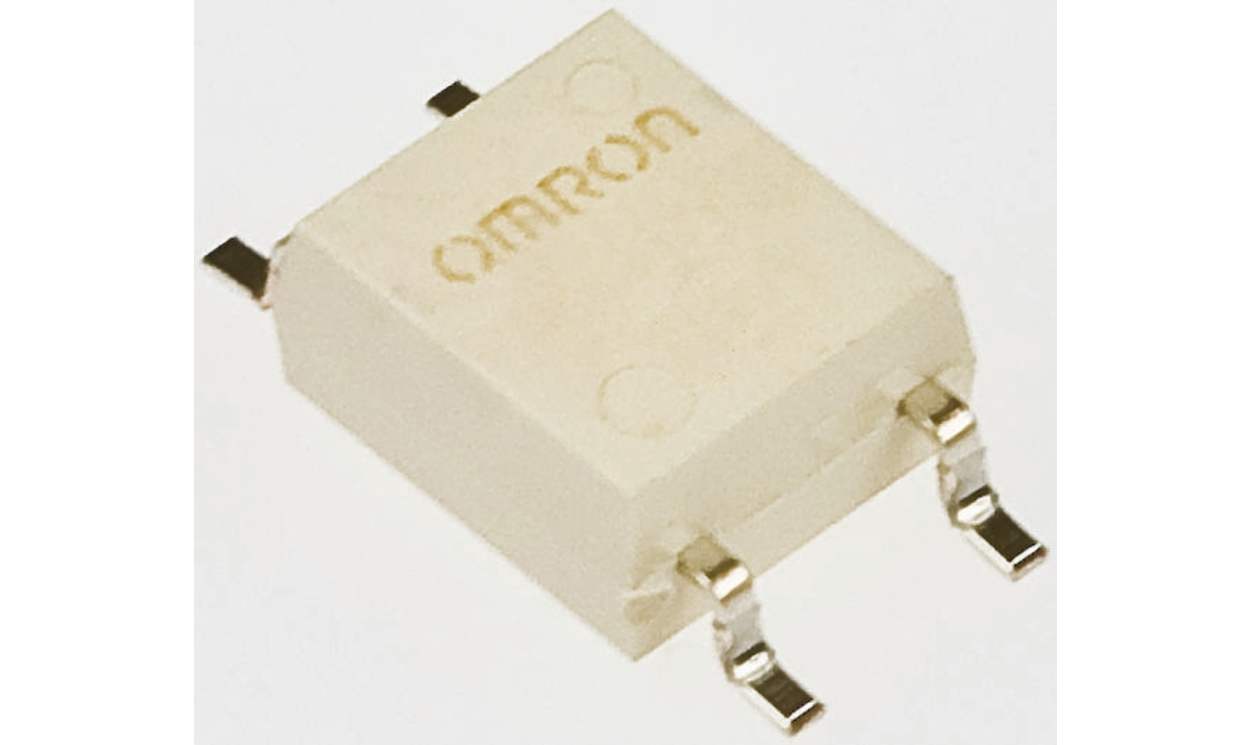

OMRON G3VM-41GR5 | MOSFET Solid State Relay | 0.3 A, 40 V, SMD
This OMRON G3VM-41GR5 G3VM series MOSFET relay carries a 0.3 A load current rating and a 40 V maximum load voltage in a package for surface mounting. Key characteristics are a maximum control voltage of 1.3 V, an SPST contact form and an SOP4 package.
- Maximum load current: 0.3 A
- Maximum load voltage: 40 V
- Maximum control voltage: 1.3 V
- Contact configuration: SPST
- Output device: MOSFET
- Dimensions: 3.9 x 4.4 x 1.9 mm
- Detailed Description
- Specifications
- Downloads
G3VM MOSFET SSR
Combines advantages of mechanical and solid state technology
Low on-resistance and output capacitance
Long life
Wide range of models available
Ideal for telecom solutions, including line seizing, switching, hook switching, line transformer control and other phone functions
G3VM-41GR5 MOS FET General Purpose Series SSR – Solid State Relay.
Features and Benefits G3VM-41GR5 SSR – Solid Sate Relay.
• Surface mounted relay terminals.
• Contact form SPST-NO 1a (normally open).
• SOP4 Package (small outline package).
• 4 Relay terminals.
• Load voltage 40 V ac.
• Load current 300 mA max.
• Maximum resistance with output ON 1 Ω.
• Current leakage when relay is open 1 nA max.
• Capacitance between terminals 10 pF.
• SSR -Turn ON time 0.5 ms max.
• SSR -Turn OFF time 0.5 ms max.
• Dielectric strength between I/O 1500 Vrms.
• Low CxR, Low leak.
• RoHS Compliant.
Additional Features G3VM-41GR5 SSR – Solid State Relay.
• Small leakage current.
• SSR has excellent shock resistance.
• High insulation.
• Silent operation.
• High-speed switching.
• Control the micro analogue signal.
• Photo-LED input.
• Status output.
• Compact
• Operating temperature, ambient -25°C to +60°C.
Other Application Examples.
• Semi-conductor test equipment.
• Broadband systems.
• Data loggers.
| Brand | Omron |
| Series | G3VM |
| Maximum Load Voltage | 40 V |
| Maximum Load Current | 0.3 A |
| Mounting Type | Surface Mount |
| Contact Configuration | SPST |
| Output Device | MOSFET |
| Minimum Load Current | 300 mA |
| Terminal Type | PCB Pin |
| Load Voltage Range | 0 → 40V ac |
| Dimensions | 3.9 x 4.4 x 1.9 mm (0.154×0.173×0.075 in) |
| Maximum Control Voltage | 1.3 V |
| Maximum Operating Temperature | +85 °C (185 °F) |
| Length | 3.9 mm (0.154 in) |
| Height | 1.9 mm (0.075 in) |
| Depth | 4.4 mm (0.173 in) |
| Minimum Operating Temperature | -20 °C (-4 °F) |
| Operating Temperature Range | -20 → +85 °C (-4 to 185 °F) |
| Package Style | SOP4 |
