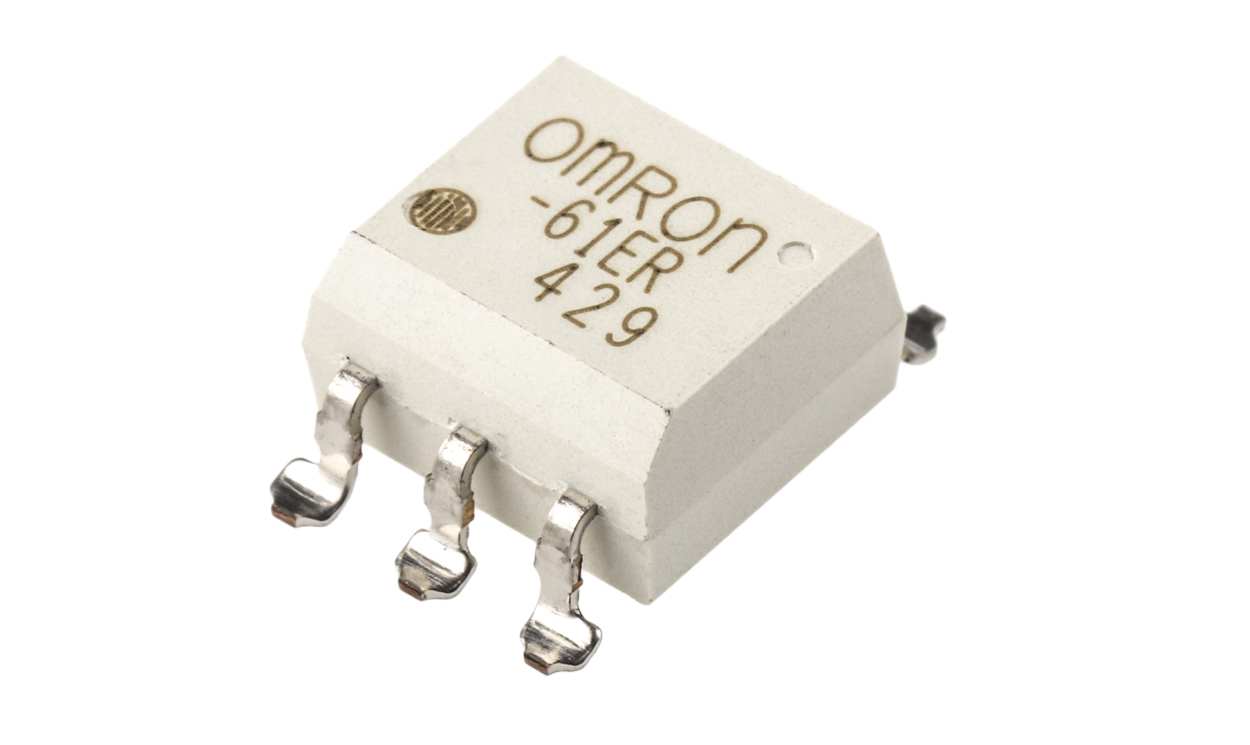

Omron G3VM-61ER, G3VM Series Solid State Relay, 2.5 A Load, Surface Mount, 60 V ac Load, 1.5 V Control

Name: Omron G3VM-61ER, G3VM Series Solid State Relay, 2.5 A Load, Surface Mount, 60 V ac Load, 1.5 V Control
Brand: OMRON
SKU: G3VM-61ER
Availability: OutOfStock

Part Number : G3VM-61ER

Availability: Sold out

Detailed Description
Specifications

G3VM MOSFET SSR

Solid-state relay with MOSFET output and photo-LED input
Combines advantages of mechanical and solid state technology
Low on-resistance and output capacitance
Long life
Wide range of models available
Ideal for telecom solutions, including line seizing, switching, hook switching, line transformer control and other phone functions

G3VM-61ER MOS FET General Purpose Series SSR – Solid State Relay.

The G3VM-61ER MOS FET relay offers a wealth of benefits required from maintenance free relays. SPST-NO (normally open), DIP (dual inline) surface mounted package relay with 6-pin. This series relay is designed for switching minute analogue signals.

Features and Benefits G3VM-61ER SSR – Solid Sate Relay.

• MOS FET Solid state relay.
• Surface mounted relay terminals.
• DIP6 (dual in-line).
• SMT
• Contact form SPST-NO 1a (normally open).
• 6 Relay terminals.
• Load voltage 60 V.
• Load current 3000 mA max.
• Maximum resistance with output ON 0.65 Ω.
• Current leakage when relay is open 10 nA max.
• Capacitance between terminals 400 pF.
• SSR -Turn ON time 1.5 ms max.
• SSR -Turn OFF time 0.4 ms max.
• Dielectric strength between I/O 2500 Vrms.
• Switches minute analogue signals.
• RoHS Compliant.

Additional Features G3VM-61ER General Purpose SSR – Solid State Relay.

• Long operational life.
• Small leakage current.
• SSR has excellent shock resistance.
• High insulation.
• Silent operation.
• High-speed switching.
• Control the micro analogue signal.
• Photo-LED input.
• Status output.
• Compact
• Operating temperature, ambient -20°C to +60°C, no icing or condensation.

Other Application Examples.

• Test and measurement equipment.
• Security equipment.

Brand	Omron
Maximum Load Current	2.5 A
Mounting Type	Surface Mount
Maximum Load Voltage	60 V ac
Minimum Load Voltage	0 V ac
Maximum Control Voltage	1.5 V
Switching Type	DC
Control Voltage Range	Maximum of 1.48 V
Minimum Load Current	2.5 A
Terminal Type	PCB Pin
Contact Configuration	SPST
Output Device	MOSFET
Package Style	SMD6
Load Voltage Range	0 → 60V ac
Series	G3VM
Dimensions	7.12 x 6.4 x 3.65mm
Depth	6.4mm
Maximum Operating Temperature	+85°C
Operating Temperature Range	-20 → +85°C
Off State Leakage Current	30 mA
