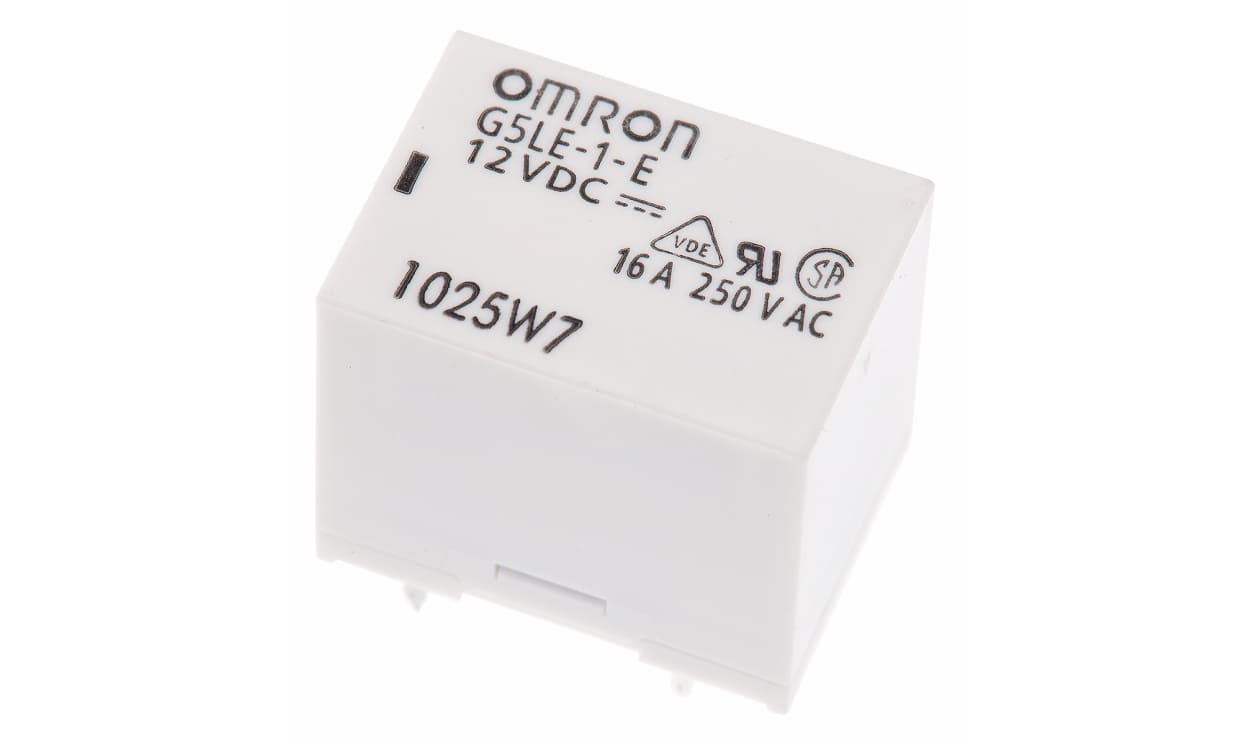

Name: Omron G5LE-1-E DC12, PCB Mount Power Relay, 12V dc Coil, 16A Switching Current, SPDT
Brand: OMRON
SKU: G5LE-1-E DC12
Availability: OutOfStock

Omron G5LE-1-E DC12, PCB Mount Power Relay, 12V dc Coil, 16A Switching Current, SPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G5LE-1-E DC12, PCB Mount Power Relay, 12V dc Coil, 16A Switching Current, SPDT

Part Number : G5LE-1-E DC12

Availability: Sold out

Detailed Description
Specifications

G5LE Series

Subminiature 'sugar cube' format
Ideal for control circuit applications
High current switching capacity
Withstands impulse of up to 4500V
Dimensions; L22.5xW16.5xH19 mm

Approvals

UL, CSA, VDE

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	SPDT
Mounting Type	PCB Mount
Switching Current	16A
Number of Poles	1
Series	G5LE
Latching	No
Terminal Type	Through Hole
Maximum Switching Voltage AC	250V ac
Length	22.5mm
Coil Resistance	360Ω
Coil Power	400mW
Minimum Operating Temperature	-25°C
Isolation Coil To Contact	2kV ac
Height	19mm
Maximum Operating Temperature	+85°C
Contact Material	Silver Alloy
Life	1000000 (Electrical) cycles, 10000000 (Mechanical) cycles
Depth	16.5mm
