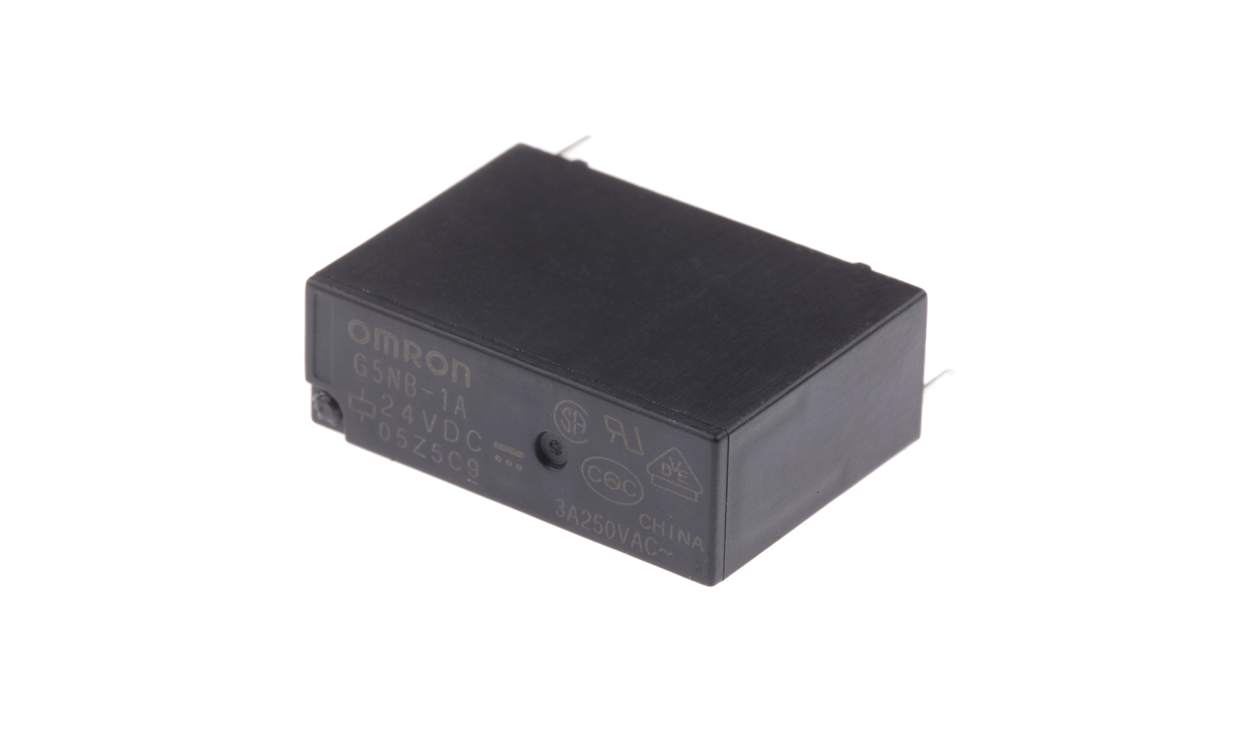

Name: Omron G5NB-1A DC24, PCB Mount Power Relay, 24V dc Coil, 3A Switching Current, SPST
Brand: OMRON
SKU: G5NB-1A DC24
Availability: OutOfStock

Omron G5NB-1A DC24, PCB Mount Power Relay, 24V dc Coil, 3A Switching Current, SPST

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G5NB-1A DC24, PCB Mount Power Relay, 24V dc Coil, 3A Switching Current, SPST

Part Number : G5NB-1A DC24

Availability: Sold out

Detailed Description
Specifications

G5NB Series

Compact slim body (20.5x15.3x7.2mm) single pole relays with high isolation between coil and contacts
High withstand voltage rating of 10kV (1.2 x 50μs) between coil and contacts
Highly efficient magnetic circuit for high sensitivity (200 mW)
Tracking resistance: CTI>250

Approvals

UL, CSA, VDE

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	SPST
Mounting Type	PCB Mount
Switching Current	3A
Number of Poles	1
Series	G5NB
Latching	No
Terminal Type	Through Hole
Length	20.5mm
Coil Resistance	2880Ω
Height	15.3mm
Maximum Operating Temperature	+70°C
Minimum Operating Temperature	-40°C
Depth	7.2mm
Maximum Switching Power DC	90 W
Maximum Switching Power AC	375VA
Application	Power
