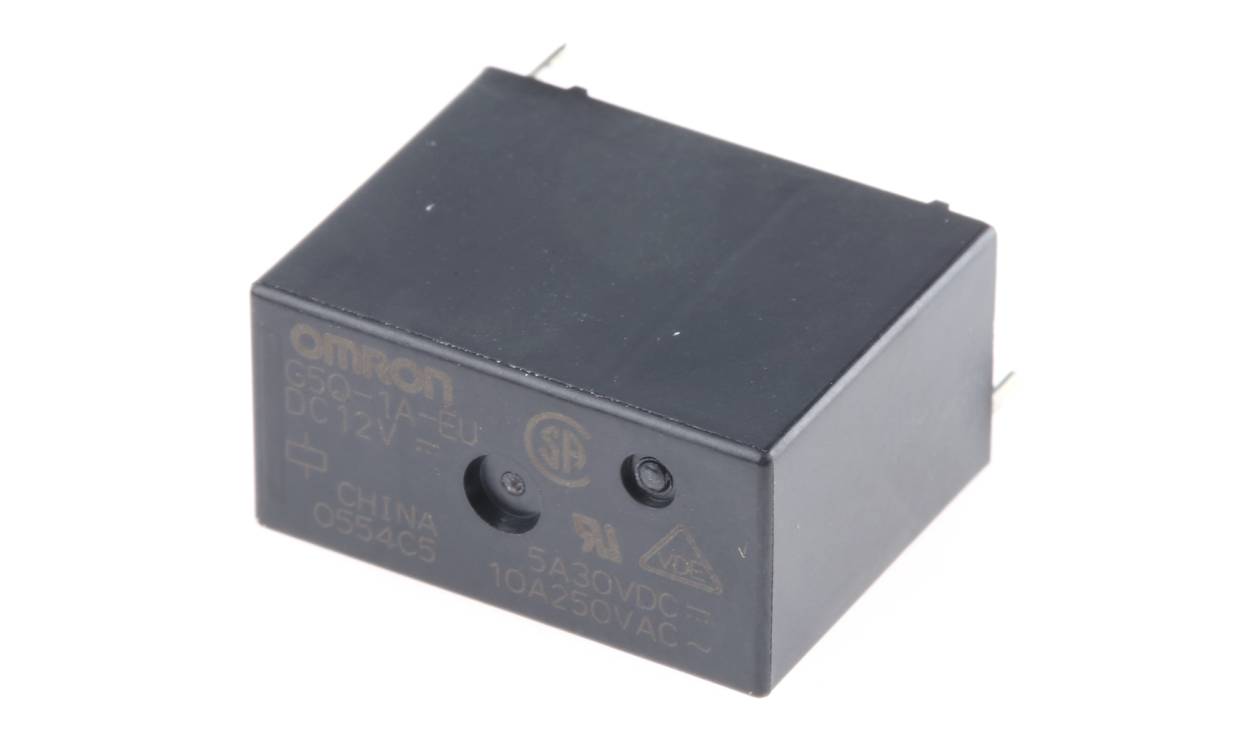

Name: Omron G5Q-1A-EU DC12 (TY), PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPST
Brand: OMRON
SKU: G5Q-1A-EU DC12 (TY)
Availability: OutOfStock

Omron G5Q-1A-EU DC12 (TY), PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPST

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G5Q-1A-EU DC12 (TY), PCB Mount Power Relay, 12V dc Coil, 10A Switching Current, SPST

Part Number : G5Q-1A-EU DC12 (TY)

Availability: Sold out

Detailed Description
Specifications

G5Q-EU Series (European Version)

Compact single pole relay with high isolation between coil and contacts
Withstand impulse voltage of 8,000V between the coil and contacts
Low power consumption
UL class F coil insulation
Tracking resistance: CTI > 250
Ideal for HVAC applications

Approvals

UL, CSA, VDE

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	SPST
Mounting Type	PCB Mount
Switching Current	10A
Number of Poles	1
Series	G5Q
Latching	No
Terminal Type	Through Hole
Length	20.3mm
Coil Resistance	720Ω
Coil Power	200mW
Maximum Operating Temperature	+85°C
Isolation Coil To Contact	4kV ac
Depth	10.3mm
Life	10000000 (Electrical) cycles
Height	16.2mm
Contact Material	Silver Alloy
Minimum Operating Temperature	-40°C
Maximum Switching Power DC	150 W
