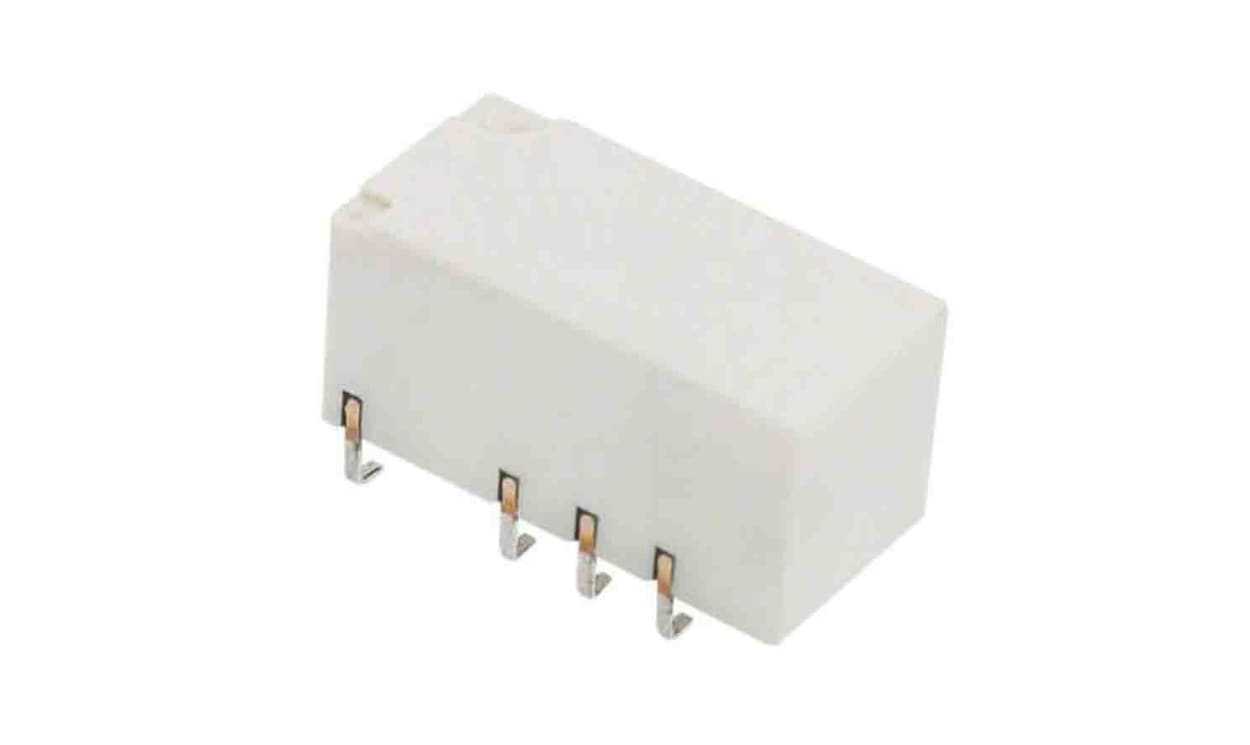

Name: Omron G5Q-1A4 DC24 (TY), Surface Mount Signal Relay, 24V dc Coil, 1A Switching Current, DPDT
Brand: OMRON
SKU: G5Q-1A4 DC24 (TY)
Availability: OutOfStock

Omron G5Q-1A4 DC24 (TY), Surface Mount Signal Relay, 24V dc Coil, 1A Switching Current, DPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G5Q-1A4 DC24 (TY), Surface Mount Signal Relay, 24V dc Coil, 1A Switching Current, DPDT

Part Number : G5Q-1A4 DC24 (TY)

Availability: Sold out

Detailed Description
Specifications
Downloads

The Omron Electronic Components Surface Mounting Relay with the worlds smallest mounting area. This Sub miniature model is as small as 5.2 (H) x 6.5 (W) x 10 (L) mm which is ideal for high-density mounting. Surface mounting terminal models incorporate a u

5% to 85% operating humidity
-40°C to +70°C operating temperature
100mO maximum contact resistance

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	DPDT
Mounting Type	Surface Mount
Maximum Switching Current DC	1 A
Maximum Switching Voltage AC	125V ac
Maximum Switching Voltage DC	60V dc
Series	HFD3
Maximum Switching Power DC	90 W
Latching	No
Length	10mm
Depth	6.5mm
Height	5.4mm
Dimensions	10 x 6.5 x 5.4mm
Terminal Type	Surface Mount
Number of Poles	2
Switching Current	1A
Isolation Coil To Contact	2.5kV ac
Contact Material	Silver Alloy
Features	Low Dimension And Weight Combines To Improve Mounting Efficiency, RoHS Complaint
