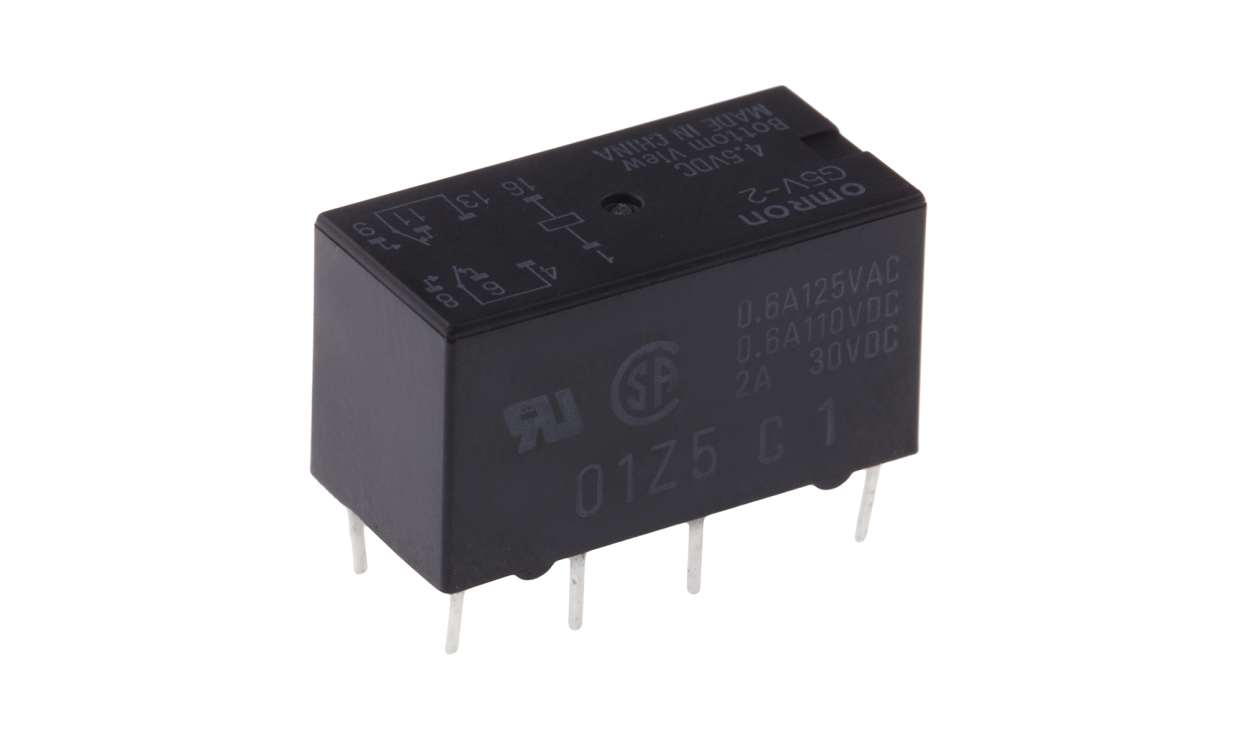

Name: Omron G5V-2 4.5DC, PCB Mount Signal Relay, 4.5V dc Coil, 2A Switching Current, DPDT
Brand: OMRON
SKU: G5V-2 4.5DC
Availability: OutOfStock

Omron G5V-2 4.5DC, PCB Mount Signal Relay, 4.5V dc Coil, 2A Switching Current, DPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G5V-2 4.5DC, PCB Mount Signal Relay, 4.5V dc Coil, 2A Switching Current, DPDT

Part Number : G5V-2 4.5DC

Availability: Sold out

Detailed Description
Specifications
Downloads

G5V-2 Series

Fully sealed for immersion cleaning
Conforms to BT Type 47 requirements, BT specification 4597
Ideal for signal switching applications

Approvals

UL, CSA conforms to FCC part 68

Brand	Omron
Coil Voltage	4.5V dc
Contact Configuration	DPDT
Mounting Type	PCB Mount
Maximum Switching Current DC	2 A
Maximum Switching Voltage AC	125V
Maximum Switching Voltage DC	125V
Maximum Switching Power DC	60 W
Series	MT
Latching	No
Length	20.2mm
Depth	10mm
Height	11mm
Dimensions	20.5 x 10 x 11.5mm
Terminal Type	Through Hole
Number of Poles	2
Application	Signal
Switching Current	2A
Coil Power	580mW
Minimum Operating Temperature	-25°C
