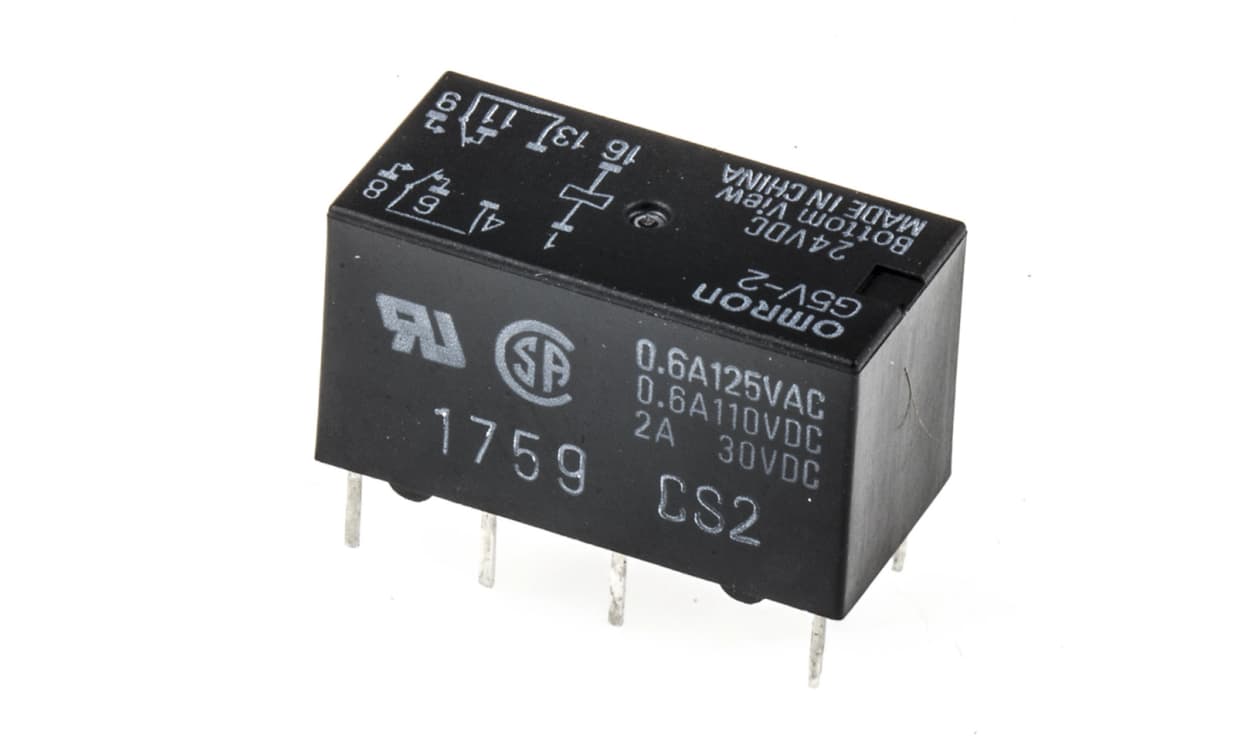

Omron G5V-2 DC24, PCB Mount Signal Relay, 24V dc Coil, 2A Switching Current, DPDT
Part Number : G5V-2 DC24
For pricing, please contact our experts.
G5V-2 Series
Fully sealed for immersion cleaning
Conforms to BT Type 47 requirements, BT specification 4597
Ideal for signal switching applications
Conforms to BT Type 47 requirements, BT specification 4597
Ideal for signal switching applications
Approvals
UL, CSA conforms to FCC part 68
G5V-2 24DC Ultra-Miniature Low Signal Non-Latching Relay.
The Omron G5V-2 24DC is a small non-latching SPDT relay ideal for signal circuits. A completely sealed package providing excellent resistance to eternal environments. PCB terminals, switching power from 10 μA to 2 A plus 2 poles and high dielectric strength all add to this miniature relay.
Non-Latching Relay Features and Benefits.
• Standard relay.
• General purpose.
• Miniature size.
• Completely sealed.
• DPDT contacts.
• PCB Terminal.
• Bifurcated crossbar (Au-alloy+Ag).
• General purpose.
• Miniature size.
• Completely sealed.
• DPDT contacts.
• PCB Terminal.
• Bifurcated crossbar (Au-alloy+Ag).
Coil Rating.
• 24 V dc.
• Rated current 20.8 mA.
• Coil resistance 1152 Ω.
• Inductance Armature OFF 1.98 H, Armature ON 2.63 H
• Must operate voltage 75% max (of rated voltage).
• Must release voltage 5% min (of rated voltage).
• Max voltage 120% of rated voltage (at 23°C).
• Approx power consumption 500 mW.
• Rated current 20.8 mA.
• Coil resistance 1152 Ω.
• Inductance Armature OFF 1.98 H, Armature ON 2.63 H
• Must operate voltage 75% max (of rated voltage).
• Must release voltage 5% min (of rated voltage).
• Max voltage 120% of rated voltage (at 23°C).
• Approx power consumption 500 mW.
Contact Rating.
• Rated load 0.5 A (at 125 V ac), 2 A (at 30 V dc).
• Contact material Ag, Au-clad.
• Rated carry current 2 A.
• Switching current max 2 A.
• Switching voltage max 125 V ac, 125 V dc.
• Switching power max 62.5 VA, 60 W.
• Permissible load min 0.1 mA at 10 V dc.
• Contact material Ag, Au-clad.
• Rated carry current 2 A.
• Switching current max 2 A.
• Switching voltage max 125 V ac, 125 V dc.
• Switching power max 62.5 VA, 60 W.
• Permissible load min 0.1 mA at 10 V dc.
Additional Features of the G5V-2 24DC Miniature Non-Latching Relay.
• Contact resistance 50 mΩ.
• Dielectric strength 1000 V ac, 50/60 Hz (1 min between coil and contacts).
• Dielectric strength 750 V ac, 50/60 Hz (1 min between contacts of the same polarity).
• Vibration resistance – destruction and malfunction 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude).
• Shock resistance – destruction 1000 m/s².
• Shock resistance – malfunction 200 m/s².
• Operating temperature – ambient -25°C to 65°C (no icing).
• Approx weight 5 g.
• Dielectric strength 1000 V ac, 50/60 Hz (1 min between coil and contacts).
• Dielectric strength 750 V ac, 50/60 Hz (1 min between contacts of the same polarity).
• Vibration resistance – destruction and malfunction 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude).
• Shock resistance – destruction 1000 m/s².
• Shock resistance – malfunction 200 m/s².
• Operating temperature – ambient -25°C to 65°C (no icing).
• Approx weight 5 g.
Applications Include.
• Telecommunication.
• Security equipment.
• Security equipment.
