Omron G5V-2-H1 48DC, PCB Mount Signal Relay, 48V dc Coil, 1A Switching Current, DPDT

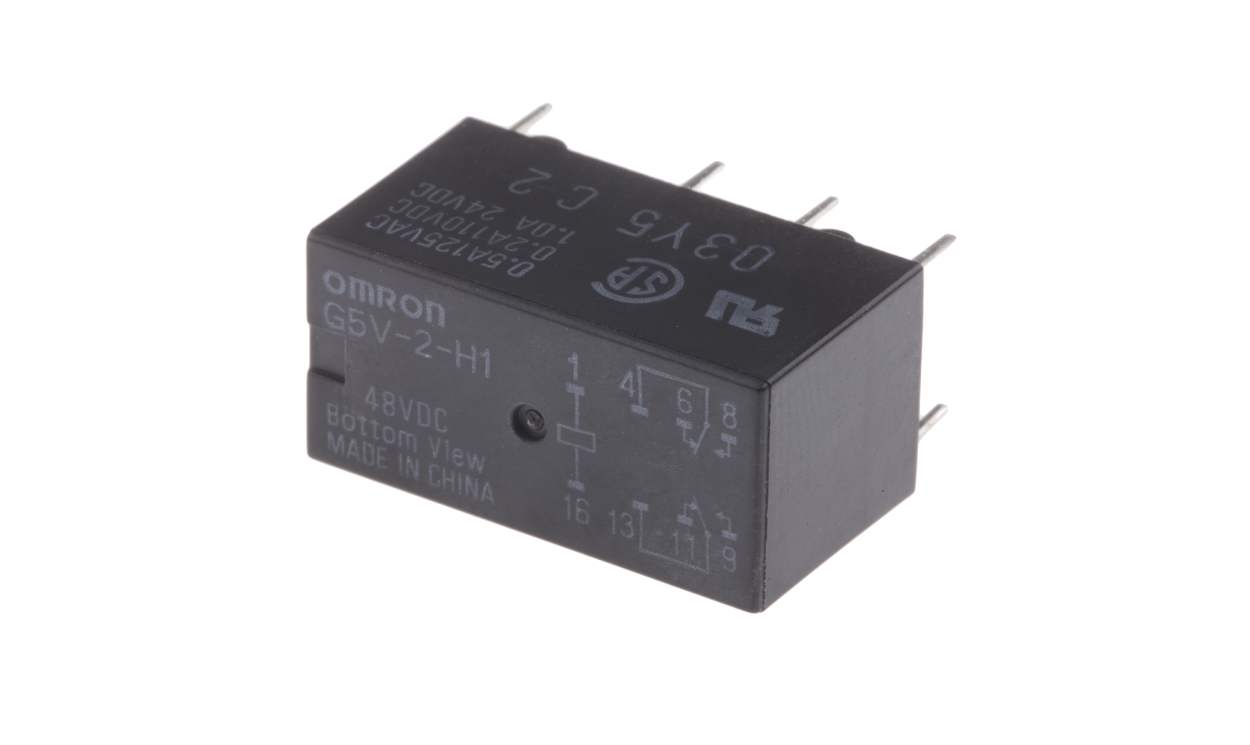

Name: Omron G5V-2-H1 48DC, PCB Mount Signal Relay, 48V dc Coil, 1A Switching Current, DPDT
Brand: OMRON
SKU: G5V-2-H1 48DC
Availability: OutOfStock

Part Number : G5V-2-H1 48DC

Availability: Sold out

Detailed Description
Specifications
Downloads

G5V-2-H Series

Miniature PCB relays with high-sensitivity coil for signal circuits
H1 types are ultra high sensitivity
Fully sealed
Conform to FCC Part 68 requirements

Approvals

UL, CSA

Brand	Omron
Coil Voltage	48V dc
Contact Configuration	DPDT
Mounting Type	PCB Mount
Maximum Switching Current DC	1 A
Maximum Switching Voltage AC	125V
Maximum Switching Voltage DC	125V
Maximum Switching Power DC	24 W
Series	Cradle N
Latching	No
Length	20.5mm
Depth	10mm
Height	11.5mm
Dimensions	20.5 x 10 x 11.5mm
Terminal Type	Through Hole
Switching Current	1A
Application	Signal
Number of Poles	2
Minimum Operating Temperature	-25°C
Contact Material	Gold Plated
