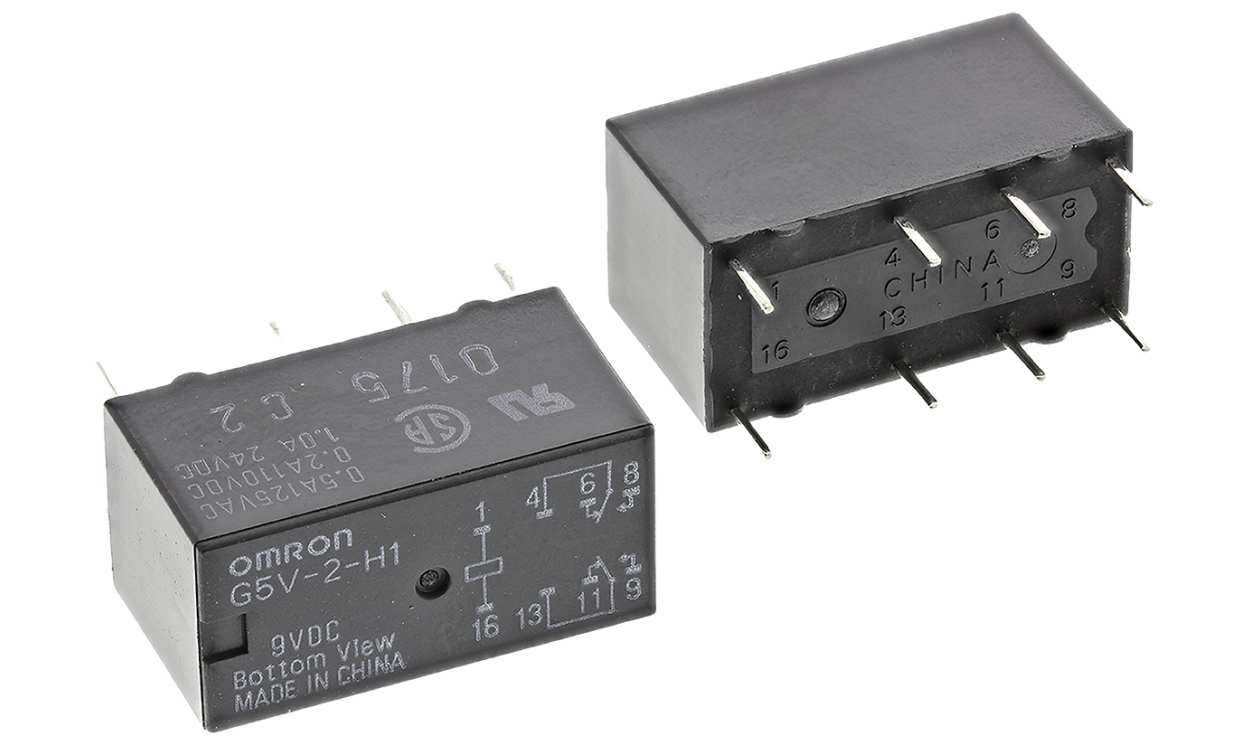

Name: Omron G5V-2-H1 9DC, PCB Mount Signal Relay, 9V dc Coil, 1A Switching Current, DPDT
Brand: OMRON
SKU: G5V-2-H1 9DC
Availability: OutOfStock

Omron G5V-2-H1 9DC, PCB Mount Signal Relay, 9V dc Coil, 1A Switching Current, DPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G5V-2-H1 9DC, PCB Mount Signal Relay, 9V dc Coil, 1A Switching Current, DPDT

Part Number : G5V-2-H1 9DC

Availability: Sold out

Detailed Description
Specifications
Downloads

G5V-2-H Series

Miniature PCB relays with high-sensitivity coil for signal circuits
H1 types are ultra high sensitivity
Fully sealed
Conform to FCC Part 68 requirements

Approvals

UL, CSA

Brand	Omron
Coil Voltage	9V dc
Contact Configuration	DPDT
Mounting Type	PCB Mount
Maximum Switching Current DC	1 A
Maximum Switching Voltage AC	125V
Maximum Switching Voltage DC	125V
Series	IM
Maximum Switching Power DC	24 W
Length	20.5mm
Latching	No
Depth	10mm
Height	11.5mm
Dimensions	20.5 x 10 x 11.5mm
Terminal Type	Through Hole
Number of Poles	2
Application	Signal
Switching Current	1A
Maximum Operating Temperature	+70°C
Electrical Life	10^5 Operations
