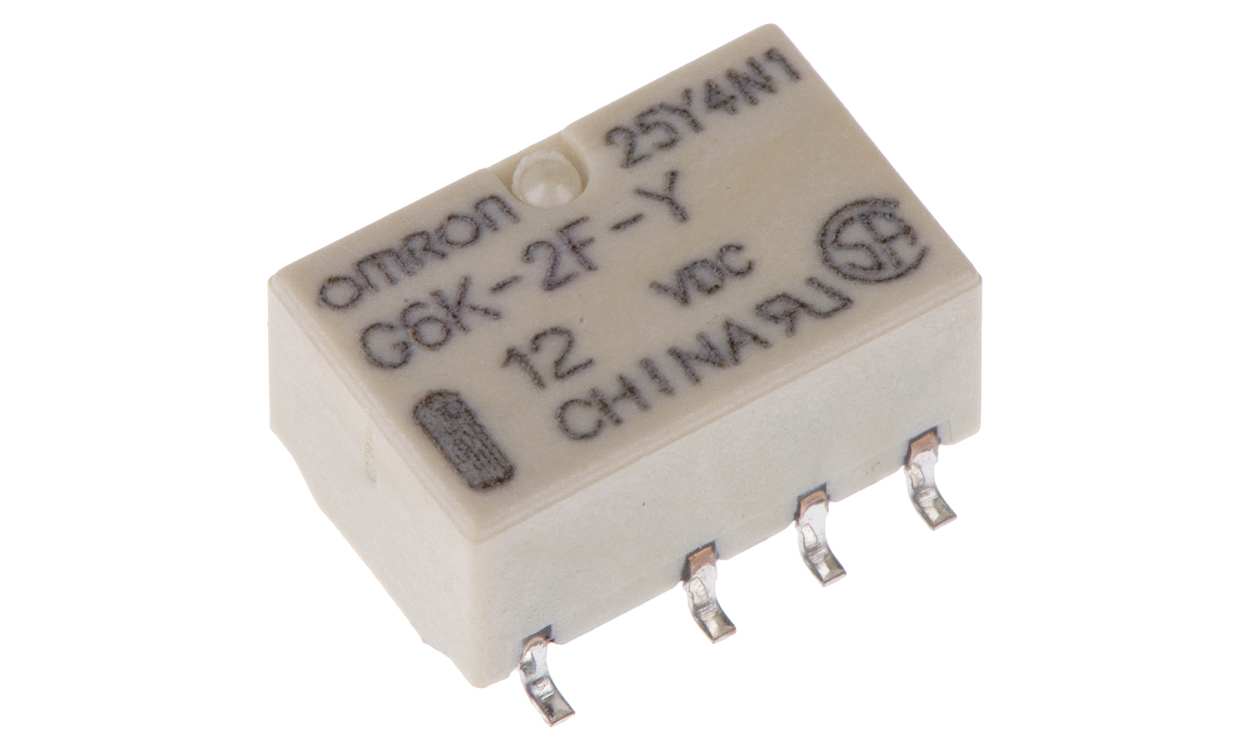

Omron G6K-2F-Y DC12, Surface Mount Signal Relay, 12V dc Coil, 1A Switching Current, DPDT

Name: Omron G6K-2F-Y DC12, Surface Mount Signal Relay, 12V dc Coil, 1A Switching Current, DPDT
Brand: OMRON
SKU: G6K-2F-Y DC12
Availability: OutOfStock

Part Number : G6K-2F-Y DC12

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron Non-Latching Relay

The Omron G6K series surface mount non-latching relay has a contact configuration of DPDT. It is actuated with 12VDC coil voltage and 1A switching current. It incorporates a unique terminal structure with high infrared irradiation efficiency, ensuring excellent soldering characteristics.

Features and Benefits

Fully sealed construction
Coil power is 100mW
Coil resistance is 1.315Kohm
Low power consumption of approximately 100mW

Certifications

UL approved
CSA certified

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	DPDT
Mounting Type	Surface Mount
Maximum Switching Current DC	1 A
Maximum Switching Voltage AC	125V ac
Maximum Switching Voltage DC	60V dc
Series	G6K
Maximum Switching Power DC	60 W
Latching	No
Length	10mm
Depth	6.5mm
Height	5.2mm
Dimensions	10 x 6.5 x 5.2mm
Terminal Type	Surface Mount
Switching Current	1A
Application	Signal
Number of Poles	2
Features	Low Dimension And Weight Combines To Improve Mounting Efficiency, RoHS Complaint
Electrical Life	100000 Operations
