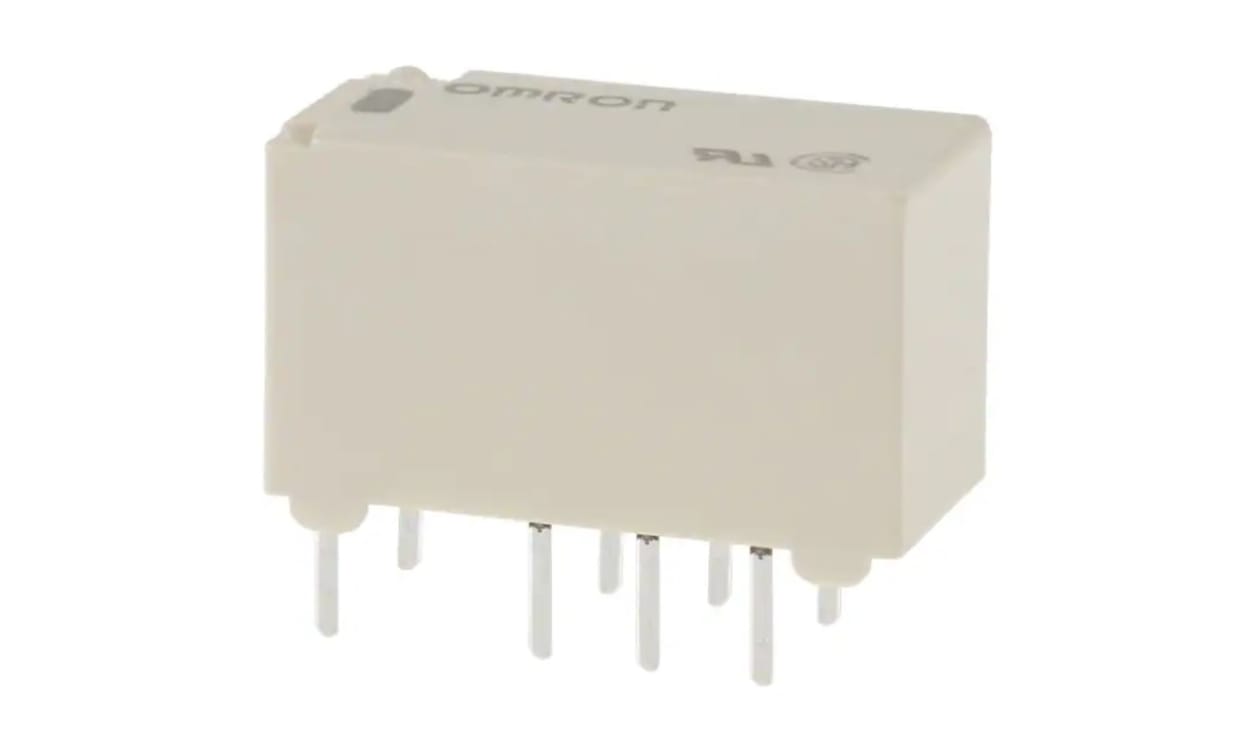

Omron G6S-2F DC12, Surface Mount Signal Relay, 12V dc Coil, 2A Switching Current, DPDT

Part Number : G6S-2F DC12

Availability: Sold out

Detailed Description
Specifications
Downloads

The Omron G6S Surface-mounting relay had 2-pole designed to switch 2A Signal Loads and DPDT contact form. The G6S surface-mounting relay has applications such as Telecommunication equipment , Measurement devices , Office automation machines , Audio-visual products. , Security equipment , Building automation equipment , Industrial equipment , Amusement equipment and Home appliances.

Long terminals for ideal for soldering and mounting reliability
Fully sealed

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	DPDT
Mounting Type	Surface Mount
Maximum Switching Current DC	2 A
Maximum Switching Voltage AC	250V
Maximum Switching Voltage DC	220V
Series	HFD3-V
Maximum Switching Power DC	60 W
Latching	No
Length	15mm
Depth	7.5mm
Height	9.2mm
Dimensions	14.8 x 9.2 x 7.3mm
Terminal Type	Surface Mount
Number of Poles	2
Switching Current	2A
Electrical Life	100000 Operations
Minimum Operating Temperature	-40°C
Coil Power	140mW
