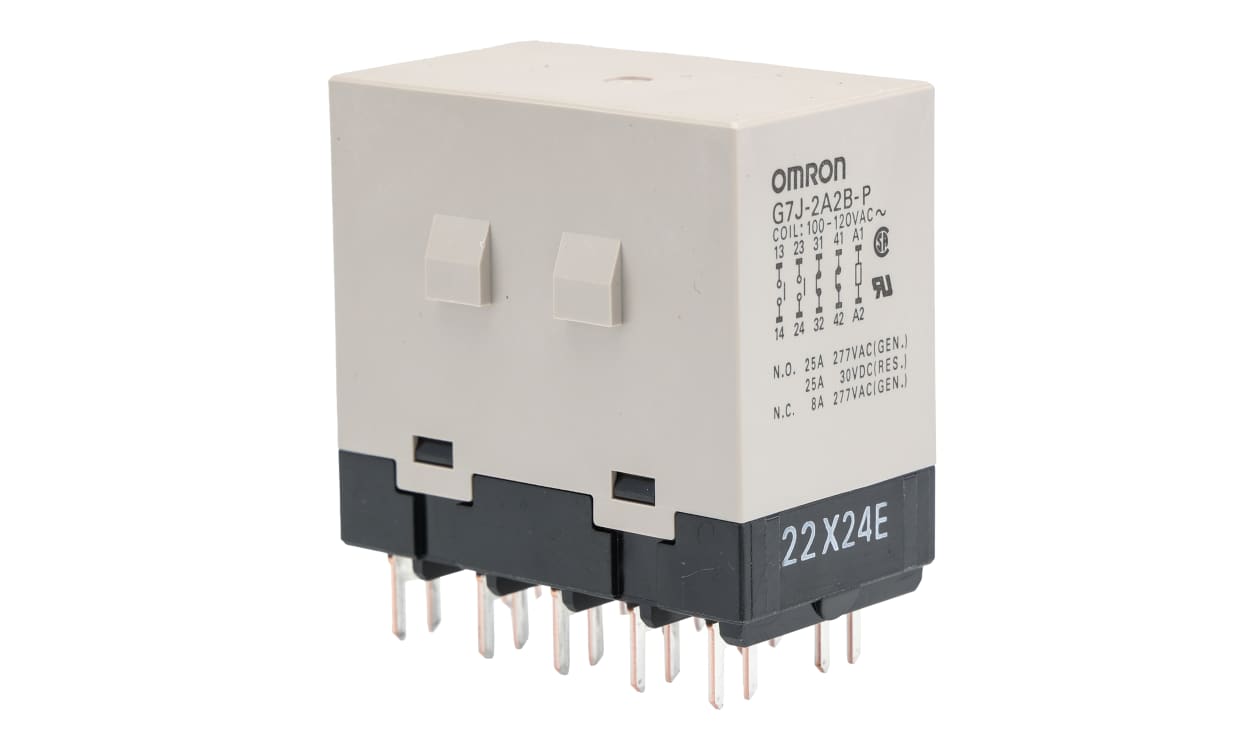

OMRON G7J-2A2B-P AC100/120 | PCB Mount Power Relay | 100 V AC Coil, DPDT, 25 A

Name: OMRON G7J-2A2B-P AC100/120 | PCB Mount Power Relay | 100 V AC Coil, DPDT, 25 A
Brand: OMRON
SKU: G7J-2A2B-P AC100/120
Availability: InStock

Part Number : G7J-2A2B-P AC100/120

Built around a 100 V AC coil, the OMRON G7J-2A2B-P AC100/120 provides DPDT switching with a 25 A current rating. As a non-latching G7J-series relay, the G7J-2A2B-P AC100/120 uses PCB mounting and through-hole terminals.

Contact material: silver
Dimensions: length 51.5 mm, depth 33.5 mm, height 51 mm
Coil power: 2.6 W
Maximum switching voltage: 220 V AC / 30 V DC
Maximum switching current: 25 A AC / 8 A DC
Operating temperature: −25 °C to +60 °C

Availability: low stock

Detailed Description
Specifications
Downloads

Omron G7J Series Power Relay, 100V AC Coil Voltage, 25A Switching Current - G7J-2A2B-P AC100/120

This power relay is a robust and versatile device designed for general-purpose applications. With a coil voltage of 100V AC, this PCB mount relay offers reliable performance across a wide range of industrial settings. Measuring 51.5mm in length, 33.5mm in depth, and 51mm in height, it features a double pole double throw (DPDT) configuration, ensuring flexibility in circuit design.

Features & Benefits

• Supports a maximum operating temperature of +60 °C
• Through-hole terminal type for secure connections
• Maximum switching power rating of 5.5 kVA for AC operations
• Contact material made from silver for enhanced conductivity

Applications

• Used for automation systems requiring reliable switching
• Ideal for PCB-mounted in electronic devices
• Utilised in control circuits for motors and machinery
• Suitable for general electrical installations in various industries

What current ratings can be handled by this relay?

It can manage a maximum switching current of 25A for AC and 8A for DC, making it suitable for various applications.

How does the coil power specification affect operation?

The coil power of 2.6VA ensures efficient operation, minimising energy consumption while maintaining performance.

What are the advantages of using silver contacts in relays?

Silver contacts enhance conductivity and reduce resistance, resulting in improved reliability and durability during operation.

In what circumstances might the temperature range be a concern?

The specified operating temperature range from -25°C to +60°C allows for versatility, but extreme temperatures could risk performance.

How does the DPDT configuration benefit circuit designs?

The DPDT configuration allows for multiple switching options, making it ideal for controlling different circuits with a single relay.

Brand	Omron
Coil Voltage	100V ac
Contact Configuration	DPDT
Mounting Type	PCB Mount
Switching Current	25A
Number of Poles	2
Series	G7J
Latching	No
Terminal Type	Through Hole
Maximum Switching Voltage AC	220V ac
Maximum Switching Voltage DC	30V dc
Maximum Switching Current DC	8 A
Maximum Switching Current AC	25 A
Length	51.5mm
Coil Power	2.6W
Height	51mm
Depth	33.5mm
Contact Material	Silver
Maximum Operating Temperature	+60°C
Minimum Operating Temperature	-25°C
