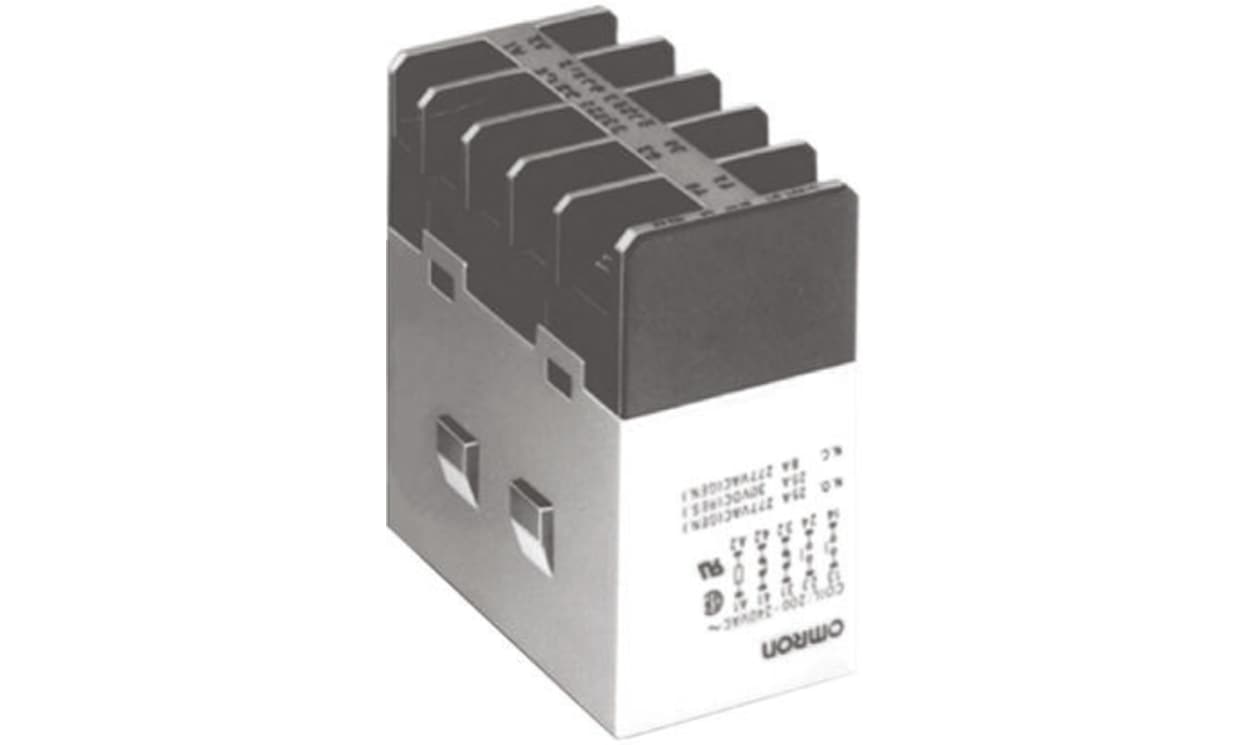

OMRON G7J-3A1B-B DC24 | Panel Mount Power Relay | 24 V DC Coil, 3PDT, 25 A

Name: OMRON G7J-3A1B-B DC24 | Panel Mount Power Relay | 24 V DC Coil, 3PDT, 25 A
Brand: OMRON
SKU: G7J-3A1B-B DC24
Availability: InStock

Part Number : G7J-3A1B-B DC24

Rated for 25 A switching current, the OMRON G7J-3A1B-B DC24 is a 3PDT power relay driven by a 24 V DC coil. The G7J-3A1B-B DC24 belongs to the G7J series (non-latching) and comes with panel mounting and screw terminals.

Coil resistance: 288 Ω
Maximum switching power: 5.5 kVA (AC) / 750 W (DC)
Operating temperature: −25 °C to +60 °C
Dimensions: length 51.5 mm, depth 34.5 mm, height 64 mm
Application category: general purpose

Availability: low stock

Detailed Description
Specifications
Downloads

PCB Mounting & Screw Terminal - Power Relays - G7J Series

High capacity, high dielectric strength, multi-pole relays ideal for 3-phase motor control applications and resistive loads
No contact chattering for momentary voltage drops up to 50% of rated voltage
Withstands more than 4kV between contacts that are of different polarity and between the coil and contacts
Flame-resistant material (UL94V-0)
Push-to-test button lets user check contact operation
PCB mounted, screw terminal or quick connect types available

Approvals

UL; CSA

Brand	Omron
Coil Voltage	24V dc
Contact Configuration	3PDT
Mounting Type	Panel Mount
Switching Current	25A
Latching	No
Series	G7J
Terminal Type	Screw
Length	51.5mm
Coil Resistance	288Ω
Depth	34.5mm
Minimum Operating Temperature	-25°C
Maximum Operating Temperature	+60°C
Height	64mm
Maximum Switching Power AC	5.5 kVA
Maximum Switching Power DC	750 W
Application	General Purpose
