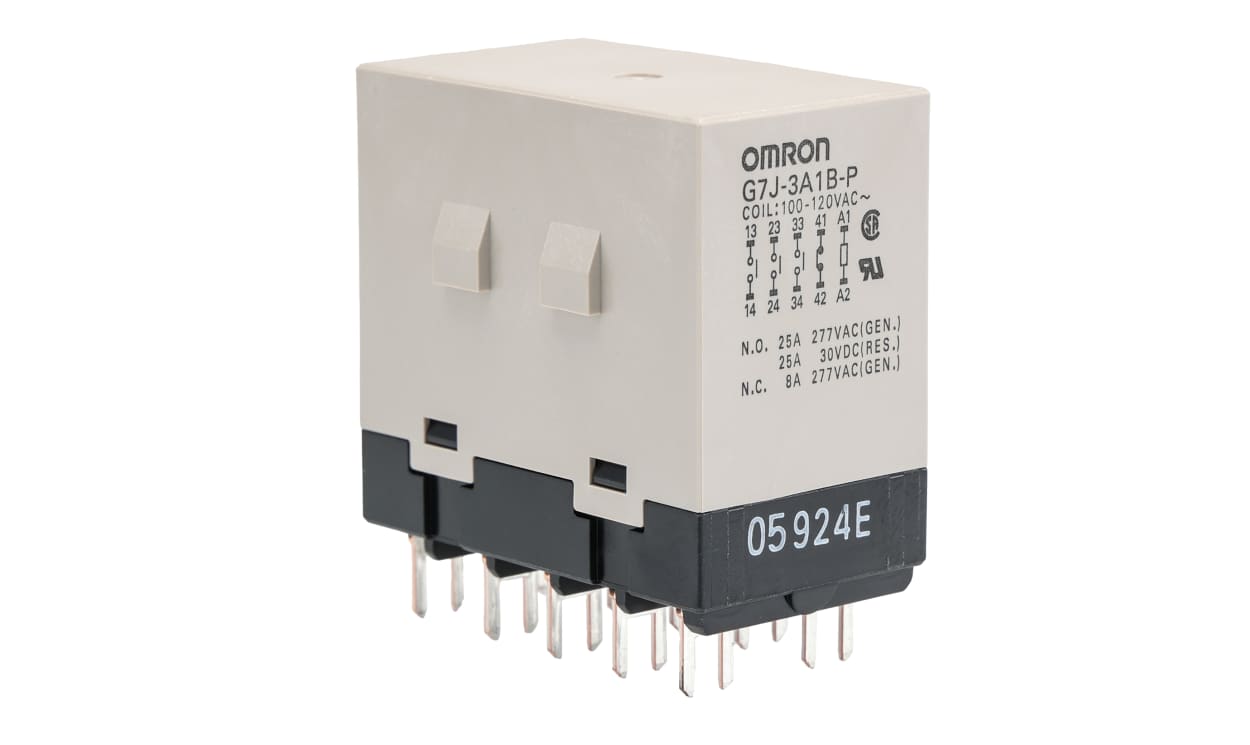

Name: Omron G7J-3A1B-P AC100/120, PCB Mount Power Relay, 100V ac Coil, 25A Switching Current, 3PDT
Brand: OMRON
SKU: G7J-3A1B-P AC100/120
Availability: OutOfStock

Omron G7J-3A1B-P AC100/120, PCB Mount Power Relay, 100V ac Coil, 25A Switching Current, 3PDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G7J-3A1B-P AC100/120, PCB Mount Power Relay, 100V ac Coil, 25A Switching Current, 3PDT

Part Number : G7J-3A1B-P AC100/120

Availability: Sold out

Detailed Description
Specifications

Omron G7J Series Power Relay, 100V AC Coil Voltage, 25A Switching Current - G7J-3A1B-P AC100/120

This power relay is designed for reliable general-purpose use in various electrical applications. Featuring a coil voltage of 100V AC, it supports a maximum switching power of 5.5 kVA for alternating current and 750W for direct current, making it suitable for demanding environments. The relay is built with precision, measuring 51.5mm in length, 33.5mm in depth, and 51mm in height, optimising space efficiency in PCB mounting.

Features & Benefits

• Utilises a 3PDT contact configuration for versatile connections
• Achieves a high switching current capacity of 25A
• Capable of handling a maximum switching voltage of 220V AC
• Constructed from silver contact material for enhanced conductivity

Applications

• Ideal for automation systems requiring reliable switching
• Utilised in control panels for various electrical circuits
• Suitable for industrial machinery where high switching currents are needed
• Applied in HVAC systems for efficient power management
• Compatible with various electronic devices needing precise relay functions

How does the coil voltage affect the performance of this relay?

The coil voltage determines the relay's energisation level, which is crucial for reliable operation. A 100V AC coil voltage ensures effective switching, allowing the relay to operate under specified conditions without the risk of overloading.

What type of mounting is best suited for this relay?

The PCB mount design allows for straightforward installation onto printed circuit boards, facilitating compact configurations and stable connections in electronic systems.

What are the implications of the specified maximum operating temperature range?

Operating between -25°C to +60°C allows for use in diverse environments, ensuring the relay remains functional under extreme ambient conditions often encountered in industrial settings.

How does the contact configuration enhance functionality?

The 3PDT arrangement enables multiple circuits to be managed effectively, offering flexibility in switching applications and simplifying complex electrical setups by controlling various paths from a single relay.

Brand	Omron
Coil Voltage	100V ac
Contact Configuration	3PDT
Mounting Type	PCB Mount
Switching Current	25A
Latching	No
Series	G7J
Terminal Type	Through Hole
Maximum Switching Voltage AC	220V ac
Maximum Switching Voltage DC	30V dc
Maximum Switching Current DC	8 A
Maximum Switching Current AC	25 A
Length	51.5mm
Coil Power	2.6W
Contact Material	Silver
Height	51mm
Minimum Operating Temperature	-25°C
Depth	33.5mm
Maximum Operating Temperature	+60°C
Maximum Switching Power DC	750 W

Omron G7J-3A1B-P AC100/120, PCB Mount Power Relay, 100V ac Coil, 25A Switching Current, 3PDT

Omron G7J-3A1B-P AC100/120, PCB Mount Power Relay, 100V ac Coil, 25A Switching Current, 3PDT

Omron G7J Series Power Relay, 100V AC Coil Voltage, 25A Switching Current - G7J-3A1B-P AC100/120

Features & Benefits

Applications

How does the coil voltage affect the performance of this relay?

What type of mounting is best suited for this relay?

What are the implications of the specified maximum operating temperature range?

How does the contact configuration enhance functionality?
