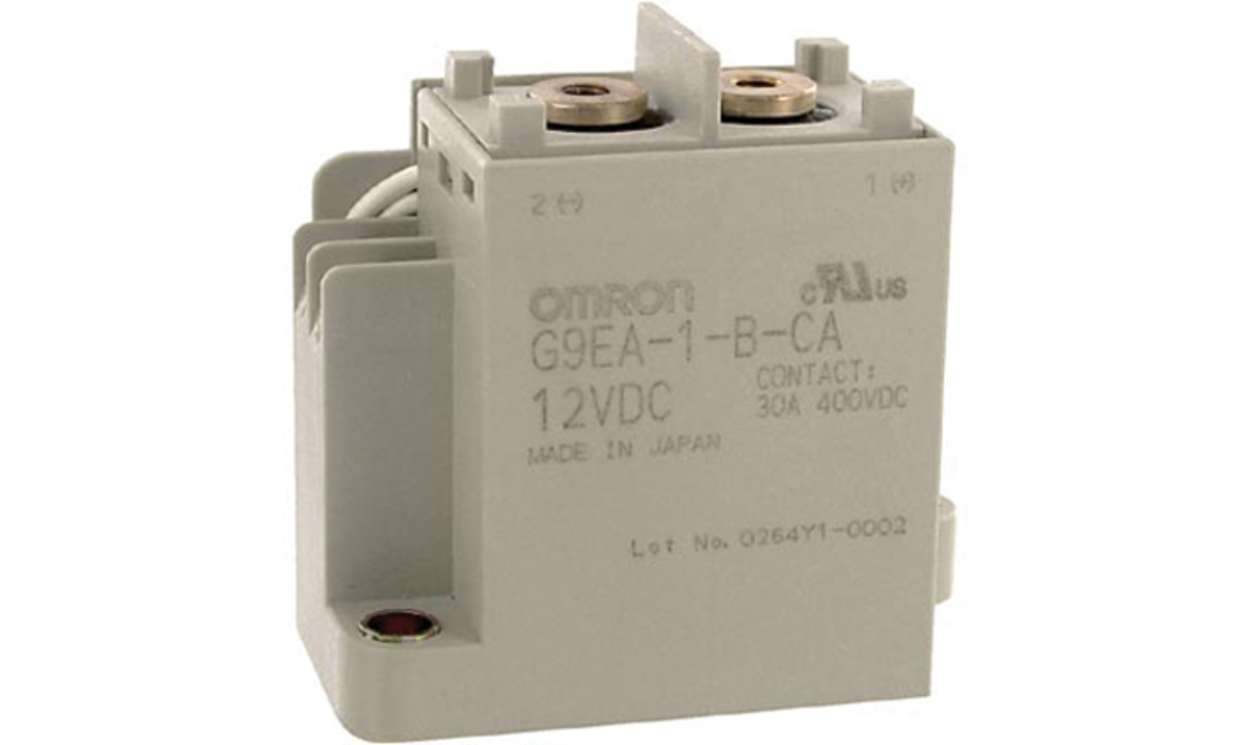

Name: Omron G9EA-1-B-CA-DC12, Power Relay, 12V dc Coil, 80A Switching Current, SPST
Brand: OMRON
SKU: G9EA-1-B-CA-DC12
Availability: OutOfStock

Omron G9EA-1-B-CA-DC12, Power Relay, 12V dc Coil, 80A Switching Current, SPST

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G9EA-1-B-CA-DC12, Power Relay, 12V dc Coil, 80A Switching Current, SPST

Part Number : G9EA-1-B-CA-DC12

Availability: Sold out

Detailed Description
Specifications

Omron Non-Latching Relay

The Omron G9EA series surface mount non-latching relay has a contact configuration of SPNO. It is actuated with 12VDC coil voltage and 80A switching current. This DC power relay is capable of interrupting high capacity DC loads while enabling compact, low-noise and safe applications. It has a switching and driving section that are gas-injected and hermetically sealed, allowing the relay to interrupt high-capacity loads.

Features and Benefits

Capable of switching 400V 60A DC loads and interrupting 600A at 300VDC (maximum)
Coil resistance is 26.2ohm
Coil power is 5.5W
Coil to contact isolation is 2.5kVAC
Downsizing and optimum design allow no restrictions on the mounting direction
Screw terminal type

Certifications

CSA certified
UL approved

Brand	Omron
Coil Voltage	12V dc
Contact Configuration	SPST
Switching Current	80A
Number of Poles	1
Latching	No
Terminal Type	Screw
Maximum Switching Voltage AC	400V ac
Maximum Switching Voltage DC	400V dc
Length	73mm
Coil Resistance	26.2Ω
Coil Power	5.5W
Series	G9EA
Minimum Operating Temperature	-40°C
Isolation Coil To Contact	2.5kV ac
Height	67.2mm
Life	1000 Operations
Maximum Operating Temperature	+85°C
Depth	36mm
