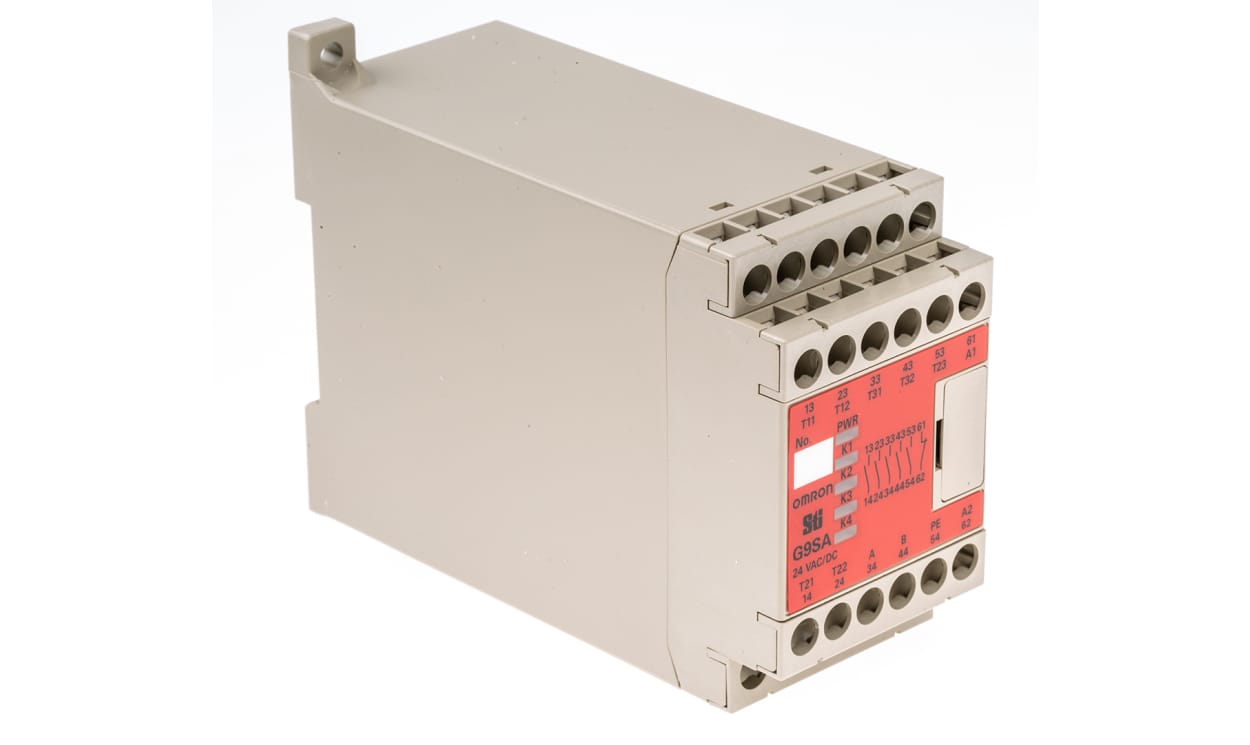

Name: Omron G9SA-501 AC/DC24, G9SA 1 Auxiliary Contacts Safety Relay 24V ac/dc, Single/Dual-Channel 5 Safety Contacts
Brand: OMRON
SKU: G9SA-501 AC/DC24
Availability: OutOfStock

Omron G9SA-501 AC/DC24, G9SA 1 Auxiliary Contacts Safety Relay 24V ac/dc, Single/Dual-Channel 5 Safety Contacts

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G9SA-501 AC/DC24, G9SA 1 Auxiliary Contacts Safety Relay 24V ac/dc, Single/Dual-Channel 5 Safety Contacts

Part Number : G9SA-501 AC/DC24

Availability: Sold out

Detailed Description
Specifications

Omron G9SA Series Safety Relay, 24V AC/DC Supply Voltage, 5 Safety Contacts - G9SA-501 AC/DC24

This safety relay is designed to enhance safety in various automated systems. Its emergency stop function ensures an immediate halt during critical situations. Suitable for environments with strict safety protocols, it complies with various safety standards, making it a crucial component for effective safety management in automation.

Features & Benefits

• Five safety contacts provide added protection
• Supports both single-channel and two-channel inputs
• Auxiliary contact offers additional operational versatility
• Achieves performance level e per ISO 13849-1
• Facilitates easy integration into existing safety systems
• OFF-delay models provide flexibility in safety management

Applications

• Utilised with industrial machinery for emergency stop functionality
• Applicable in automated assembly lines to prevent accidents
• Suitable for robotics requiring rapid safety responses
• Implemented in maintenance situations where safety protocols are essential
• Ideal for machine control systems that need reliable safety relays

What power supply is required for operation?

The device operates on a 24V AC/DC power supply for effective functionality.

Can it be used in tandem with other safety devices?

Yes, it can be integrated with various safety sensors and relays for optimal performance.

How can the OFF-delay time be adjusted?

The OFF-delay time can be modified using the dedicated switch on the model.

What measures should be taken for its installation?

Ensure that all wiring adheres to the recommended specifications and guidelines to prevent malfunctions.

Is it compatible with DIN track mounting systems?

Yes, it supports both DIN track and screw mounting options for flexible installation.

Standards

EN 954-1, EN 60204-1, UL 508, CSA C22.2 No 14, EN 55011 group 1 class A, EN 50082-2 group 1.

Brand	Omron
Supply Voltage	24V ac/dc
Number of Channels	1, 2
Safety Contacts	5
Function	Emergency Stop
Auxiliary Contacts	1
Safety Category ISO 13849-1	4
PL ISO 13849-1	e
Standards Met	CE, CSA
Depth	111mm
Width	45mm
Series	G9SA
Length	76mm
Performance Level	e
