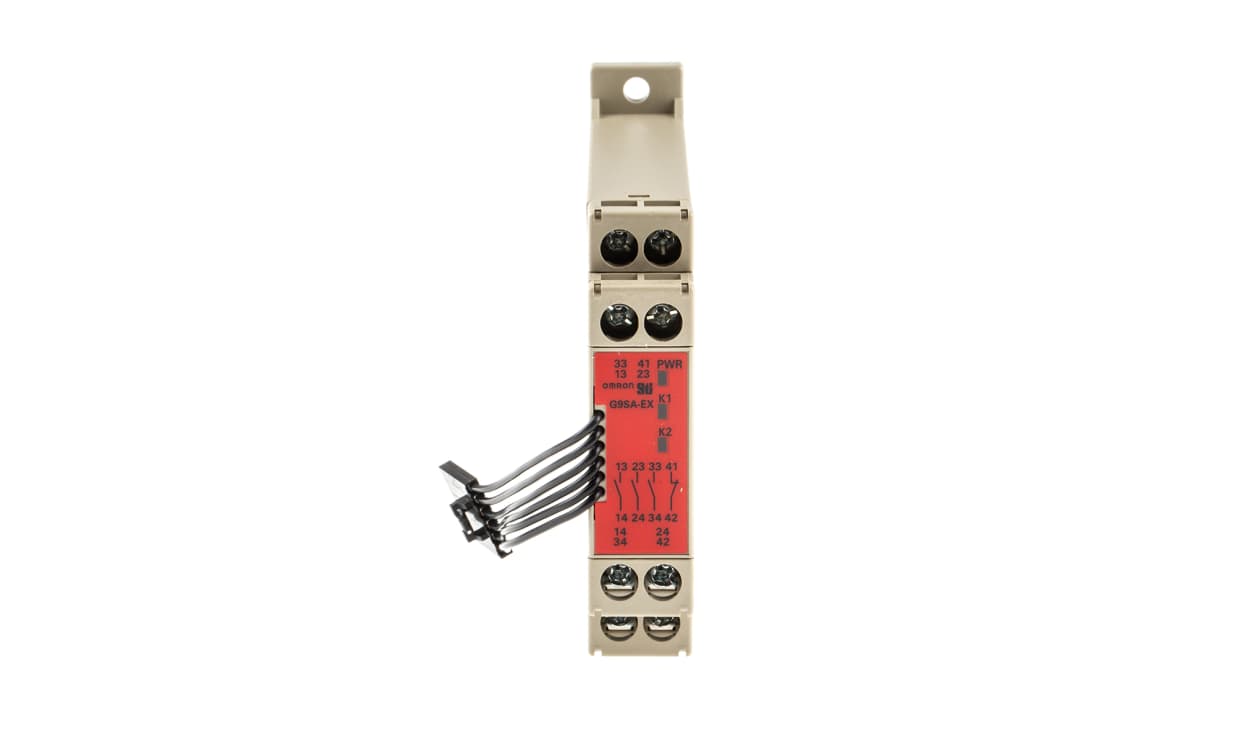

OMRON G9SA-EX301 | Safety Output Module | 2 Outputs, 3NO/1NC, 24 V DC

Name: OMRON G9SA-EX301 | Safety Output Module | 2 Outputs, 3NO/1NC, 24 V DC
Brand: OMRON
SKU: G9SA-EX301
Availability: InStock

Part Number : G9SA-EX301

The OMRON G9SA-EX301 is a G9SA series output module with 2 outputs, a 3NO/1NC contact arrangement and a 24 V DC supply, designed for DIN rail mounting.

Outputs: 2 (no inputs)
Contacts: 3NO/1NC
Supply voltage: 24 V DC; power rating 1.7 W
DIN rail mounting, screw terminals
Dimensions: 76 x 17.5 x 111 mm
For use with: G9SA

Availability: low stock

Detailed Description
Specifications
Downloads

Omron G9SA Series Output Module, 24V DC Supply Voltage, 1.7W Power Rating - G9SA-EX301

This output module is intended for automation applications, providing an interface for controlling electrical circuits. It operates at a 24 V DC supply voltage, suitable for various industrial environments. Its compact design facilitates easy installation on DIN rails, allowing flexibility in system configurations. The sturdy construction ensures durability and consistent performance in industrial settings, making it an important component for effective automation processes.

Features & Benefits

• 3NO/1NC output configuration for versatile control
• Power consumption of only 1.7 W for efficiency
• Easy mounting on DIN rails
• Secure connections via screw terminals
• Compact dimensions for flexible installation options
• Compatible with the G9SA series for straightforward integration

Applications

• Control motors in automated systems
• Safety applications requiring dependable output control
• Integration with various industrial sensors
• Machine control in assembly lines
• Applications necessitating precise output timing

Can it be used in with an existing automation system?

Yes, it integrates easily with existing systems.

What wiring specifications should I follow for connection?

Utilise stranded wiring of 0.75mm² to 1.5mm² for optimal performance.

Is it compatible with other modules in the series?

Yes, it works seamlessly with other G9SA series modules.

How to ensure a secure installation?

Tighten all screw connections to a torque of 0.78N·m to 1.18N·m.

What temperature range can I operate it in?

The operating temperature range is from -25 to 55°C.

Brand	Omron
Series	G9SA
Type	Output Module
For Use With	G9SA
Supply Voltage	24 V dc
Normal State Configuration	3NO/1NC
Number of Inputs	0
Number of Outputs	2
Power Rating	1.7 W
Mounting Style	DIN Rail
Dimensions	76 x 17.5 x 111 mm
Terminal Type	Screw
