Omron G9SB-200-D AC/DC24, G9SB 0 Auxiliary Contacts Safety Relay 24V ac/dc, Dual-Channel 2 Safety Contacts

Part Number : G9SB-200-D AC/DC24

Availability: Sold out

Detailed Description
Specifications

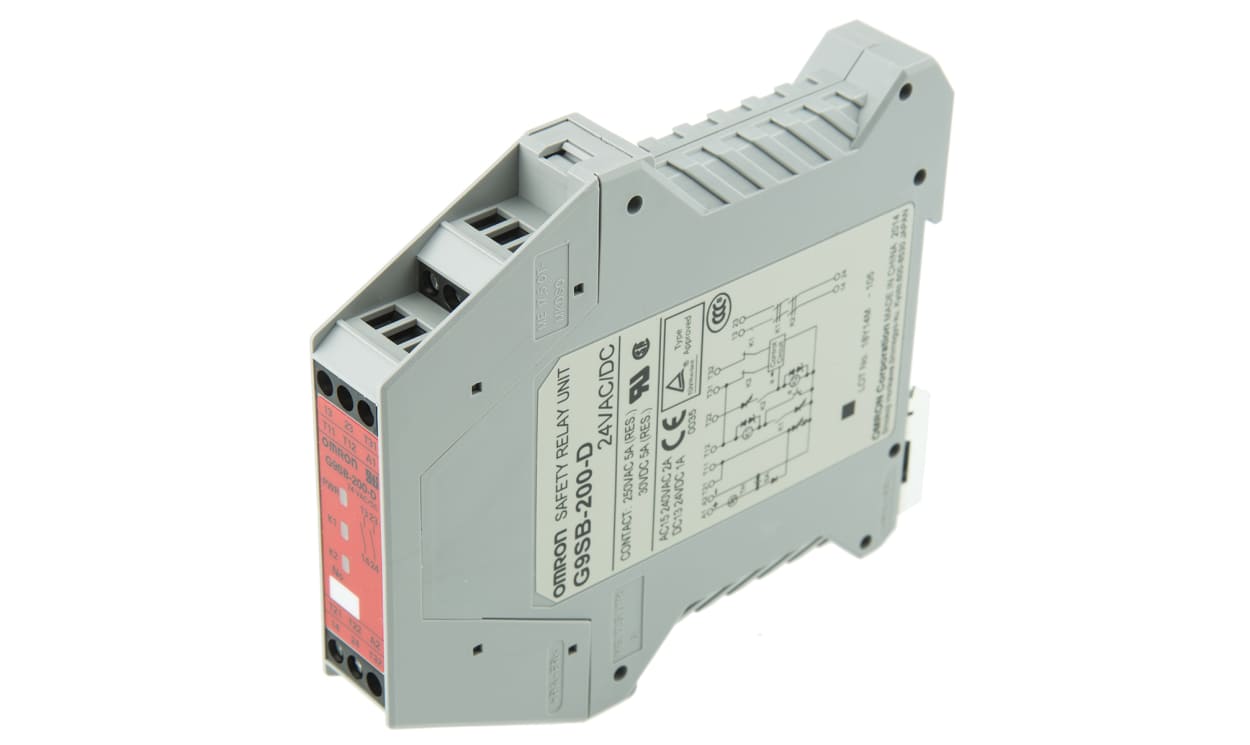

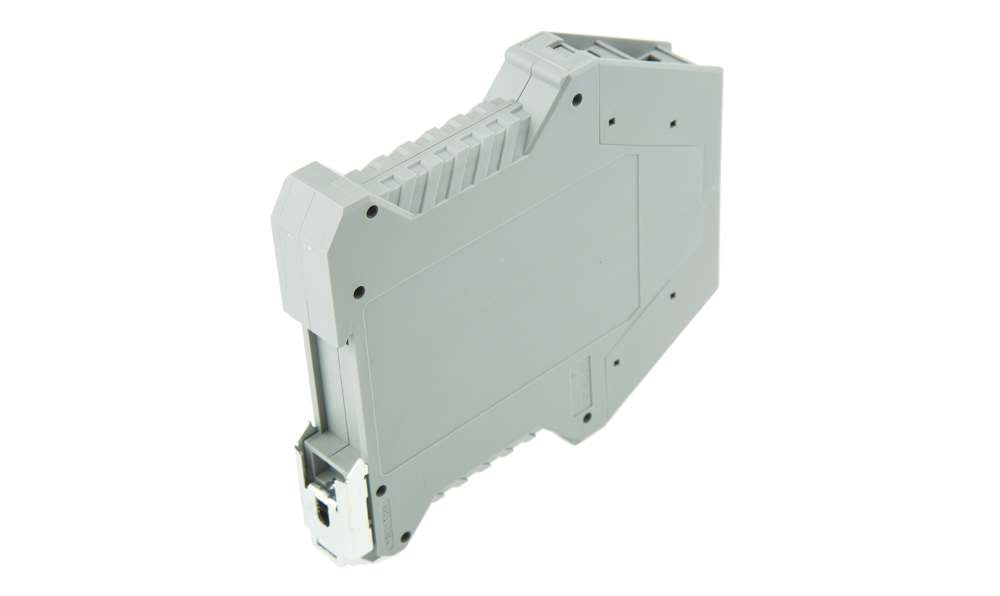

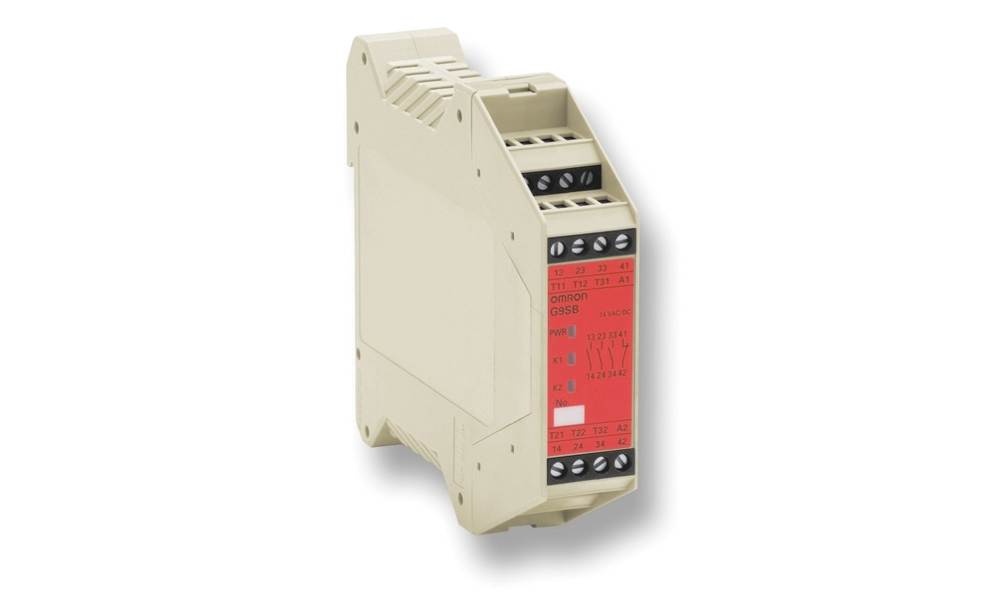

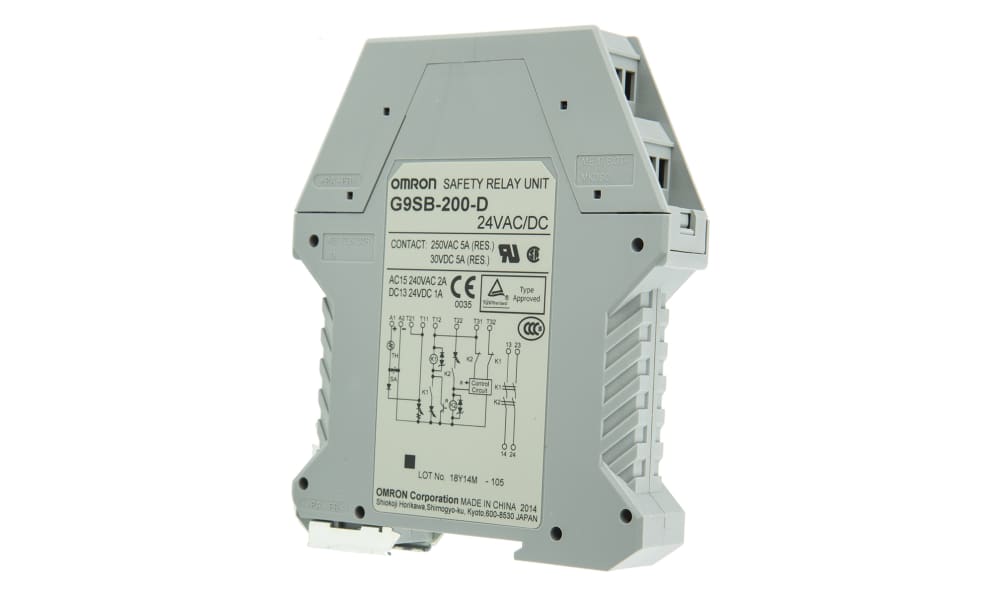

Omron G9SB Series Safety Relay, 24V AC/DC Supply Voltage, 2 Safety Contacts - G9SB-200-D AC/DC24

This safety relay is designed for advanced automation applications requiring high safety standards. With a slim profile of 17.5mm wide and a total length of 100mm, it operates at a supply voltage of 24V AC/DC, making it suitable for various industrial environments. The relay features two safety contacts and supports emergency stop functions, aligning with ISO 13849-1 category 4 requirements for superior operational safety.

Features & Benefits

• Compact design allows for space-saving installation
• Two channels enable efficient safety monitoring
• Manual reset function enhances operational safety
• Compliant with EN standards ensures reliability in use
• Supports DIN rail mounting for easy installation
• Low power consumption promotes energy efficiency

Applications

• Utilised in safety monitoring of emergency stop systems
• Employed with safety sensors like F3SN and F3SH
• Integrated into machinery with multiple safety zones
• Ideal for requiring strict adherence to safety protocols
• Used in industrial automation systems for enhanced safety measures

What are the connection requirements for this relay?

The relay requires no-voltage contact inputs for connections at terminals T11, T12, T21, and T22 to ensure optimal operation and that safety standards are maintained.

How does this product ensure compliance with safety regulations?

It meets ISO 13849-1 category 4 standards, ensuring robust safety functionality in automated environments, which reduces risks associated with equipment failure.

What operational features distinguish this relay from others?

Equipped with two safety contacts and a manual reset option, it offers enhanced control and reliability in safety-critical applications.

What is the ambient operating temperature range suitable for this device?

This relay functions effectively within an ambient temperature range of -25 to 55°C, accommodating diverse industrial conditions.

Can multiple units be mounted together without impacting performance?

Yes, multiple units can be mounted closely, but the total rated current should not exceed 3 A to avoid malfunctions.

Brand	Omron
Supply Voltage	24V ac/dc
Number of Channels	2
Safety Contacts	2
Function	Emergency Stop
Auxiliary Contacts	0
Reset Method	Manual
Safety Category ISO 13849-1	4
Depth	112 mm
Series	G9SB
Width	17.5mm
Length	100 mm
