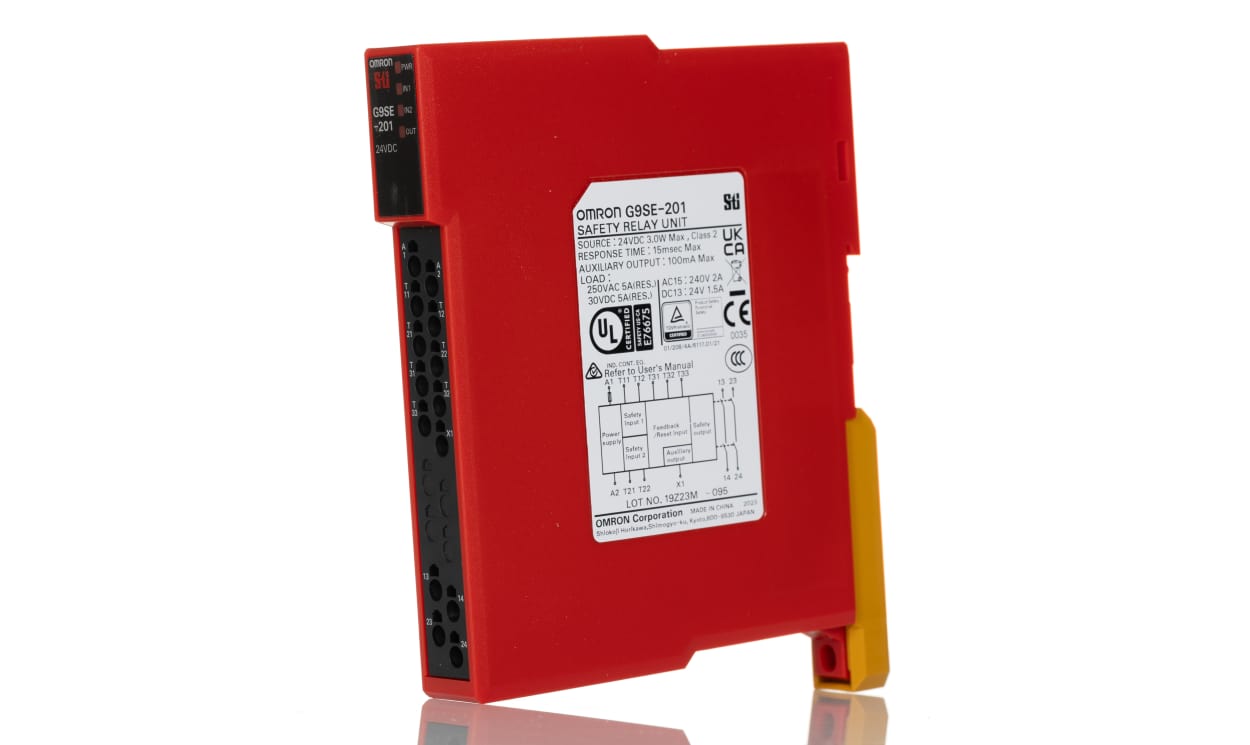

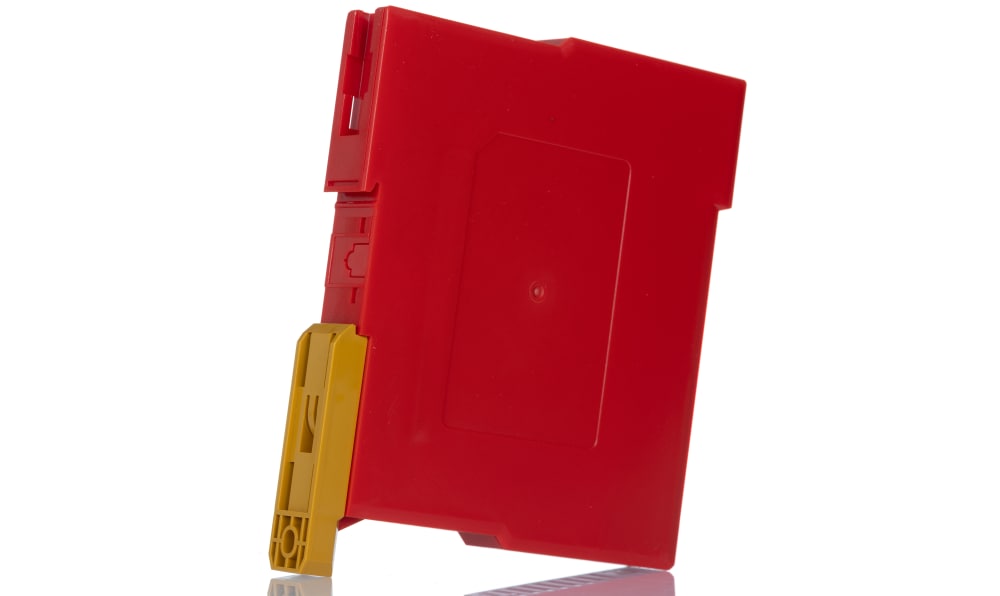

Name: Omron G9SE-201 DC24, G9SE 1 Auxiliary Contacts Safety Relay 24V dc, Dual-Channel 2 Safety Contacts
Brand: OMRON
SKU: G9SE-201 DC24
Availability: OutOfStock

Omron G9SE-201 DC24, G9SE 1 Auxiliary Contacts Safety Relay 24V dc, Dual-Channel 2 Safety Contacts

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G9SE-201 DC24, G9SE 1 Auxiliary Contacts Safety Relay 24V dc, Dual-Channel 2 Safety Contacts

Part Number : G9SE-201 DC24

Availability: Sold out

Detailed Description
Specifications

Omron Safety Relay, 1 Auxiliary Contact, 2 Channels - G9SE-201 DC24

This high-quality Omron Safety Relay is an essential component for ensuring safety in various industrial applications. With its advanced features and reliable performance, this safety relay provides efficient operation and peace of mind to users.

Features & Benefits

• Equipped with emergency stop, light beam/curtain, and safety switch/interlock functions for comprehensive safety monitoring
• Automatic and manual reset methods for added flexibility in operation
• Dual safety contacts and supply voltage of 24V dc ensure reliable performance in critical situations
• Compact design with simple front-side wiring using screw-less terminals for easy installation and maintenance
• Conforms to EN ISO13849-1:2008 PL e Safety Category 4 and other international safety standards for enhanced reliability.

Applications

• Ideal for emergency stop systems in manufacturing plants
• Suitable for light beam/curtain safety systems in warehouses
• Can be used for safety switch/interlock applications in high-traffic industrial environments

Can it provide multiple safety functions in one relay unit?

Yes, it is designed to offer emergency stop, light beam/curtain, and safety switch/interlock functions in a single unit.

Will it automatically reset in case of a safety breach?

Yes, the relay has both automatic and manual reset methods for added safety and convenience.

Is it suitable for high-traffic industrial environments?

Yes, it is specifically designed to meet the demands of high-traffic areas while ensuring utmost safety.

Brand	Omron
Supply Voltage	24V dc
Number of Channels	2
Safety Contacts	2
Function	Emergency Stop
Auxiliary Contacts	1
Reset Method	Automatic & Manual
Safety Category ISO 13849-1	4
PL ISO 13849-1	e
SIL IEC 61508	3
Terminal Type	Cage Clamp
Standards Met	CE
Safety Category	4
Series	G9SE
Depth	111.6mm
Width	17.5mm
Performance Level	e
Length	130mm
