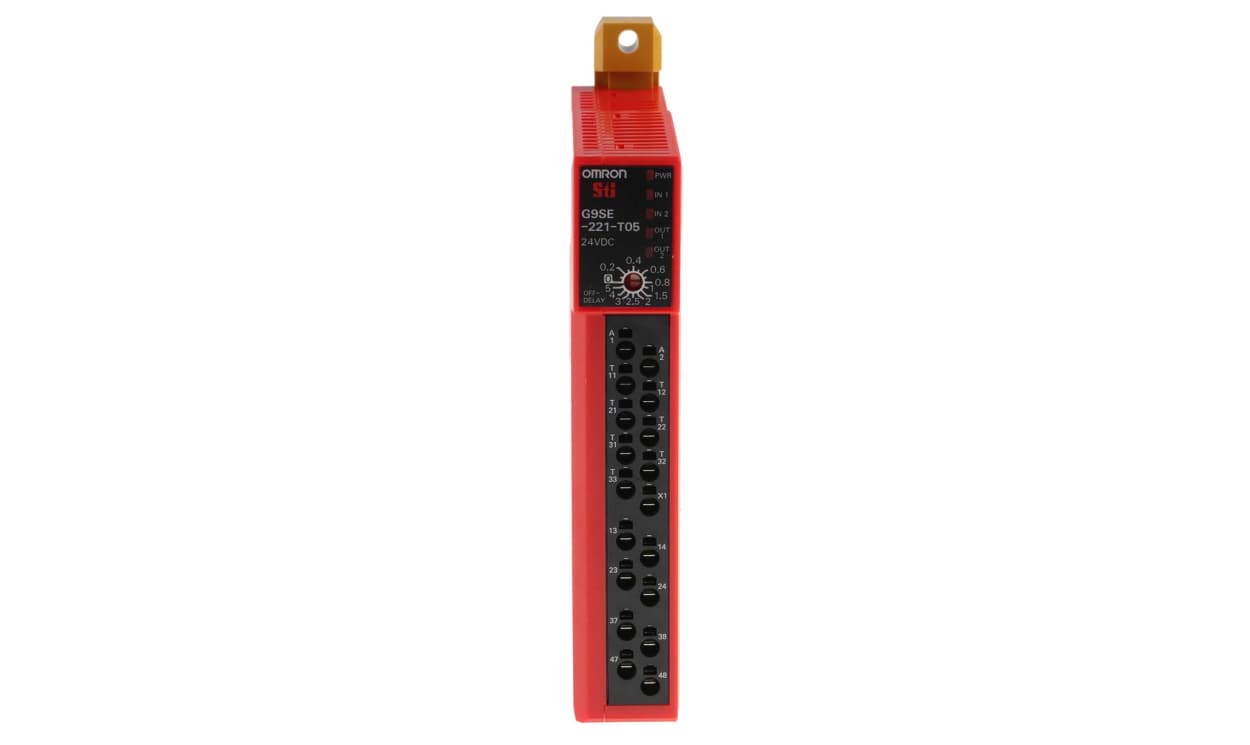

Name: Omron G9SE-221-T05 DC24, G9SE 1 Auxiliary Contacts Safety Relay 24V dc, Dual-Channel 2 Safety Contacts
Brand: OMRON
SKU: G9SE-221-T05 DC24
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron G9SE-221-T05 DC24, G9SE 1 Auxiliary Contacts Safety Relay 24V dc, Dual-Channel 2 Safety Contacts

Part Number : G9SE-221-T05 DC24

Availability: Sold out

Detailed Description
Specifications

Omron G9SE Safety Relay

The G9SE safety relay from Omron is ideal for a variety of safety input devices such as emergency stop switches, door switches, and light curtains. The screw-less terminals on the front of the G9SE makes installation quick and easy, even in a small control panel where space is limited. Intuitive LED indicators on the safety relay show the operating status of safety inputs and outputs, enabling faster and more accurate troubleshooting when the equipment stops.

Easy and reliable installation and maintenance
Simple wiring using screw-less terminals
Faster troubleshooting with status indicators
Applicable safety standards
OFF-delayed safety output models are also available (stock no. 890-3386 & 890-3395)
Slim design of only 17.5 or 22.5 mm saves space in the control panel

Standards

EN ISO 13849-1: PLe/Safety Category 4, IEC 62061: SIL3, EN81-1/-2.

Approvals

CE, UL, TUV, CCC.

OMRON Safety Relay, 4W Maximum Power Consumption, 6kV Impulse Withstand Voltage - G9SE Series - G9SE-221-T05 DC24

Bump up the protection on emergency stops with this safety relay from OMRON. It detects electrical issues in safety input devices such as access controls and light curtains and regulates them to cut damage and injury out of the equation. Installing the unit is done in a trice – simply insert the ferrules into the push-in terminals. They're front-facing, so there's no need to struggle with fiddly back wiring. This is a compact device measuring 144.5 (L) x 22.5 (W) x 112mm (D), making it a sure fit for smaller control panels.

Features & Benefits

• LED indicators show the status of inputs and outputs for simple troubleshooting
• 1,500V AC dielectric strength assures you it can handle heavy-duty industrial applications
• Vibration resistance helps prevent random disconnections and curbs downtime

Applications

• Automated factory processes
• Industrial kitchens
• Automatic doors
• Medical imaging systems

Can I handle this safety relay when it's on without getting shocked?

Yes, your fingers are safe. The housing of this relay carries an IP20 rating, meaning it keeps out objects larger than 12.5mm.

Can I easily track which terminals run which circuits?

Yes, thanks to clearly marked terminals, it's easy to trace a circuit.

Brand	Omron
Supply Voltage	24V dc
Number of Channels	2
Safety Contacts	2
Function	Time Delay
Auxiliary Contacts	1
Reset Method	Automatic & Manual
Safety Category ISO 13849-1	4
Terminal Type	Screw
Standards Met	CE, UL
Configurable	Yes
Depth	112mm
Width	22.5mm
Series	G9SE
Length	144.5mm

Omron G9SE-221-T05 DC24, G9SE 1 Auxiliary Contacts Safety Relay 24V dc, Dual-Channel 2 Safety Contacts
