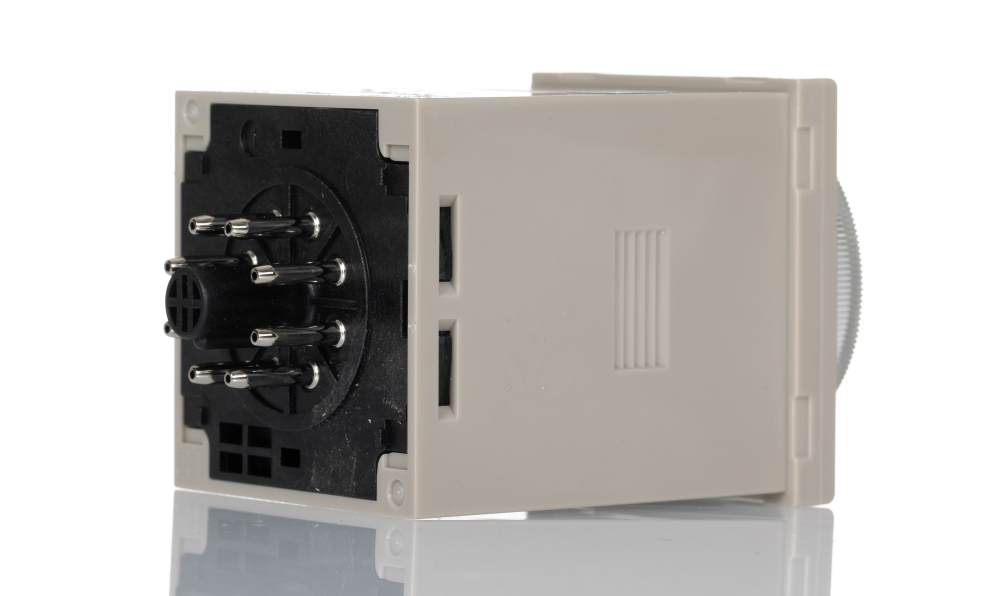

Omron H3CR-A8 100-240VAC/100-125VDC, H3CR Series Plug In Timer Relay, 100-240/100-125V ac/dc, 2-Contact, 0.05 → 1080000s, DPDT

Name: Omron H3CR-A8 100-240VAC/100-125VDC, H3CR Series Plug In Timer Relay, 100-240/100-125V ac/dc, 2-Contact, 0.05 → 1080000s, DPDT
Brand: OMRON
SKU: H3CR-A8 100-240VAC/100-125VDC
Availability: OutOfStock

Part Number : H3CR-A8 100-240VAC/100-125VDC

Timer, plug-in, 8-pin, 1/16DIN (48 x 48 mm), on/flicker-on/flicker-off/interval/one-shot-delay, 0.05s-300h, DPDT, 5 A

Availability: Sold out

Detailed Description
Specifications
Features

Omron Timer Relay, DPDT Contact Configuration, 100-240/100-125 V AC/DC Supply Voltage - H3CR-A8 AC100-240/DC100-125

This Omron product is a timer relay. It offers precise timing control for various applications, facilitating automation and efficiency in industrial processes.

Features & Benefits

• Adjustable time settings allow for flexible customisation
• Compact design ensures easy integration into existing systems, saving space and simplifying installation
• Reliable performance and durable construction ensure long-term functionality, minimizing downtime and maintenance costs

Applications

• Used in manufacturing plants to control the timing of various processes
• employed in building automation systems to regulate the timing of lighting fixtures

Can this timer relay be used for both ON-delay and OFF-delay timing functions?

Yes, the timer relay supports both ON-delay and OFF-delay timing functions, providing versatility for various applications.

What is the input voltage range supported by this timer relay?

The timer relay operates within a wide input voltage range, typically between 24V AC/DC and 240V AC, ensuring compatibility with diverse electrical systems.

Is the timer relay programmable, and does it feature a digital display for easy configuration?

Yes, the timer relay is programmable and often equipped with an intuitive digital display, simplifying setup and adjustment of timing parameters.

Brand	Omron
Supply Voltage	100-240/100-125V ac/dc
Mounting Type	Plug In
Mode of Operation	Flicker ON Start, Interval, ON Delay, One Shot
Time Range	0.05 → 1080000s
Number of Contacts	2
Number of Timer Functions	Timer Relay
Contact Configuration	DPDT
Maximum Current	150mA
Maximum Voltage	240V
Terminal Type	Plug In
Width	48mm
Minimum Voltage	100V
Depth	48mm
Maximum Operating Temperature	+55°C
Length	66.6mm
Series	H3CR
Contact Material	Ag Alloy
Minimum Operating Temperature	-10°C

Timer, plug-in, 8-pin, 1/16DIN (48 x 48 mm), on/flicker-on/flicker-off/interval/one-shot-delay, 0.05s-300h, DPDT, 5 A
