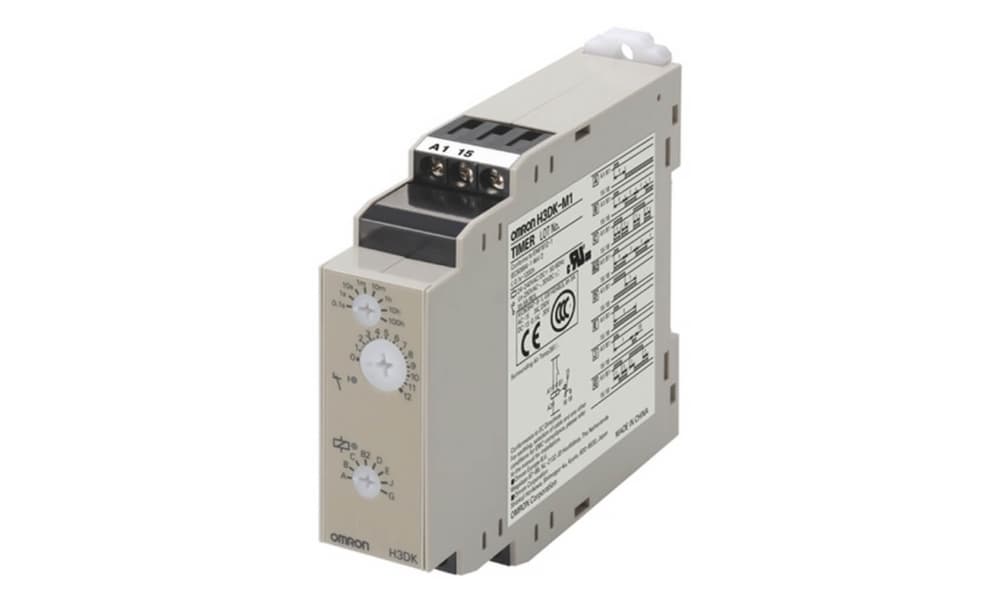

Omron H3DK-M1 24-240VAC/DC, H3DK Series DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 1-Contact, 0.1 s → 1200h, SPDT

Name: Omron H3DK-M1 24-240VAC/DC, H3DK Series DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 1-Contact, 0.1 s → 1200h, SPDT
Brand: OMRON
SKU: H3DK-M1 24-240VAC/DC
Availability: OutOfStock

Part Number : H3DK-M1 24-240VAC/DC

Timer, DIN-rail mounting, multi range, multi mode timer, 8 modes incl. off-delay, 1 output relay, 24 to 240 VAC/DC

Availability: Sold out

Detailed Description
Specifications
Features

OMRON Timer Relay, 89.4 (H) x 22.5 (W) x 100mm (D), 5A Maximum Current - H3DK Series - H3DK-M1 AC/DC24-240

To make sure your machine control system is always spot on, opt for this timer relay from OMRON. It combines the function of a solid-state relay and a multifunction timer in one handy unit, kicking in after a pre-set delay when activated. For flexibility, you can adjust this delay by seconds, minutes or hours in a wide range from 0.1s right up to 1200h. This is ideal when you're working with sensitive robotic equipment. Built-in LED indicators show power and contact status, letting you check this device's condition in a flash.

Features & Benefits

• Multifunction design enables up to eight operating modes for versatility
• Maximum current of 5A for energy efficiency
• Mechanical lifespan of 10 million cycles lets you know it's hardwearing
• Resists shock and vibration to withstand challenging operations
• Works reliably in ambient temperatures from -20°C to +55°C

Applications

• Industrial process control
• Chemical plants
• Medical devices
• Pharmaceutical industry

How do I mount this relay?

You can mount this relay by clipping it to a DIN rail without the need to reach for your toolkit.

Brand	Omron
Supply Voltage	24 → 240V ac/dc
Mounting Type	DIN Rail
Mode of Operation	Flicker OFF Start, Flicker ON Start, Interval, OFF Delay, ON Delay, ON/OFF Delay, One Shot Output
Time Range	0.1 s → 1200h
Number of Contacts	1
Number of Timer Functions	Multi Function
Contact Configuration	SPDT
Time Increment	Hours, Minutes, Seconds
Maximum Current	5A
Maximum Voltage	30 V dc, 250V ac
Terminal Type	Screw
Switch Configuration	SPDT
Power Supply	Internal
Width	22.5mm
Minimum Voltage	24V
Depth	100mm
Maximum Operating Temperature	+55°C
Series	H3DK
Length	89.4mm

Timer, DIN-rail mounting, multi range, multi mode timer, 8 modes incl. off-delay, 1 output relay, 24 to 240 VAC/DC
