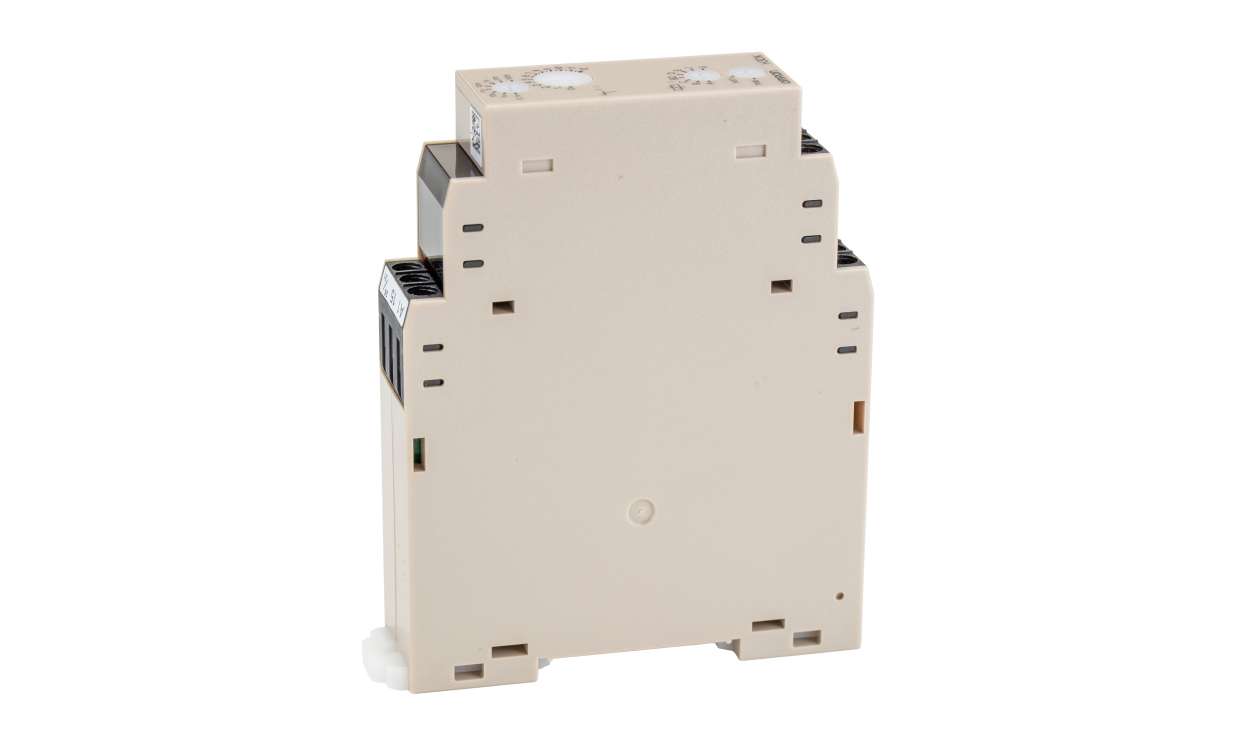

Omron H3DK-M2A DC12, H3DK Series DIN Rail Mount Timer Relay, 12V dc, 2-Contact, 0.1 s o 1200 h, DPDT

Name: Omron H3DK-M2A DC12, H3DK Series DIN Rail Mount Timer Relay, 12V dc, 2-Contact, 0.1 s o 1200 h, DPDT
Brand: OMRON
SKU: H3DK-M2A DC12
Availability: OutOfStock

Part Number : H3DK-M2A DC12

Availability: Sold out

Detailed Description
Specifications
Downloads

Omron H3DK Series Timer Relay, 12V DC Supply Voltage, 2 DPDT Contacts - H3DK-M2A DC12

This timer relay offers versatile functionality for automation needs. As part of the H3DK series, it is designed for DIN rail mounting and operates at a supply voltage of 12V DC. Compactly sized at 79mm x 100mm x 22.5mm, this device is adept at managing timing applications efficiently across various environments.

Features & Benefits

• Supports multiple operational modes for diverse applications
• Adjustable timer ranging from 0.1 seconds to 1200 hours
• Two DPDT contacts for versatile switching options
• External power supply for enhanced performance
• Designed to operate in temperatures from -20 °C to +55 °C
• Contact material includes Ag-alloy with gold plating for durability

Applications

• Ideal for automation in industrial machinery
• Utilised in electrical projects requiring precise timing
• Suitable for devices needing a delay in operation
• Employed in control circuits for process automation

What operational modes can be selected for this timer relay?

It features several modes including Flicker OFF Start, Flicker ON Start, OFF Delay, ON Delay, and One Shot Output to cater to various timing requirements.

How does the relay handle different time increments?

The timer enables adjustments in hours, minutes, and seconds, allowing precise control over timing settings, which is crucial for specific applications.

What is the maximum current capacity supported?

The relay supports a maximum current of 5A, making it suitable for controlling multiple devices without compromising performance.

Can it be used in a wide range of temperatures?

Yes, it is designed to function effectively within a temperature range of -20 °C to +55 °C, ensuring reliability in diverse conditions.

Brand	Omron
Supply Voltage	12V dc
Mounting Type	DIN Rail
Mode of Operation	ON Delay
Time Range	0.1 s o 1200 h
Number of Contacts	2
Number of Timer Functions	Multi Function
Contact Configuration	DPDT
Time Increment	Hours, Minutes, Seconds
Maximum Current	5A
Maximum Voltage	12V dc
Switch Configuration	DPDT
Terminal Type	Screw
Power Supply	External
Width	79mm
Minimum Voltage	12V
Depth	100mm
Minimum Current	0.1A
Maximum Operating Temperature	+55°C
Series	H3DK
