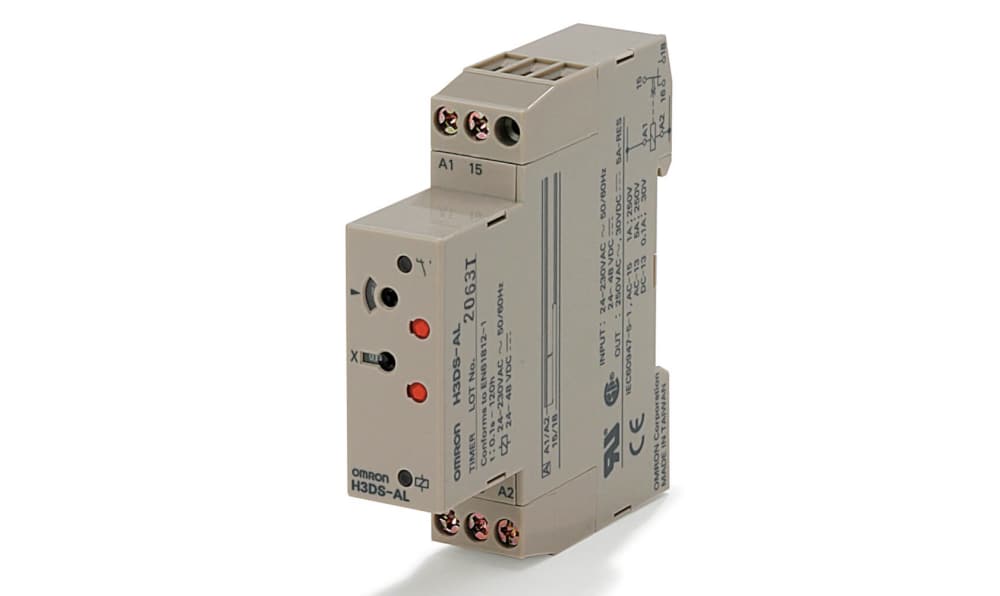

Omron H3DS-AL AC/DC, H3DS Series DIN Rail Mount Timer Relay, 24 → 230 V ac, 24 → 48V dc, 1-Contact, 0.1 s → 120h,

Name: Omron H3DS-AL AC/DC, H3DS Series DIN Rail Mount Timer Relay, 24 → 230 V ac, 24 → 48V dc, 1-Contact, 0.1 s → 120h,
Brand: OMRON
SKU: H3DS-AL AC/DC
Availability: OutOfStock

Part Number : H3DS-AL AC/DC

Timer, DIN rail mounting, 17.5 mm, 24-230 VAC/24-48 VDC, on-delay, 0.1 s-120 h, SPDT, 5 A, 'Smart Dial' lockable settings, no-input available, A single operating mode, screw terminal type

Availability: Sold out

Detailed Description
Specifications
Features
Downloads

OMRON Timer Relay, -10°C to +55°C Operating Temperature, 80 (L) x 17.5 (W) x 73mm (D) - H3DS Series - H3DS-AL AC/DC

Ensure your electronic control system runs like clockwork with this timer relay from OMRON. It's an ON-delay unit that pauses when it receives the input signal, only activating the circuit after a pre-set interval. With a time setting range between 0.1s and 120h, it's a versatile piece of equipment. Intuitive controls mean programming the time and scale is straightforward and you can lock the selectors to prevent tampering. You can rely on this relay to control your devices for the long haul thanks to its mechanical lifespan of 10 million operations.

Features & Benefits

• DIN rail mounting for hassle-free assembly
• Minimal measurements of 80 (L) x 17.5 (W) x 73mm (D) save installation space
• Screw terminals make installation easy and achieve a vibration-proof fix

Applications

• Food production
• Chemical plants
• Water treatment facilities

How do I check the status of this timer relay?

It has built-in LED indicators to show its contact and power status, meaning you can tell at a glance what it's doing.

How accurate is the relay?

Thanks to its maximum operating time accuracy of ±1%FS, you can be sure of reduced risk of errors with this product.

Approvals

UL, CSA

Brand	Omron
Supply Voltage	24 → 230 V ac, 24 → 48V dc
Mounting Type	DIN Rail
Mode of Operation	ON Delay
Time Range	0.1 s → 120h
Number of Contacts	1
Number of Timer Functions	Single
Contact Configuration	SPDT
Time Increment	Hours, Seconds
Maximum Current	5A
Maximum Voltage	30 V dc, 250V ac
Terminal Type	Screw
Switch Configuration	SPDT
Minimum Voltage	24V ac/dc
Width	17.5mm
Power Supply	External
Maximum Operating Temperature	+55°C
Depth	73mm
Length	80mm
Series	H3DS

Timer, DIN rail mounting, 17.5 mm, 24-230 VAC/24-48 VDC, on-delay, 0.1 s-120 h, SPDT, 5 A, 'Smart Dial' lockable settings, no-input available, A single operating mode, screw terminal type

Omron H3DS-AL AC/DC, H3DS Series DIN Rail Mount Timer Relay, 24 → 230 V ac, 24 → 48V dc, 1-Contact, 0.1 s → 120h,
