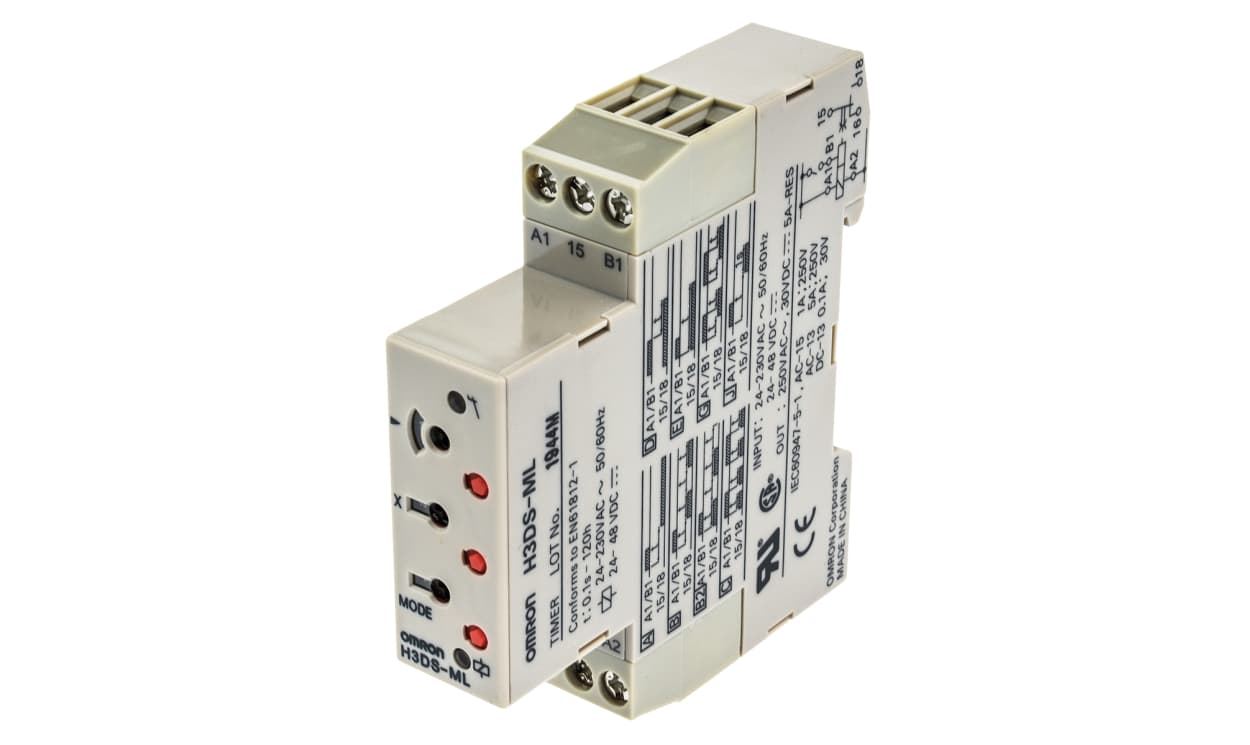

Name: Omron H3DS-ML AC/DC, EF7616. Series DIN Rail Mount Timer Relay, 24 → 230 V ac, 24 → 48V dc, 1-Contact, 0.1 s →
Brand: OMRON
SKU: H3DS-ML AC/DC
Availability: OutOfStock

Part Number : H3DS-ML AC/DC

Timer, DIN rail mounting, 17.5 mm, 24-230 VAC/24-48 VDC, multifunction, 0.1 s-120 h, SPDT, 5 A, 'Smart Dial' lockable settings

Availability: Sold out

Detailed Description
Specifications
Features

OMRON Timer Relay, 7 Operating Modes, 5A Maximum Current - EF7616. Series - H3DS-ML AC/DC

Set your device control to the millisecond with this timer relay from OMRON. You can adjust its functions between seven different operating modes, so it's a versatile multitasker. A setting range between 0.1s and 120h lets you adjust the time delay by the second, minute and hour to suit your preference. The unit has two built-in LED indicators that show its power and relay status so you can check on it in a flash. With built-in resistance to shock and vibration, this relay remains stable even when things get shaky.

Features & Benefits

• Maximum operating time accuracy of ±1% of FS for reliable performance
• Quick time delay of 0.1s for rapid reset
• Reliable performance in harsh environments thanks to an operating temperature range of -10°C to +55°C

Applications

• Agricultural equipment
• Bottling plants
• Process control
• HVAC systems

How durable is this relay?

A lengthy mechanical life expectancy of 10 million operations tells you this is a reliable option for long-term processes in your machinery.

How do I mount this relay?

You can mount it in a jiffy by clipping it onto a DIN rail.

Approvals

UL, CSA

Brand	Omron
Supply Voltage	24 → 230 V ac, 24 → 48V dc
Mounting Type	DIN Rail
Mode of Operation	Flicker OFF Start, Flicker ON Start, Interval, OFF Delay, ON Delay, ON/OFF Delay, One Shot Output
Time Range	0.1 s → 120h
Number of Contacts	1
Number of Timer Functions	Multi Function
Contact Configuration	SPDT
Time Increment	Hours, Seconds
Maximum Current	5A
Maximum Voltage	30 V dc, 250V ac
Terminal Type	Screw
Switch Configuration	SPDT
Minimum Voltage	24V ac/dc
Power Supply	External
Width	17.5mm
Depth	73mm
Maximum Operating Temperature	+55°C
Length	80mm
Series	EF7616.

Timer, DIN rail mounting, 17.5 mm, 24-230 VAC/24-48 VDC, multifunction, 0.1 s-120 h, SPDT, 5 A, 'Smart Dial' lockable settings
