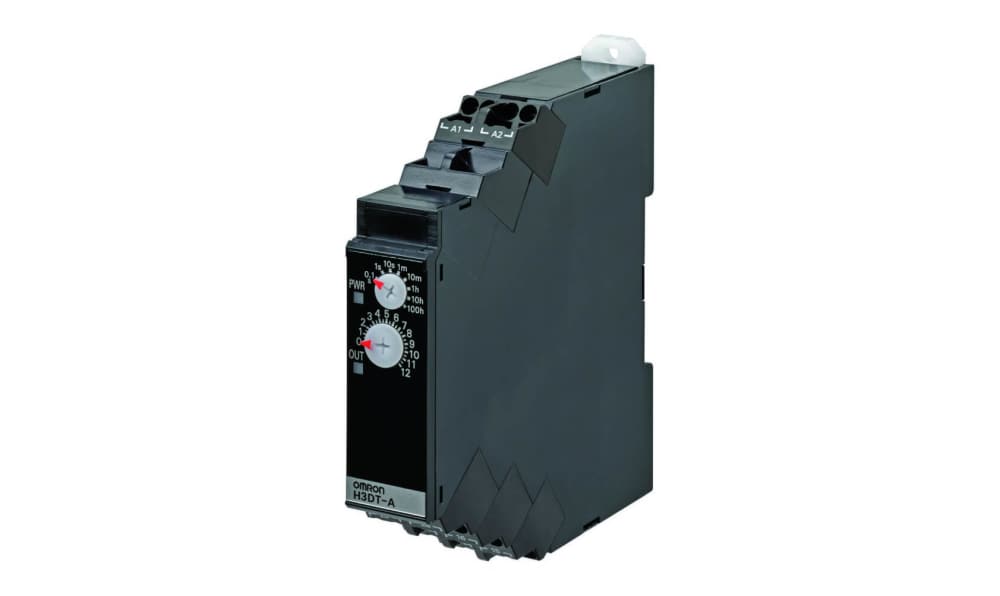

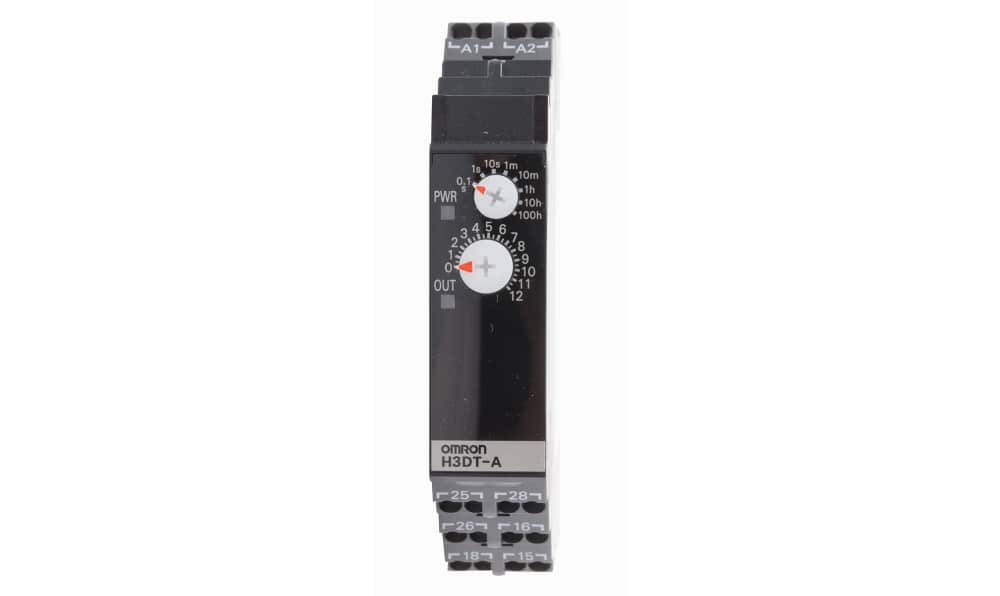

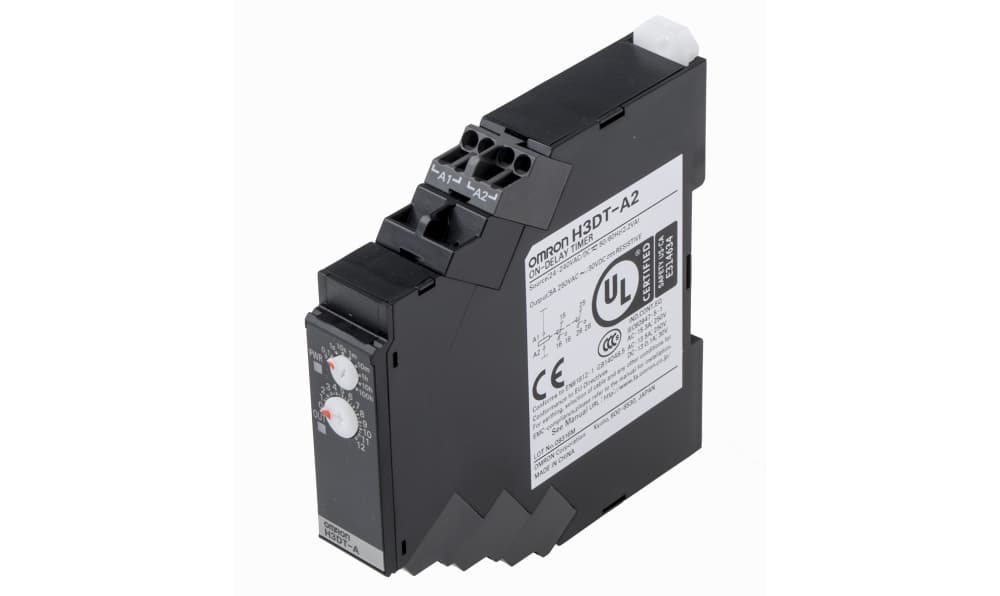

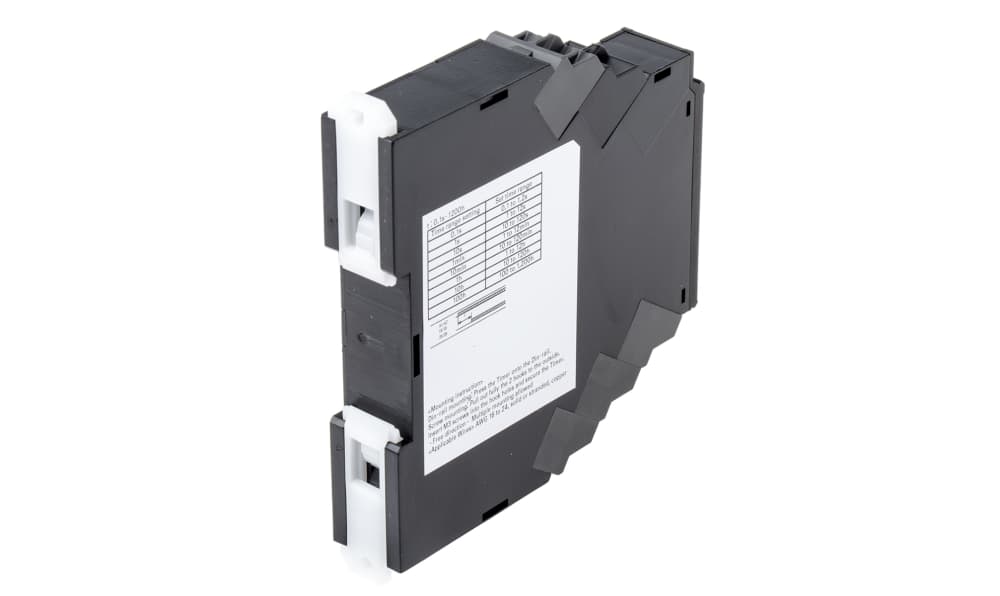

Name: Omron H3DT-A2 24-240VAC/DC, H3DT Series DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 4-Contact, 0.1 s → 1200 h, 1-Function, DPDT
Brand: OMRON
SKU: H3DT-A2 24-240VAC/DC
Availability: OutOfStock

Omron H3DT-A2 24-240VAC/DC, H3DT Series DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 4-Contact, 0.1 s → 1200 h, 1-Function, DPDT

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron H3DT-A2 24-240VAC/DC, H3DT Series DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 4-Contact, 0.1 s → 1200 h, 1-Function, DPDT

Part Number : H3DT-A2 24-240VAC/DC

Availability: Sold out

Detailed Description
Specifications

Omron H3DT Series Timer Relay, 24 to 240V AC/DC Supply Voltage, DPDT Contact Configuration - H3DT-A2

This timer relay is designed for control applications in automation and electrical systems, functioning primarily as an ON Delay Timer Relay. It supports timing operations in various industrial settings. Its slim DIN Rail design facilitates easy installation in control panels, providing an efficient solution for space and energy saving.

Features & Benefits

• Dual set of contacts for flexible control options
• External power supply for enhanced reliability and performance
• Push In terminal type for quick and secure connections
• Complies with maritime standards for improved durability

Applications

• Intricate timing controls in industrial automation
• Processes requiring delayed start functions
• Systems needing precise time management for operations
• Electrical control panels for efficiency

What power supply options are compatible with this device?

It accepts an external power supply voltage from 24V to 240V AC/DC, ensuring compatibility in various applications.

How can I adjust the timing settings for specific applications?

Timing adjustments can be made via the dial, allowing for accurate settings within its range.

What is the significance of having DPDT contacts?

The dual pole double throw (DPDT) configuration provides versatile switching capabilities, suitable for complex control systems.

Brand	Omron
Supply Voltage	24 → 240V ac/dc
Mounting Type	DIN Rail
Mode of Operation	ON Delay
Time Range	0.1 s → 1200 h
Number of Contacts	4
Number of Timer Functions	Single
Contact Configuration	DPDT
Time Increment	Hours, Minutes, Seconds
Maximum Current	5A
Maximum Voltage	240V ac/dc
Terminal Type	Push In
Switch Configuration	DPDT
Power Supply	External
Minimum Voltage	24V ac/dc
Width	90mm
Maximum Operating Temperature	+60°C
Series	H3DT
Depth	100mm
Length	17.5mm
