Omron H3DT-L1 24-240VAC/DC, H3DT Series DIN Rail Mount Timer Relay, 24 → 240V ac/dc, 2-Contact, 0.1 s → 1200 h, SPDT

Part Number : H3DT-L1 24-240VAC/DC

Availability: Sold out

Detailed Description
Specifications

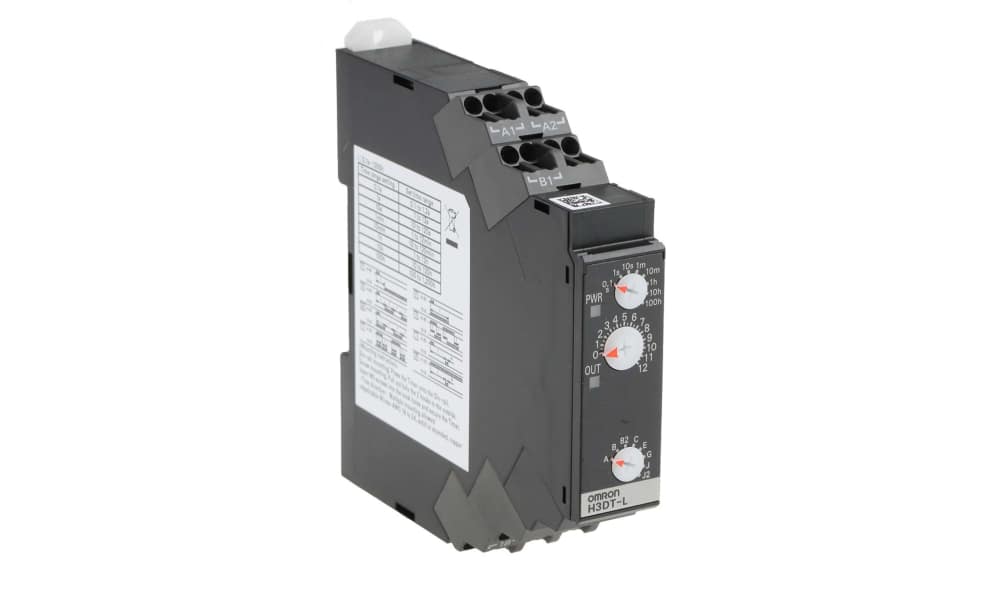

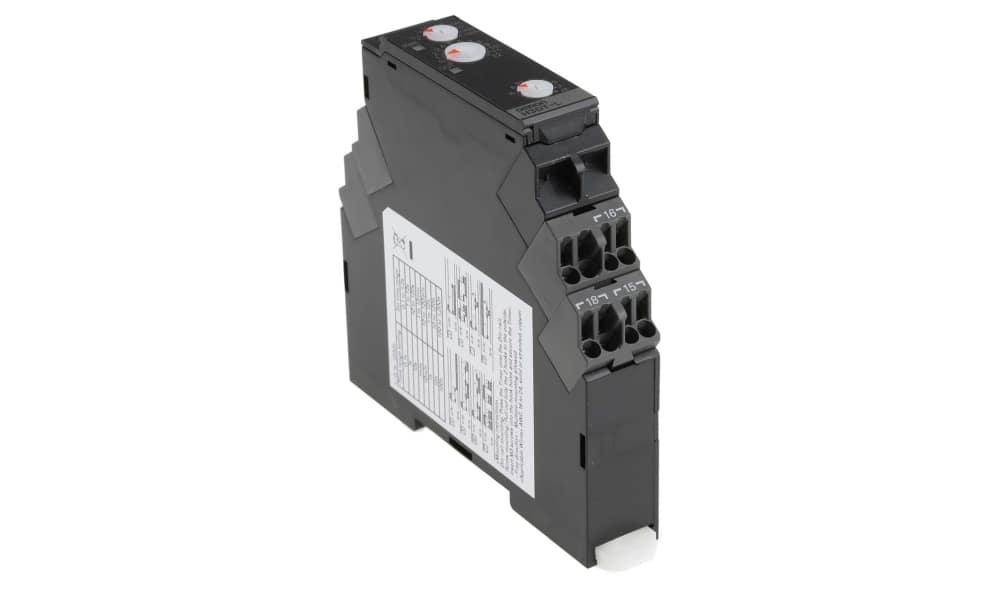

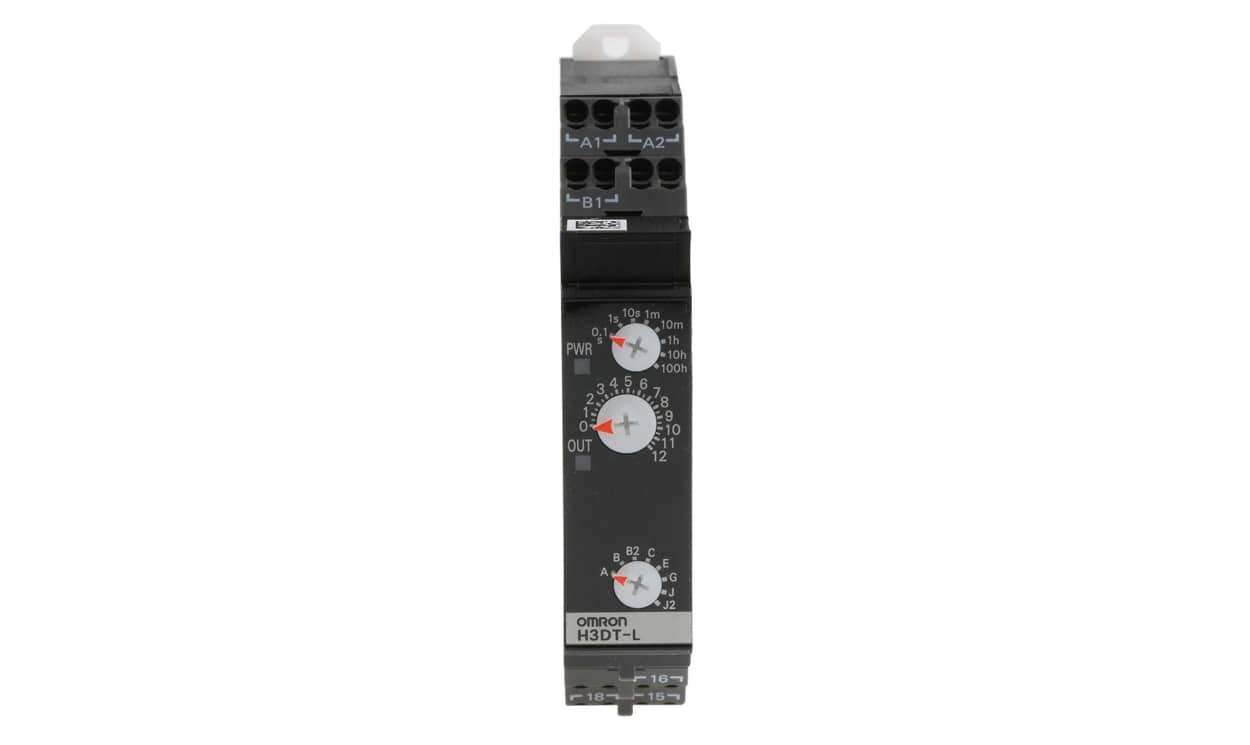

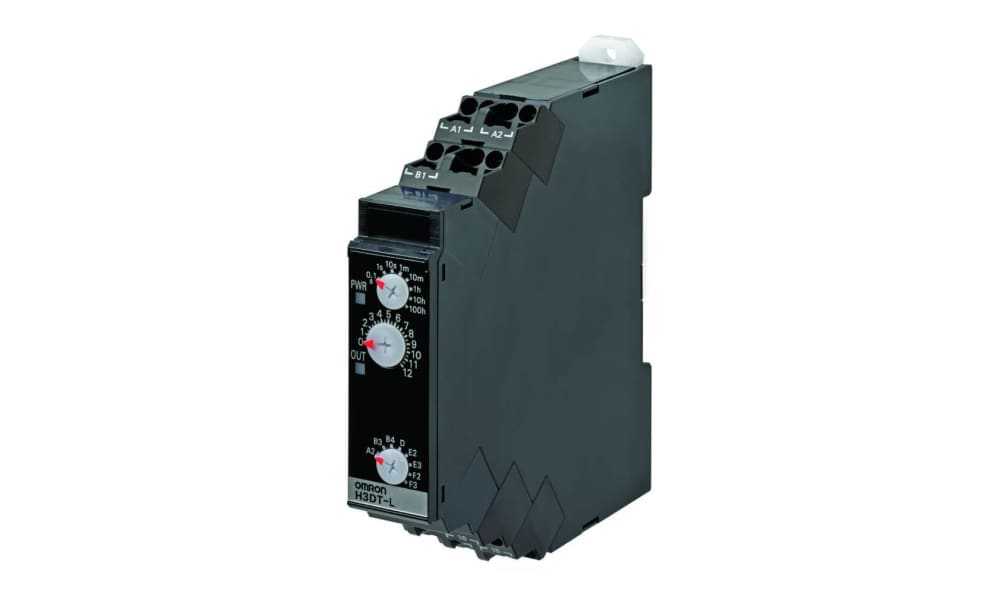

Omron H3DT Series Timer Relay, 24 to 240 V AC/DC Supply Voltage, 2 Contacts - H3DT-L1

This timer relay is an essential component for automation and control systems in various industrial applications. Designed for DIN Rail mounting, it operates within a wide supply voltage range of 24 to 240V AC/DC, facilitating versatile use in different environments. With dimensions of 90mm in width, 100mm in depth, and 17.5mm in length, it ensures efficient space utilisation while incorporating advanced timing functionalities.

Features & Benefits

• Offers multi-function operation for diverse timing needs
• Supports time ranges from 0.1 seconds to 1200 hours
• SPDT contact configuration allows versatile relay switching
• Incorporates user-friendly push-in terminal connections
• Functions effectively within a maximum temperature of +60 °C
• Compatible with an external power supply for flexible installations

Applications

• Utilised in industrial automation for precise timing controls
• Implemented in lighting control systems for delayed switching
• Suitable for machinery monitoring and control tasks
• Used for sequence control in processing equipment

What range of operational voltages can be accommodated?

It operates between 24 and 240V AC/DC, making it adaptable for various applications throughout the industry.

How does the multi-functionality enhance usability?

The multi-function capabilities allow users to select different operational modes, such as delay ON and interval timings, catering to diverse operational requirements.

What is the maximum load this relay can handle?

The maximum current capacity is 5A, enabling reliable performance in controlling connected loads while adhering to safety standards.

Is this product suitable for extensive temperature conditions?

Yes, it can function effectively in environments with temperatures ranging from -20 °C to +60 °C, ensuring robust performance in diverse conditions.

Brand	Omron
Supply Voltage	24 → 240V ac/dc
Mounting Type	DIN Rail
Mode of Operation	Delay ON, Delay ON/OFF, Flicker OFF Start, Flicker ON Start, Interval, One Shot
Time Range	0.1 s → 1200 h
Number of Contacts	2
Number of Timer Functions	Multi Function
Contact Configuration	SPDT
Time Increment	Hours, Minutes, Seconds
Maximum Current	5A
Maximum Voltage	240V
Switch Configuration	SPDT
Terminal Type	Push In
Width	90mm
Power Supply	External
Minimum Voltage	24V
Length	17.5mm
Series	H3DT
Maximum Operating Temperature	+60°C
Depth	100mm
