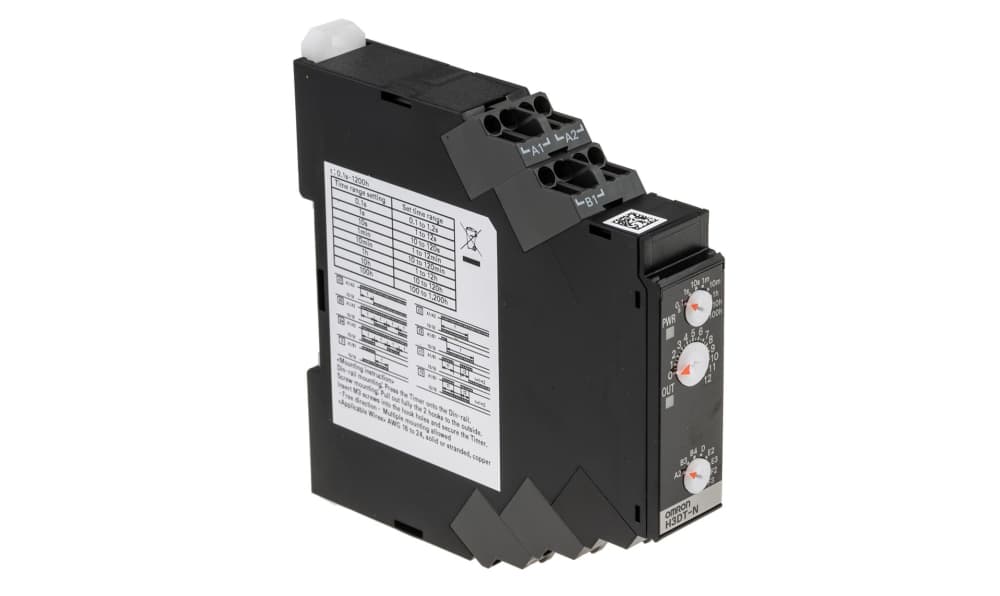

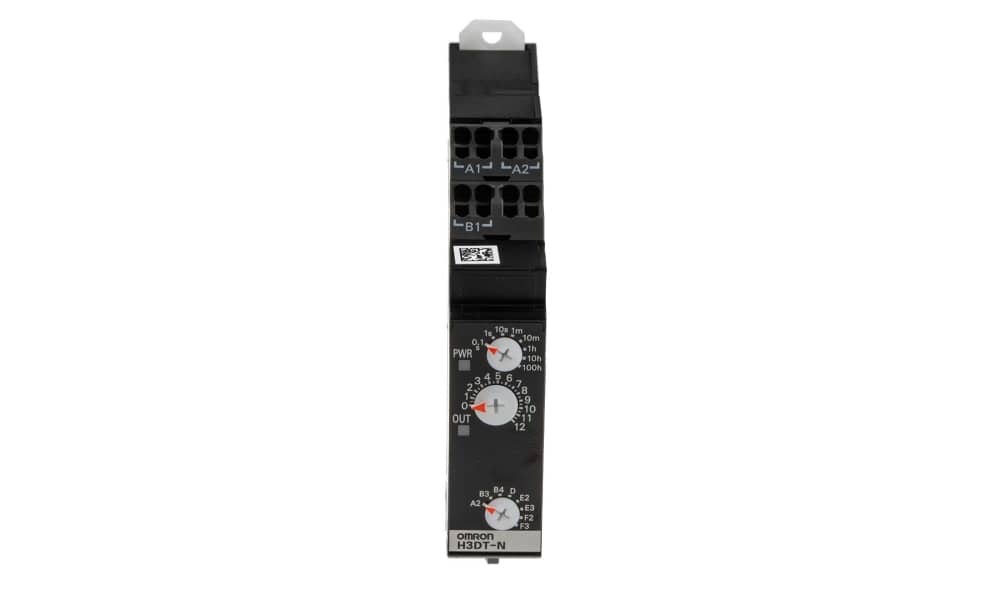

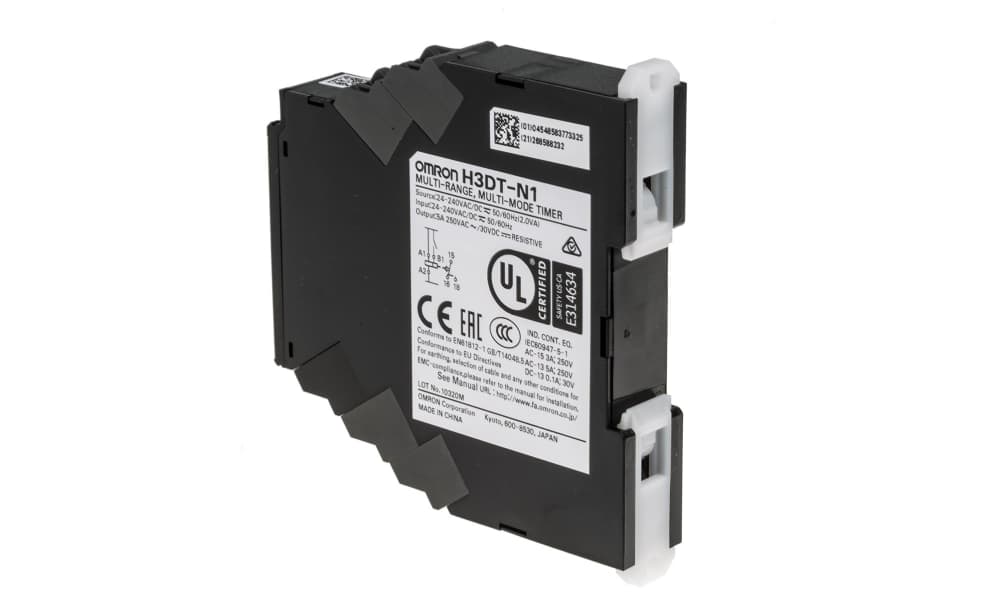

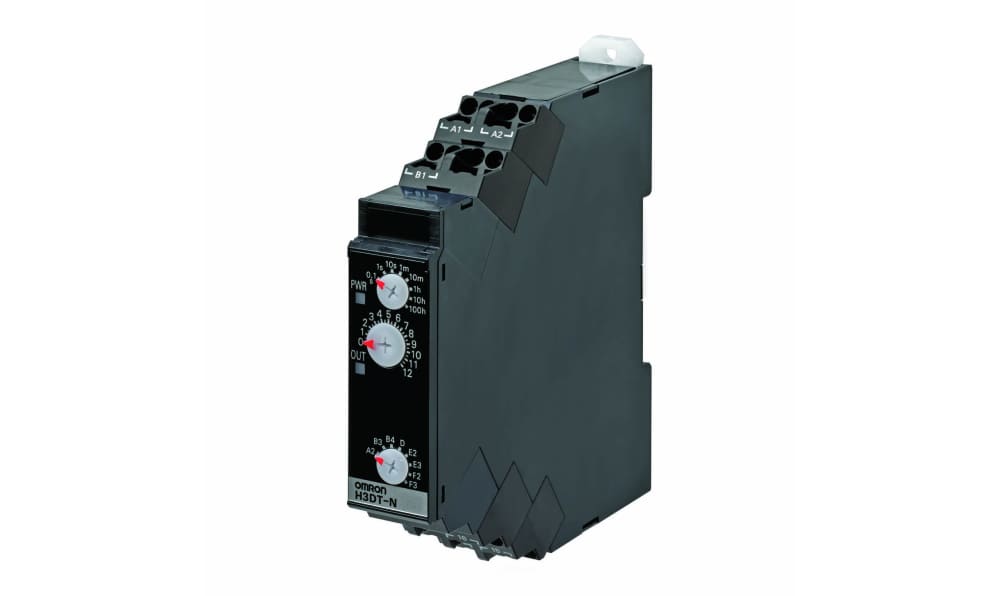

Omron H3DT Series Timer Relay, SPDT Contact Configuration, 0.1s to 100h Time Range - H3DT-N1

This timer relay is designed for various automation and control applications, providing accurate timing functionality. It operates effectively in both AC and DC environments, making it adaptable to a range of industrial needs. Users can utilise it for delay operations, flickering timings, and multi-functional tasks, thereby enhancing the efficiency of electrical systems.

Features & Benefits

• Supports a wide supply voltage range of 24 to 240V
• Multi-function operations allow for a variety of applications
• Configured as SPDT for flexible wiring options
• Time range adjustable from 0.1 seconds to 100 hours
• Designed for easy integration with external power supplies
• Durable silver alloy contacts provide consistent performance

Applications

• Timing controls in manufacturing processes
• Ideal for automation systems requiring precise timing
• Commonly used in HVAC systems for delay functions
• Utilised in safety circuits to manage operational timings
• Effective for lighting controls to create flickering effects

What type of external power supply do I need?

It requires an external supply voltage within the range of 24 to 240V AC/DC for operation.

How can the timing functions be adjusted?

The timing can be adjusted via specific settings according to your operational requirements, ranging from 0.1 seconds to 100 hours.

Is this device suitable for both AC and DC applications?

Yes, it is designed to function effectively in both AC and DC environments.

How do I mount it in my control panel?

This model is designed for DIN rail mounting, ensuring straightforward and organised installation within your system.

Brand	Omron
Supply Voltage	24 → 240V ac/dc
Mounting Type	DIN Rail
Mode of Operation	Delay OFF, Delay ON, Flicker OFF Start, Flicker ON Start, Interval
Time Range	0.1 s → 100h
Number of Contacts	2
Number of Timer Functions	Multi Function
Contact Configuration	SPDT
Time Increment	Hours, Minutes, Seconds
Maximum Current	5A
Maximum Voltage	30 V dc, 250V ac
Terminal Type	Screw
Switch Configuration	SPDT
Width	90mm
Power Supply	External
Minimum Voltage	24V
Length	17.5mm
Series	H3DT
Maximum Operating Temperature	+60°C
Depth	100mm
