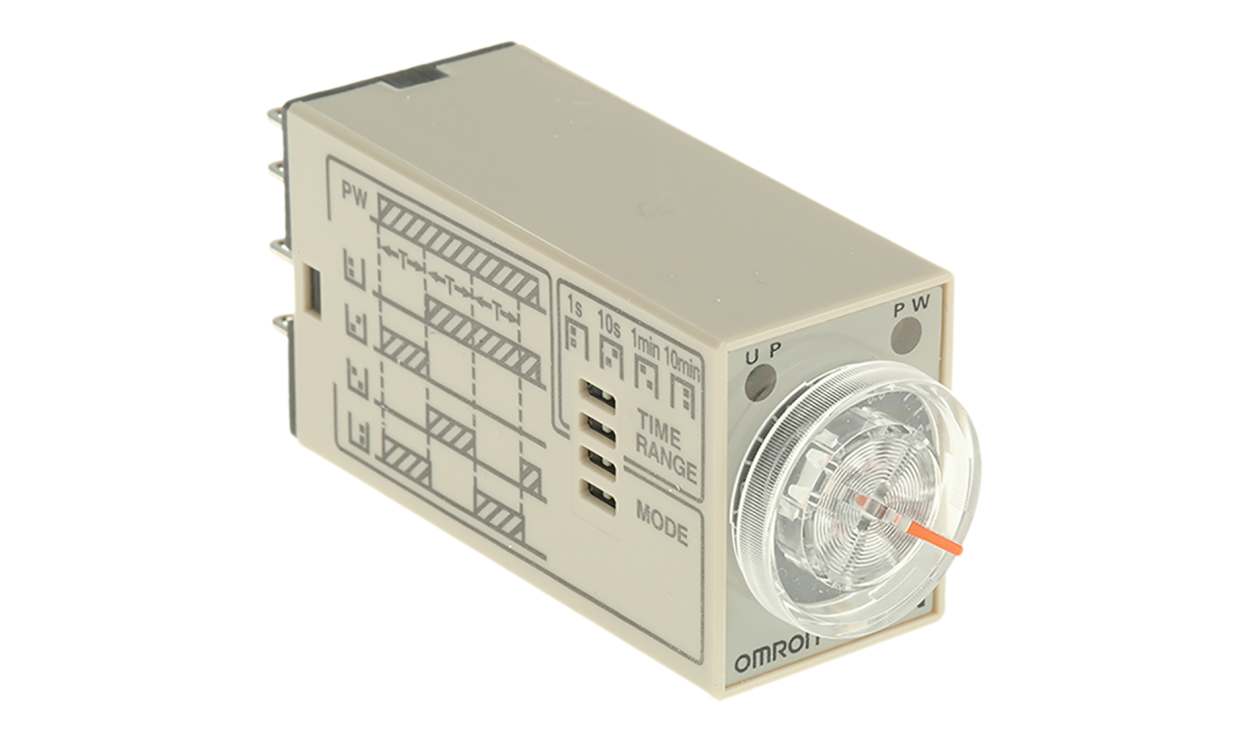

Name: Omron H3YN-2 AC24, H3YN Series DIN Rail, Panel Mount Timer Relay, 24V ac, 2-Contact, 0.1 s → 10min
Brand: OMRON
SKU: H3YN-2 AC24
Availability: OutOfStock

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron H3YN-2 AC24, H3YN Series DIN Rail, Panel Mount Timer Relay, 24V ac, 2-Contact, 0.1 s → 10min

Part Number : H3YN-2 AC24

Availability: Sold out

Detailed Description
Specifications

Omron H3YN Series Timer Relay, +50 °C Maximum Operating Temperature, Panel Mount - H3YN-2 AC24

This timer relay by Omron is designed with a depth of 63mm and a length of 28mm, making it a versatile and efficient solution for various applications. It offers reliable performance and precise timing capabilities.

Features & Benefits

• Maximum current of 5A ensures compatibility with a wide range of devices
• Maximum operating temperature of +50 °C allows for reliable operation in different environments
• Switch configuration of DPDT for versatile control options
• External power supply for added flexibility in setup
• Time delay range from 0.1 s to 10 min for precise timing requirements

Applications

• Ideal for automation systems requiring accurate timing
• Suitable for electrical applications where precise switching is needed

Can it handle a maximum current of 5A?

Yes, the Omron timer relay is capable of handling a maximum current of 5A.

Will it operate in environments with a temperature of -10 °C?

Yes, the timer relay can operate in environments with temperatures as low as -10 °C.

Is the time delay range adjustable?

Yes, the time delay range of the timer relay can be adjusted from 0.1 s to 10 min.

Brand	Omron
Supply Voltage	24V ac
Mounting Type	DIN Rail, Panel Mount
Mode of Operation	Flicker OFF Start, Flicker ON Start, Interval, ON Delay
Time Range	0.1 s → 10min
Number of Contacts	2
Number of Timer Functions	Multi Function
Time Increment	Minutes, Seconds
Maximum Current	5A
Maximum Voltage	250V ac
Terminal Type	Socket
Switch Configuration	DPDT
Minimum Voltage	24V ac
Power Supply	External
Width	21.5mm
Series	H3YN
Depth	63mm
Length	28mm
Maximum Operating Temperature	+50°C
Time Delay	0.1s
