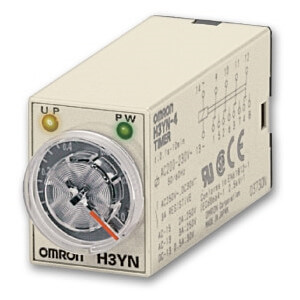

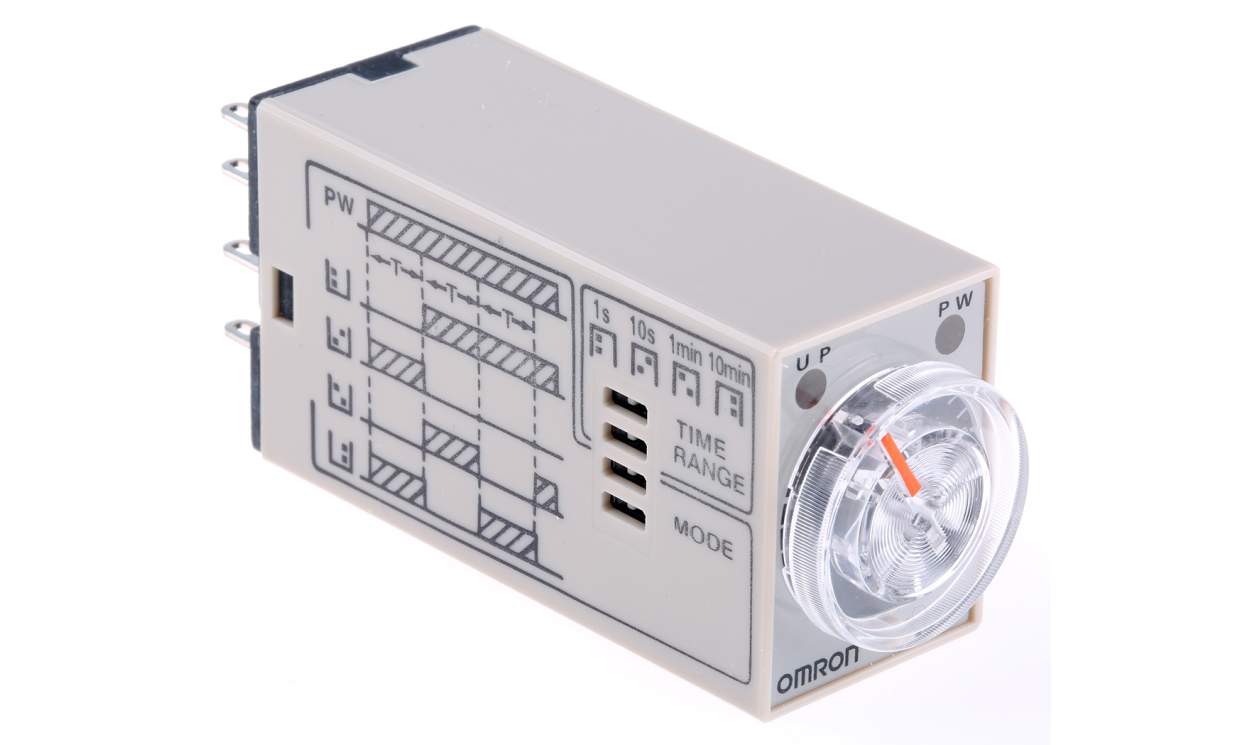

Omron H3YN-4 AC200-230, H3YN Series DIN Rail, Panel Mount Timer Relay, 200 → 230V ac, 4-Contact, 0.1 s → 10min

Name: Omron H3YN-4 AC200-230, H3YN Series DIN Rail, Panel Mount Timer Relay, 200 → 230V ac, 4-Contact, 0.1 s → 10min
Brand: OMRON
SKU: H3YN-4 AC200-230
Availability: OutOfStock

Part Number : H3YN-4 AC200-230

Timer, plug-in, 14-pin, multifunction, 0.1s to 10 min short time range model, 4PDT, 200-230 VAC supply voltage

Availability: Sold out

Detailed Description
Specifications
Features

Omron H3YN Timer Relay, 4PDT, DIN Rail Panel Mount - H3YN-4 AC200-230

This is a solid-state timer designed for various control applications. It operates with a supply voltage of 200-230 VAC at 50/60 Hz. This timer offers a 4PDT output configuration and supports multiple operating modes, including ON delay, interval, flicker OFF start, and flicker ON start. Its compact design, measuring 14-pin, ensures efficient space utilization in control panels. The H3YN-4 AC200-230 provides reliable timing functions for industrial processes

Features & Benefits

• The timer provides a 4PDT output configuration allowing flexible control in different applications
• The H3YN-4 supports ON delay, interval, flicker OFF start, and flicker ON start modes lets users choose the most appropriate timing mode for their specific requirements
• The timer covers a time range from 0.1 to 1 second (across 4 ranges) accommodating precise timing needs, from short intervals to longer delays
• The timer has an electrical life expectancy of 200,000 operations (3 A at 250 VAC, resistive load)

Applications

• Control conveyor belt movement, ensuring efficient material handling
• Manage pump cycles for water supply, drainage, or chemical processes
• Time lighting circuits for energy-saving purposes
• Coordinate actions in production lines, packaging, and assembly

Can I use the H3YN-4 AC200-230 for short-duration processes?

Yes, the timer’s time range includes intervals as short as 0.1 second.

Is the H3YN-4 suitable for high-voltage applications?

Yes, it operates at 200 to 230 VAC, making it suitable for industrial voltage levels.

Can I reset the timer during its operation?

Yes, the reset voltage is up to 10% of the rated supply voltage.

Brand	Omron
Supply Voltage	200 → 230V ac
Mounting Type	DIN Rail, Panel Mount
Mode of Operation	Flicker OFF Start, Flicker ON Start, Interval, ON Delay
Time Range	0.1 s → 10min
Number of Contacts	4
Number of Timer Functions	Multi Function
Time Increment	Minutes, Seconds
Maximum Current	3A
Maximum Voltage	230V ac
Terminal Type	Socket
Switch Configuration	4PDT
Minimum Voltage	200V ac
Width	21.5mm
Power Supply	External
Maximum Operating Temperature	+50°C
Length	28mm
Depth	63mm
Series	H3YN
Minimum Operating Temperature	-10°C

Timer, plug-in, 14-pin, multifunction, 0.1s to 10 min short time range model, 4PDT, 200-230 VAC supply voltage
