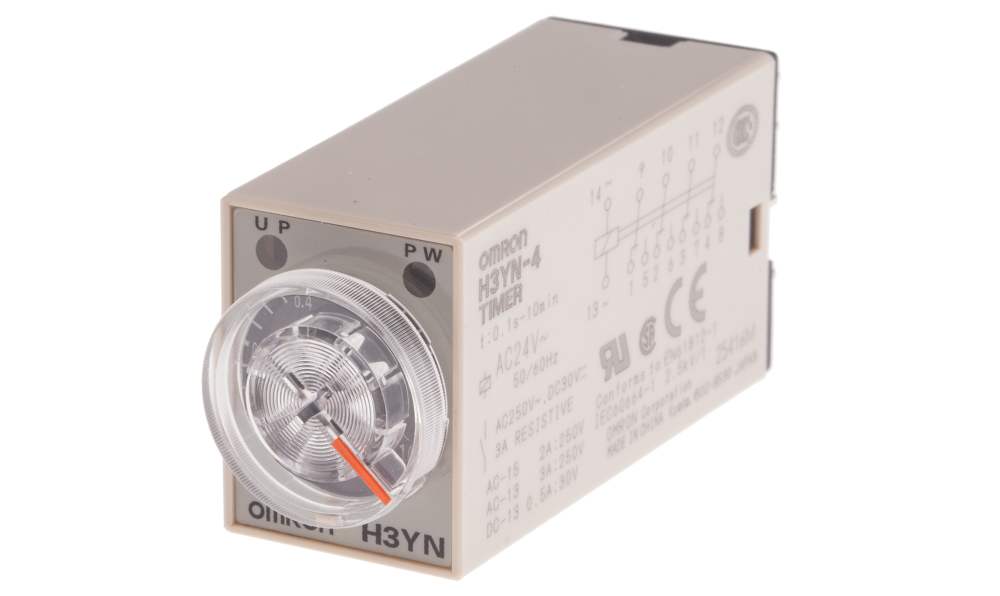

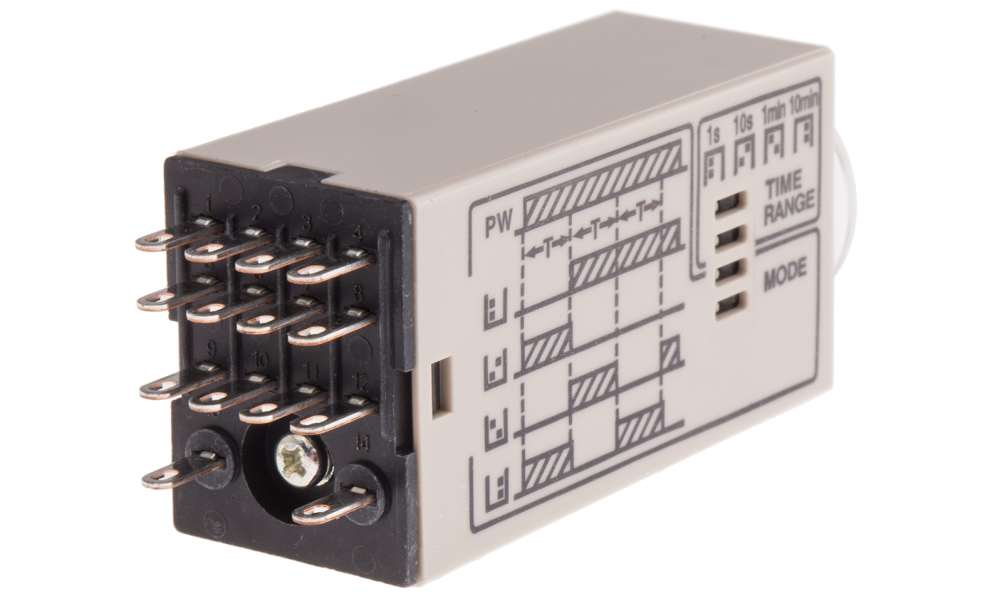

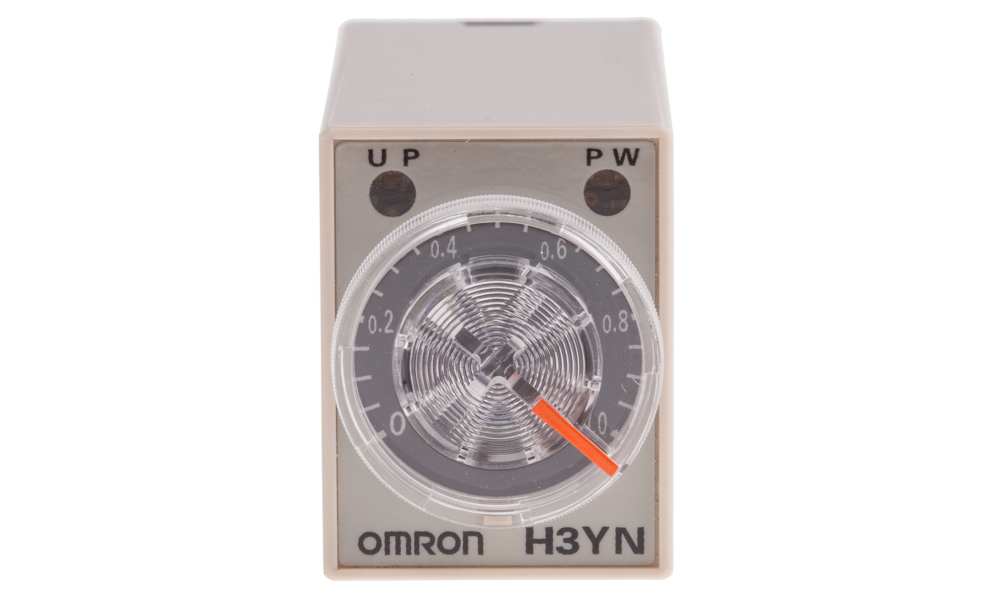

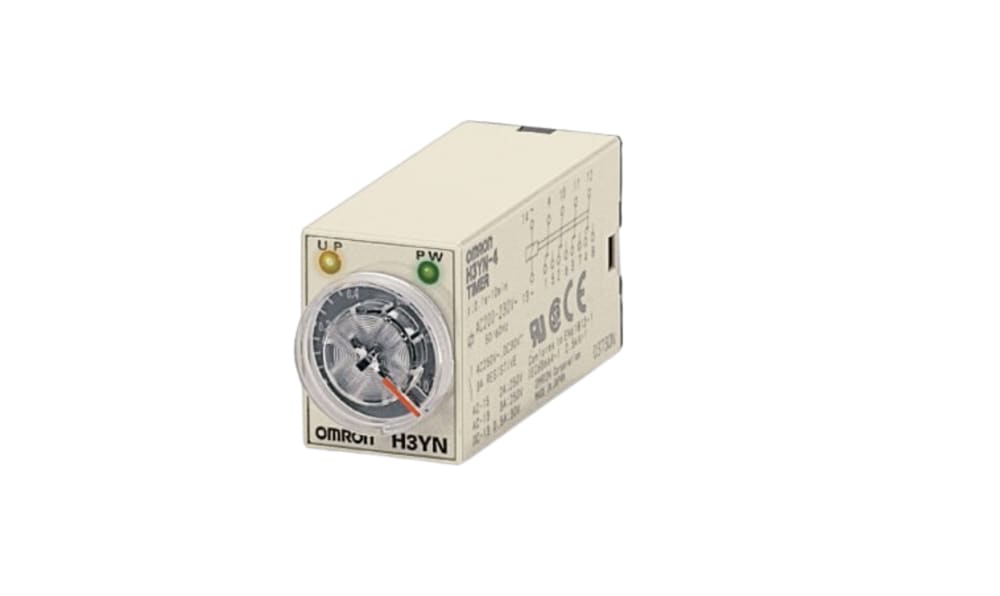

Name: Omron H3YN-4 AC24, H3YN Series DIN Rail, Panel Mount Timer Relay, 24V ac, 4-Contact, 0.1 s → 10min
Brand: OMRON
SKU: H3YN-4 AC24
Availability: OutOfStock

Omron H3YN-4 AC24, H3YN Series DIN Rail, Panel Mount Timer Relay, 24V ac, 4-Contact, 0.1 s → 10min

Client Protection

Dedicated Support

Client Protection

Dedicated Support

Omron H3YN-4 AC24, H3YN Series DIN Rail, Panel Mount Timer Relay, 24V ac, 4-Contact, 0.1 s → 10min

Part Number : H3YN-4 AC24

Availability: Sold out

Detailed Description
Specifications

Omron H3YN Series Timer Relay, 24V AC Supply Voltage, 4PDT Switch Configuration - H3YN-4 AC24

This timer relay is designed for various applications in automation and control systems. The compact device features a DIN rail and panel mount design, making installation convenient in different environments. With its versatile operational modes and time range capabilities, this timer is essential for precise timing tasks.

Features & Benefits

• Multi-function capability allows selection of multiple operating modes
• Time range selectable from 0.1 seconds to 10 minutes
• Features flicker start options for customised operations
• External power supply ensures stable performance under varying loads
• Compact dimensions allow for effective space-saving in installations

Applications

• Used for controlling electrical loads in industrial environments
• Ideal for requiring precise timing sequences
• Suitable for automation systems needing reliable on-delay timing
• Used in timer circuits to manage flicker start operations
• Integrates with other devices for enhanced control and automation systems

How does the selectable time range enhance operational flexibility?

The selectable time range allows precise control of the timing intervals needed for various applications, ensuring efficient operation tailored to specific tasks.

In what scenarios is the flicker start mode particularly useful?

The flicker start mode is beneficial in situations where transient signals or oscillatory behaviours are needed, allowing devices to operate in a desired pattern without disrupting normal function.

What are the installation options for this device?

This unit can be easily mounted on both DIN rails and panels, providing flexibility in configuration to suit different installation environments.

How can this timer relay contribute to energy efficiency?

By allowing precise timing control, it prevents unnecessary operation of equipment, thus contributing to reduced energy consumption and operational costs.

What precautions should be considered during installation?

It is crucial to ensure that the installation environment is free from excessive dust or corrosive gases and to maintain an appropriate distance from other devices to allow for effective heat dissipation.

Brand	Omron
Supply Voltage	24V ac
Mounting Type	DIN Rail, Panel Mount
Mode of Operation	Flicker OFF Start, Flicker ON Start, Interval, ON Delay
Time Range	0.1 s → 10min
Number of Contacts	4
Number of Timer Functions	Multi Function
Time Increment	Minutes, Seconds
Maximum Current	3A
Maximum Voltage	250V ac
Terminal Type	Socket
Switch Configuration	4PDT
Power Supply	External
Width	21.5mm
Depth	63mm
Series	H3YN
Maximum Operating Temperature	+50°C
Length	28mm
Minimum Operating Temperature	-10°C
Time Delay	0.1s
