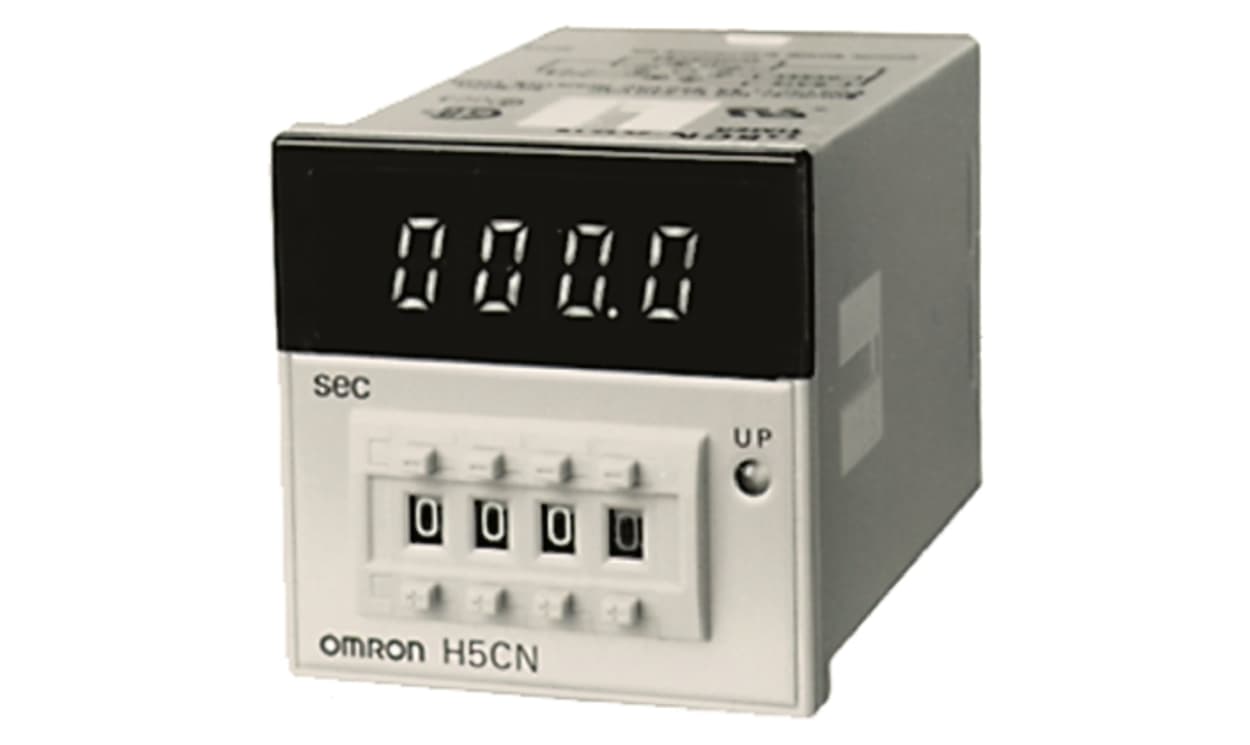

Omron H5CN-YCN AC100-240, H5CN Series DIN Rail, Panel Mount, Surface Mount Timer Relay, 100 → 240V ac, 1-Contact, 1s, 1-Function

Name: Omron H5CN-YCN AC100-240, H5CN Series DIN Rail, Panel Mount, Surface Mount Timer Relay, 100 → 240V ac, 1-Contact, 1s, 1-Function
Brand: OMRON
SKU: H5CN-YCN AC100-240
Availability: OutOfStock

Part Number : H5CN-YCN AC100-240

Availability: Sold out

Detailed Description
Specifications

Ultra Compact Digital Timer - H5CX Series

H5CX Series of ultra-compact digital timers provide advanced functions and security settings to suit your timing needs.

Features and Benefits

• 12 mm character height
• Shorter body depth
• Three-colour display value, red, green or orange
• Up/Down keys for each digit
• Twin timer and variable ON/OFF duty modes
• Service life notification - the number of times that the control output turns ON is counted and an alarm is displayed when a preset count is exceeded
• Setting upper limit prevents unwanted operation
• Isolated power supply and input circuits (Prevent unwanted circuit paths) on 100-240 V ac versions
• 0.0001 s to 9999 h, 10 ranges
• Input NPN, PNP and contact

Brand	Omron
Supply Voltage	100 → 240 V ac, 24V ac
Mounting Type	DIN Rail, Panel Mount, Surface Mount
Mode of Operation	ON Delay
Time Range	1 s → 99 min 59s
Number of Contacts	1
Number of Timer Functions	Single
Time Increment	Minutes, Seconds
Maximum Current	3A
Maximum Voltage	250V ac
Switch Configuration	SPDT
Terminal Type	8-Pin Connector
Width	48mm
Minimum Voltage	5V dc
Power Supply	External
Maximum Operating Temperature	+55°C
Length	48mm
Minimum Current	10mA
Depth	97.4mm
Series	H5CN
